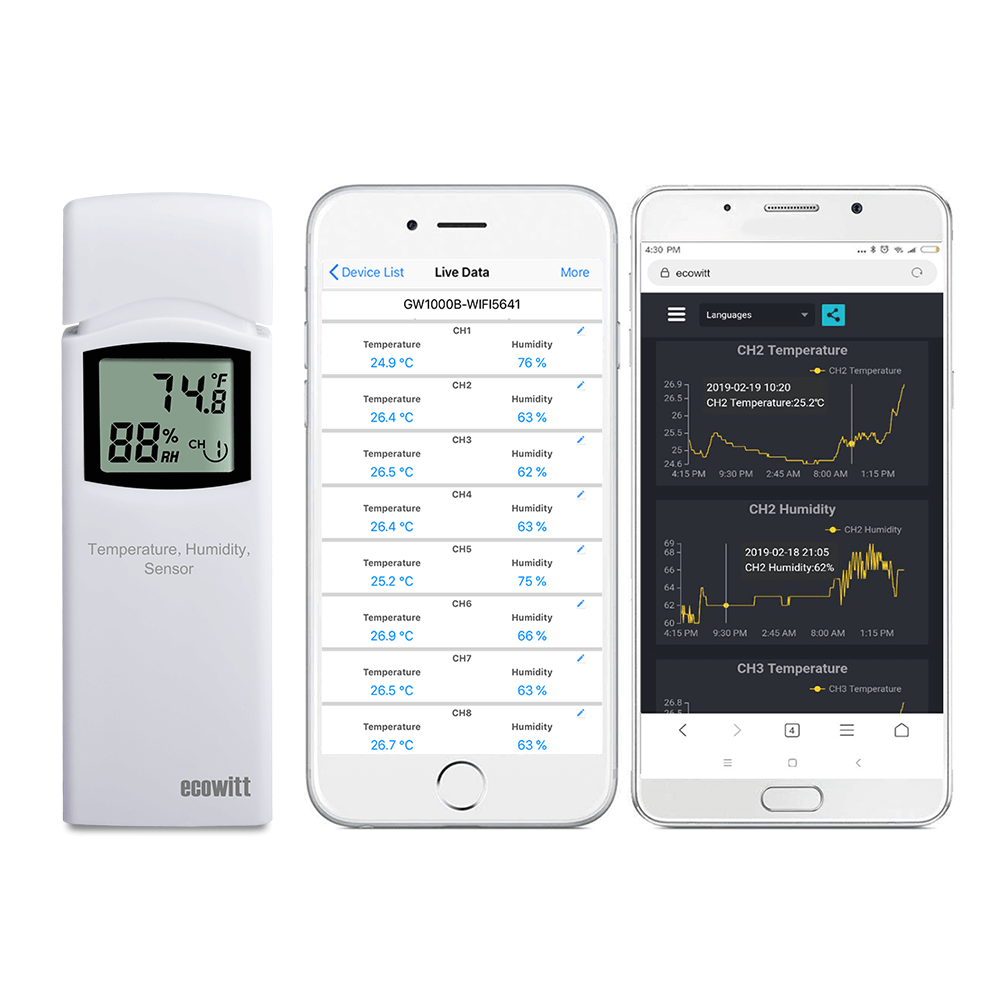

Ecowitt WN31 Temperature & Humidity Sensor, 8 Channel

Regular price
£19.00
Sale price
£19.00
Regular price
Tax included. Shipping calculated at checkout.
Radio Frequency:
ecowitt-rs0001-sensor-shelter
{"id":7704674074840,"title":"Ecowitt RS0001 Sensor Shelter","handle":"ecowitt-rs0001-sensor-shelter","description":"\u003cul\u003e\u003c\/ul\u003e\n\u003cp\u003eThis sensor shield is designed to protect your temperature or lightning sensor from mainly rain and also sun whilst allowing airflow through the shield to improve the accuracy of daytime temperature and humidity readings.\u003c\/p\u003e\n\u003cp\u003eSuitable for mounting on an appropriate pole, or can also be mounted on a flat surface with the included fixings.\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eSize information:\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003eShield length: 15.5cm; External diameter: 7.3cm; Internal diameter: 4.3cm\u003c\/p\u003e\n\u003cp\u003eMounting arm length: 17.2cm; mounting pole diameter:20mm\u003c\/p\u003e\n\u003cp\u003eCompatible sensors: Ecowitt WH31 and WH32 model Temperature and Humidity sensors, WH57 lightning sensor.\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eMultiple mounting options:\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003e1. Vertical installation\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/osswww.ecowitt.net\/uploads\/20201012\/dd55b58010af75d6b898e37fc3746362.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003e2. Mount onto a wall\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/osswww.ecowitt.net\/uploads\/20201012\/ee12903996cef095152b2b97d4916d72.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003e3. Mount to a pole(not included); maximum pole diameter:20mm\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/osswww.ecowitt.net\/uploads\/20201012\/6f2951c406ccb237259b178a5491f037.jpg\"\u003e\u003c\/p\u003e\n\u003cul\u003e\u003c\/ul\u003e","published_at":"2022-06-01T16:07:29+01:00","created_at":"2022-06-01T15:35:59+01:00","vendor":"Ecowitt","type":"Accessories","tags":["Ecowitt"],"price":2500,"price_min":2500,"price_max":2500,"available":true,"price_varies":false,"compare_at_price":2900,"compare_at_price_min":2900,"compare_at_price_max":2900,"compare_at_price_varies":false,"variants":[{"id":42918552731864,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"ECOWRS0001","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ecowitt RS0001 Sensor Shelter","public_title":null,"options":["Default Title"],"price":2500,"weight":300,"compare_at_price":2900,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/weatherspares.co.uk\/cdn\/shop\/products\/jpg_bb4800f0-e349-4e1b-9552-741efb5e629f_jpg.webp?v=1654095822","\/\/weatherspares.co.uk\/cdn\/shop\/products\/jpg_622d5a48-3ae4-4b51-8dce-1b77ae32a91d_jpg.webp?v=1654095822","\/\/weatherspares.co.uk\/cdn\/shop\/products\/jpg_7d9842f8-8622-4d6d-9a38-12344a0071b4_jpg.webp?v=1654095822","\/\/weatherspares.co.uk\/cdn\/shop\/products\/jpg_c943aa4c-7187-444d-9125-0ab068547529_jpg.webp?v=1654095822"],"featured_image":"\/\/weatherspares.co.uk\/cdn\/shop\/products\/jpg_bb4800f0-e349-4e1b-9552-741efb5e629f_jpg.webp?v=1654095822","options":["Title"],"media":[{"alt":null,"id":30162066505944,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/weatherspares.co.uk\/cdn\/shop\/products\/jpg_bb4800f0-e349-4e1b-9552-741efb5e629f_jpg.webp?v=1654095822"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/weatherspares.co.uk\/cdn\/shop\/products\/jpg_bb4800f0-e349-4e1b-9552-741efb5e629f_jpg.webp?v=1654095822","width":500},{"alt":null,"id":30162068013272,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/weatherspares.co.uk\/cdn\/shop\/products\/jpg_622d5a48-3ae4-4b51-8dce-1b77ae32a91d_jpg.webp?v=1654095822"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/weatherspares.co.uk\/cdn\/shop\/products\/jpg_622d5a48-3ae4-4b51-8dce-1b77ae32a91d_jpg.webp?v=1654095822","width":500},{"alt":null,"id":30162071683288,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/weatherspares.co.uk\/cdn\/shop\/products\/jpg_7d9842f8-8622-4d6d-9a38-12344a0071b4_jpg.webp?v=1654095822"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/weatherspares.co.uk\/cdn\/shop\/products\/jpg_7d9842f8-8622-4d6d-9a38-12344a0071b4_jpg.webp?v=1654095822","width":500},{"alt":null,"id":30162066473176,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/weatherspares.co.uk\/cdn\/shop\/products\/jpg_c943aa4c-7187-444d-9125-0ab068547529_jpg.webp?v=1654095822"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/weatherspares.co.uk\/cdn\/shop\/products\/jpg_c943aa4c-7187-444d-9125-0ab068547529_jpg.webp?v=1654095822","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cul\u003e\u003c\/ul\u003e\n\u003cp\u003eThis sensor shield is designed to protect your temperature or lightning sensor from mainly rain and also sun whilst allowing airflow through the shield to improve the accuracy of daytime temperature and humidity readings.\u003c\/p\u003e\n\u003cp\u003eSuitable for mounting on an appropriate pole, or can also be mounted on a flat surface with the included fixings.\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eSize information:\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003eShield length: 15.5cm; External diameter: 7.3cm; Internal diameter: 4.3cm\u003c\/p\u003e\n\u003cp\u003eMounting arm length: 17.2cm; mounting pole diameter:20mm\u003c\/p\u003e\n\u003cp\u003eCompatible sensors: Ecowitt WH31 and WH32 model Temperature and Humidity sensors, WH57 lightning sensor.\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eMultiple mounting options:\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003e1. Vertical installation\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/osswww.ecowitt.net\/uploads\/20201012\/dd55b58010af75d6b898e37fc3746362.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003e2. Mount onto a wall\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/osswww.ecowitt.net\/uploads\/20201012\/ee12903996cef095152b2b97d4916d72.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003e3. Mount to a pole(not included); maximum pole diameter:20mm\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/osswww.ecowitt.net\/uploads\/20201012\/6f2951c406ccb237259b178a5491f037.jpg\"\u003e\u003c\/p\u003e\n\u003cul\u003e\u003c\/ul\u003e"}
tfa-protective-sensor-shelter-stevenson-screen-98-1114
{"id":6576880353443,"title":"TFA Protective Sensor Shelter \/ Stevenson Screen 98.1114","handle":"tfa-protective-sensor-shelter-stevenson-screen-98-1114","description":"\u003cp\u003e\u003cstrong\u003e20% off this item when purchased with selected sensors and weather stations.\u003c\/strong\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003cp\u003eThis practical shelter from TFA protects temperature or humidity sensors from the rain and reduces the effects of solar heating. Due to the open construction of the protective cover, the air can circulate freely inside and you get improved readings even in direct sunlight.\u003c\/p\u003e\n\u003cp\u003eIn addition, the sensor is protected against rain and can be easily placed anywhere outside often extending the life of the sensor inside. Suitable for a variety of sensors including TFA, Ecowitt, GARNI, Davis, Oregon Scientific and Netamo.\u003c\/p\u003e\n\u003cp\u003eThe protective casing is also ideal for transmitters with a cabled sensor, as a cable opening is also part of the design.\u003cbr\u003e\u003c\/p\u003e\n\u003cp\u003eWe also recommend that when mounting the sensor inside that it is slightly raised above the base to allow air to circulate underneath as many sensors have base ventilation holes. \u003c\/p\u003e\n\u003ch5\u003e\n\u003cbr data-mce-fragment=\"1\"\u003e\u003cmeta charset=\"utf-8\"\u003e\n\u003c\/h5\u003e\n\u003ch5\u003eTechnical\u003c\/h5\u003e\n\u003cul\u003e\n\u003cli\u003eFor temperature, humidity or lightning sensors\u003c\/li\u003e\n\u003cli\u003eProtects against rain and direct sunlight\u003c\/li\u003e\n\u003cli\u003eKeeps Ecowitt lightning sensors sheltered, but away from additional interference \u003c\/li\u003e\n\u003cli\u003eBottom opening for sensor cable\u003c\/li\u003e\n\u003cli\u003eEasy to assemble, with included mounting parts\u003c\/li\u003e\n\u003cli\u003eInternal dimensions: width 60mm x 160mm tall\u003c\/li\u003e\n\u003cli\u003eTwo smaller sensors can be mounted back to back\u003c\/li\u003e\n\u003cli\u003eWeight 161 g\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003eMade from white ABS Plastic\u003cbr\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch5\u003eIncludes\u003cbr data-mce-fragment=\"1\"\u003e\n\u003c\/h5\u003e\n\u003cul\u003e\n\u003cli\u003eProtective sensor cover\u003c\/li\u003e\n\u003cli\u003e\n\u003cmeta charset=\"utf-8\"\u003eVelcro sensor fixing\u003c\/li\u003e\n\u003cli\u003eMounting bracket\u003c\/li\u003e\n\u003cli\u003eFixing screws\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003eCable ties\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2021-03-12T17:01:57+00:00","created_at":"2021-03-12T15:46:44+00:00","vendor":"TFA Dostmann","type":"Accessories","tags":["Ecowitt","GARNI","Humidity","Temperature","TFA"],"price":2000,"price_min":2000,"price_max":2000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":39413577154723,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"TFA981114","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"TFA Protective Sensor Shelter \/ Stevenson Screen 98.1114","public_title":null,"options":["Default Title"],"price":2000,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":"4009816028419","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/weatherspares.co.uk\/cdn\/shop\/products\/21000.jpg?v=1616847343","\/\/weatherspares.co.uk\/cdn\/shop\/products\/22962.jpg?v=1687157306","\/\/weatherspares.co.uk\/cdn\/shop\/files\/TFA-Shelter-Weeather-Spares.png?v=1687157754","\/\/weatherspares.co.uk\/cdn\/shop\/products\/22970.jpg?v=1687157754"],"featured_image":"\/\/weatherspares.co.uk\/cdn\/shop\/products\/21000.jpg?v=1616847343","options":["Title"],"media":[{"alt":"Protective Sensor Shelter \/ Stevenson Screen from TFA 98.1114 Weather Spares","id":20456679997603,"position":1,"preview_image":{"aspect_ratio":1.0,"height":900,"width":900,"src":"\/\/weatherspares.co.uk\/cdn\/shop\/products\/21000.jpg?v=1616847343"},"aspect_ratio":1.0,"height":900,"media_type":"image","src":"\/\/weatherspares.co.uk\/cdn\/shop\/products\/21000.jpg?v=1616847343","width":900},{"alt":"Protective Sensor Shelter \/ Stevenson Screen from TFA 98.1114 Weather Spares","id":20456680063139,"position":2,"preview_image":{"aspect_ratio":1.0,"height":900,"width":900,"src":"\/\/weatherspares.co.uk\/cdn\/shop\/products\/22962.jpg?v=1687157306"},"aspect_ratio":1.0,"height":900,"media_type":"image","src":"\/\/weatherspares.co.uk\/cdn\/shop\/products\/22962.jpg?v=1687157306","width":900},{"alt":null,"id":32035568189656,"position":3,"preview_image":{"aspect_ratio":1.0,"height":900,"width":900,"src":"\/\/weatherspares.co.uk\/cdn\/shop\/files\/TFA-Shelter-Weeather-Spares.png?v=1687157754"},"aspect_ratio":1.0,"height":900,"media_type":"image","src":"\/\/weatherspares.co.uk\/cdn\/shop\/files\/TFA-Shelter-Weeather-Spares.png?v=1687157754","width":900},{"alt":"Protective Sensor Shelter \/ Stevenson Screen from TFA 98.1114 Weather Spares","id":20456680095907,"position":4,"preview_image":{"aspect_ratio":1.0,"height":900,"width":900,"src":"\/\/weatherspares.co.uk\/cdn\/shop\/products\/22970.jpg?v=1687157754"},"aspect_ratio":1.0,"height":900,"media_type":"image","src":"\/\/weatherspares.co.uk\/cdn\/shop\/products\/22970.jpg?v=1687157754","width":900}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003e\u003cstrong\u003e20% off this item when purchased with selected sensors and weather stations.\u003c\/strong\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003cp\u003eThis practical shelter from TFA protects temperature or humidity sensors from the rain and reduces the effects of solar heating. Due to the open construction of the protective cover, the air can circulate freely inside and you get improved readings even in direct sunlight.\u003c\/p\u003e\n\u003cp\u003eIn addition, the sensor is protected against rain and can be easily placed anywhere outside often extending the life of the sensor inside. Suitable for a variety of sensors including TFA, Ecowitt, GARNI, Davis, Oregon Scientific and Netamo.\u003c\/p\u003e\n\u003cp\u003eThe protective casing is also ideal for transmitters with a cabled sensor, as a cable opening is also part of the design.\u003cbr\u003e\u003c\/p\u003e\n\u003cp\u003eWe also recommend that when mounting the sensor inside that it is slightly raised above the base to allow air to circulate underneath as many sensors have base ventilation holes. \u003c\/p\u003e\n\u003ch5\u003e\n\u003cbr data-mce-fragment=\"1\"\u003e\u003cmeta charset=\"utf-8\"\u003e\n\u003c\/h5\u003e\n\u003ch5\u003eTechnical\u003c\/h5\u003e\n\u003cul\u003e\n\u003cli\u003eFor temperature, humidity or lightning sensors\u003c\/li\u003e\n\u003cli\u003eProtects against rain and direct sunlight\u003c\/li\u003e\n\u003cli\u003eKeeps Ecowitt lightning sensors sheltered, but away from additional interference \u003c\/li\u003e\n\u003cli\u003eBottom opening for sensor cable\u003c\/li\u003e\n\u003cli\u003eEasy to assemble, with included mounting parts\u003c\/li\u003e\n\u003cli\u003eInternal dimensions: width 60mm x 160mm tall\u003c\/li\u003e\n\u003cli\u003eTwo smaller sensors can be mounted back to back\u003c\/li\u003e\n\u003cli\u003eWeight 161 g\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003eMade from white ABS Plastic\u003cbr\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch5\u003eIncludes\u003cbr data-mce-fragment=\"1\"\u003e\n\u003c\/h5\u003e\n\u003cul\u003e\n\u003cli\u003eProtective sensor cover\u003c\/li\u003e\n\u003cli\u003e\n\u003cmeta charset=\"utf-8\"\u003eVelcro sensor fixing\u003c\/li\u003e\n\u003cli\u003eMounting bracket\u003c\/li\u003e\n\u003cli\u003eFixing screws\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003eCable ties\u003c\/li\u003e\n\u003c\/ul\u003e"}

Adding the WN31 (WH31) 8 channel sensor to the Ecowitt WiFi or TFT gateway gives additional temperature and humidity readings at an alternative location. Upload data to the Ecowitt network to store a history of both temperature and humidity online.

Features

  • Measures temperature and humidity
  • Configurable for use with a range of Ecowitt gateways or consoles
  • View readings directly in the App
  • Add up to 8 sensors of this type
  • LED display with Fahrenheit and Celsius selectable
  • Upload data to the Ecowitt weather server to view history graphs and download the date from the website
  • Classed as an additional sensor, does not report to Weather Underground a WH32 is recommended for this service

To see how many of each variety of sensors your equipment supports, click here to view the latest Ecowitt sensor matrix.



  • 8 Channel Temperature and Humidity Sensor
  • Manual available by electronic download
    • Temperature range: -40°C – 60°C (14°F - 140°F) LCD may become difficult to read below -10 °C
    • Temperature resolution: 0.1°C or 0.1°F
    • Temperature accuracy: ±1°C
    • Humidity range: 10% - 99%
    • Humidity resolution: 1%
    • Humidity accuracy: ± 5%
    • Transmission distance in open field: 100m (300 feet)
    • 868MHz UK and European frequency
    • Classed as an additional sensor, does not report to Weather Underground a WH32 outdoor sensor is recommended
    • Sensor reporting interval: 61 seconds
    • Power: 2 x AA 1.5V LR6 Alkaline battery (required)

    The electronic copy of the manual is available to download by clicking here.

        Customer Reviews

        Based on 1 review
        100%
        (1)
        0%
        (0)
        0%
        (0)
        0%
        (0)
        0%
        (0)
        B
        Bill T.
        Simplicity itself

        Purchased this sensor as an add on to my HP2561. Ir's purpose being to remotely report the conditions in my south facing conservatory, using the Ecowitt App.
        Before purchase, I downloaded the User Guide, So I had already chosen a location on and put in the fixings (a screw) on a section of the dwarf wall that never receives direct sunshine, and about 15 inches from the floor to minimise heat (or cold) radiation. It arrived spot on time and taking it straight out of the box, the dip switches were already set for Ch.1 and Centigrade. Popped in two (Lithium) batteries, hung it on the screw, and by the time that I reached the WH2561, it had already been detected!
        An excellent, compact and efficient little add-on. (and it didn't break the bank either!)
        although it will stand on a flat surface.

        Thank you for taking the time to leave such a positive review for the Ecowitt WN31 Temperature & Humidity Sensor! We're glad to hear that you found it easy to set up and that it has been working well for you. Thank you for choosing Ecowitt and of course Weather Spares
