Ecowitt WH40 Wireless Self-Emptying Rain Collector / Rainfall Sensor Weather Spares

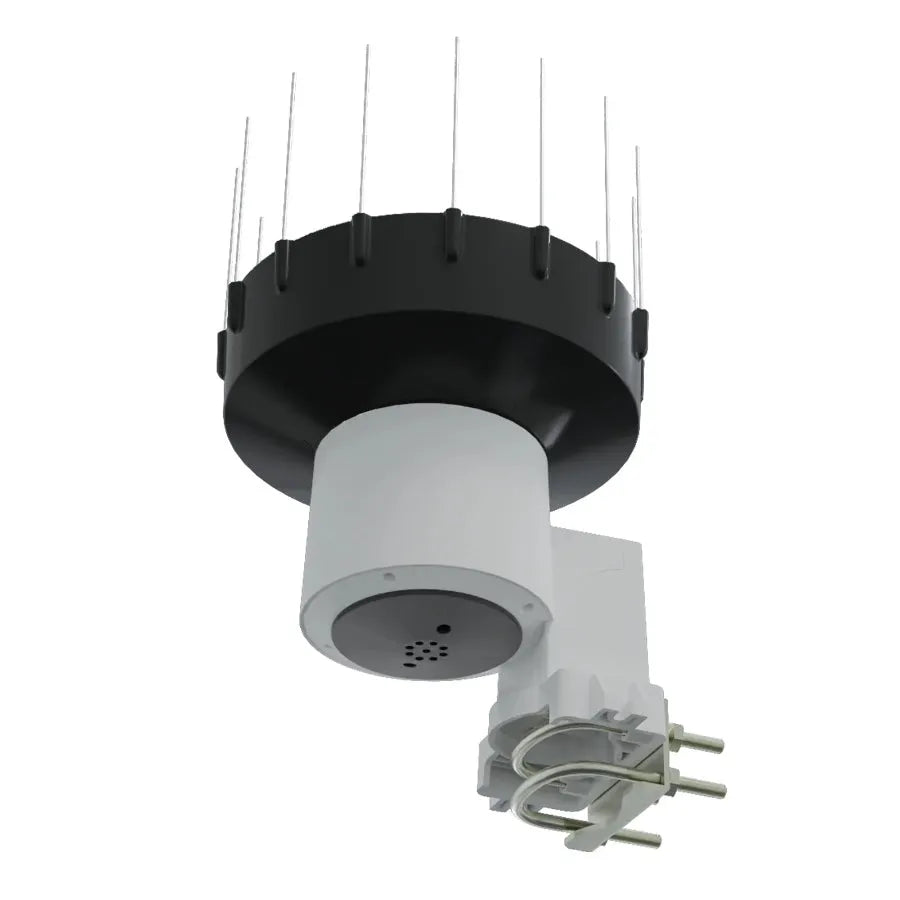

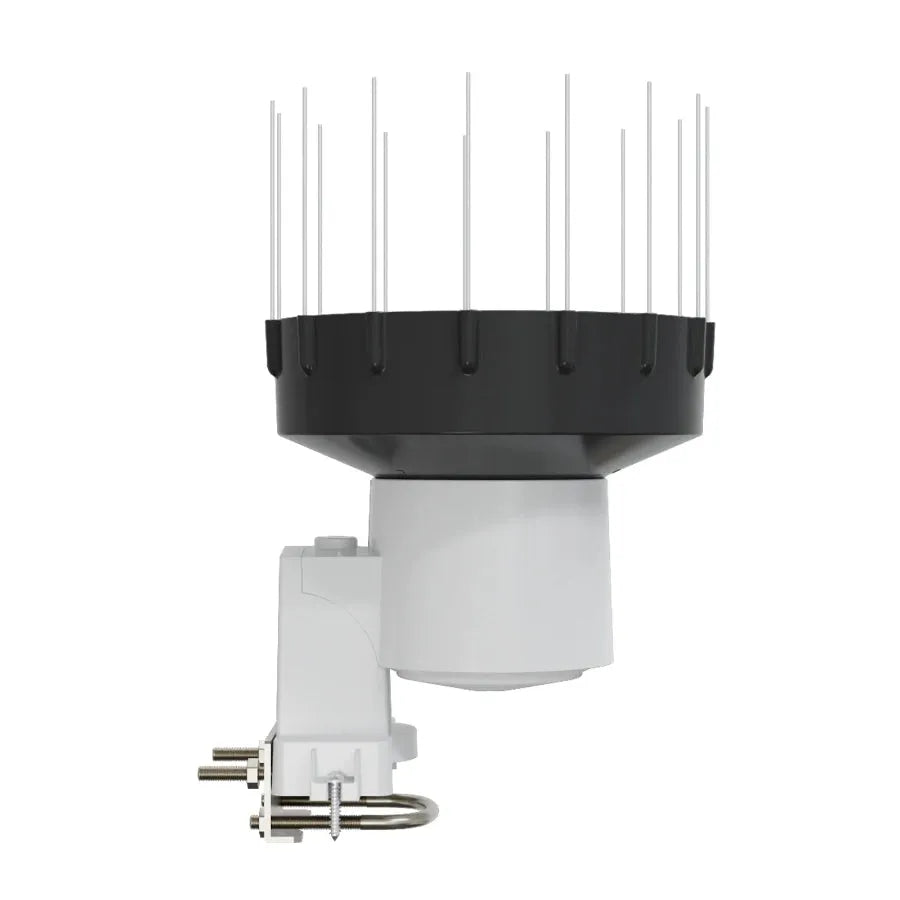

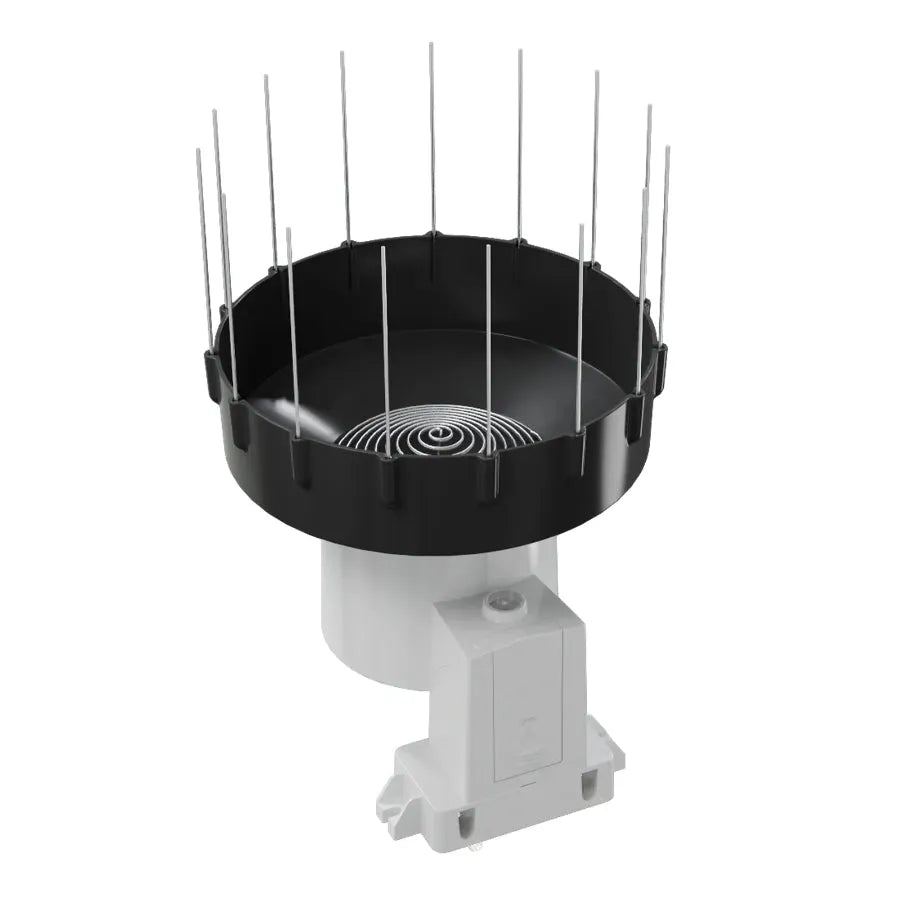

Ecowitt WH40 / WH40H Wireless Self-Emptying Rain Gauge

Sale

Regular price: £40.00
Sale price: £40.00
Regular price: ~~£45.00~~

UK VAT included. Shipping calculated at checkout.

Radio Frequency:

868MHz UK/EU

Funnel Style:

Standard Funnel without Bird Spikes Enhanced Funnel with Bird Spikes

Product variants:

{"id":7720065761496,"title":"Mounting Pole for Various Outdoor Sensors","handle":"sensor-mounting-pole-and-fixings-for-various-outdoor-sensors","description":"\u003cp\u003eSensor mounting hardware suitable for a number of external sensor packs. Flexible mounting options for installation on a flat surface or post. Light weight but sturdy design with 16swg aluminium pole and galvanised 2mm steel mounting base all manufactured in the UK.\u003c\/p\u003e\n\u003cp\u003eKnown to work with:\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eEcowitt\u003c\/li\u003e\n\u003cul\u003e\n\u003cli\u003eGW1201 \/ GW1101 \/ GW1001 sensor array\u003c\/li\u003e\n\u003cli\u003eHP2551 \/ HP2561 sensor array\u003c\/li\u003e\n\u003cli\u003eRS0001 sensor shelter\u003c\/li\u003e\n\u003cli\u003eWN1900 \/ WN1920 sensor array\u003c\/li\u003e\n\u003cli\u003eWS2910 sensor array\u003c\/li\u003e\n\u003cli\u003eWH40 rain gauge\u003c\/li\u003e\n\u003cli\u003eWN67 5-in-1sensor array\u003c\/li\u003e\n\u003cli\u003eWS68 standard anemometer\u003c\/li\u003e\n\u003cli\u003eWS69 7-in-1 sensor array\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003eWS85 sonic 3-in-1 sensor pack with haptic rain\u003c\/li\u003e\n\u003cli\u003eWS90 sonic 7-in-1 sensor pack with haptic rain\u003cbr\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cli\u003eGARNI 940 sensor array\u003c\/li\u003e\n\u003cli\u003eTFA sensor shelter\u003c\/li\u003e\n\u003cli\u003eVentus W830 sensor array\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003eThank you to Highlands \u0026amp; Islands Weather for their image of the installed Ecowitt sensor array showing the pole and mounting on a wooden fence post.\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch5\u003eIncluded\u003c\/h5\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cdiv\u003e1 x 25mm (1\") diameter pole, approx 48cm long with end cap \/ bung\u003c\/div\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cdiv\u003e1 x U Bolt \u0026amp; nuts to clamp pole to mounting bracket\u003c\/div\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cdiv\u003e1 x metal mounting bracket offering vertical or surface mounting with 4 fixing points, fixings required for mounting on your chosen surface\u003c\/div\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e","published_at":"2022-06-16T16:46:02+01:00","created_at":"2022-06-16T16:18:59+01:00","vendor":"Ecowitt","type":"Accessories","tags":[],"price":1400,"price_min":1400,"price_max":1400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42971366654168,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"GENFIXPOLE","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mounting Pole for Various Outdoor Sensors","public_title":null,"options":["Default Title"],"price":1400,"weight":450,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/weatherspares.co.uk\/cdn\/shop\/files\/Screenshot_2024-11-05_at_12.46.21.png?v=1730811068","\/\/weatherspares.co.uk\/cdn\/shop\/files\/Screenshot_2024-11-05_at_12.48.07.png?v=1730811141","\/\/weatherspares.co.uk\/cdn\/shop\/files\/20220607_193412.jpg?v=1730809447"],"featured_image":"\/\/weatherspares.co.uk\/cdn\/shop\/files\/Screenshot_2024-11-05_at_12.46.21.png?v=1730811068","options":["Title"],"media":[{"alt":null,"id":63052915966330,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/weatherspares.co.uk\/cdn\/shop\/files\/Screenshot_2024-11-05_at_12.46.21.png?v=1730811068"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/weatherspares.co.uk\/cdn\/shop\/files\/Screenshot_2024-11-05_at_12.46.21.png?v=1730811068","width":800},{"alt":null,"id":63052915933562,"position":2,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/weatherspares.co.uk\/cdn\/shop\/files\/Screenshot_2024-11-05_at_12.48.07.png?v=1730811141"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/weatherspares.co.uk\/cdn\/shop\/files\/Screenshot_2024-11-05_at_12.48.07.png?v=1730811141","width":800},{"alt":null,"id":63052810223994,"position":3,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/weatherspares.co.uk\/cdn\/shop\/files\/20220607_193412.jpg?v=1730809447"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/weatherspares.co.uk\/cdn\/shop\/files\/20220607_193412.jpg?v=1730809447","width":800}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eSensor mounting hardware suitable for a number of external sensor packs. Flexible mounting options for installation on a flat surface or post. Light weight but sturdy design with 16swg aluminium pole and galvanised 2mm steel mounting base all manufactured in the UK.\u003c\/p\u003e\n\u003cp\u003eKnown to work with:\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eEcowitt\u003c\/li\u003e\n\u003cul\u003e\n\u003cli\u003eGW1201 \/ GW1101 \/ GW1001 sensor array\u003c\/li\u003e\n\u003cli\u003eHP2551 \/ HP2561 sensor array\u003c\/li\u003e\n\u003cli\u003eRS0001 sensor shelter\u003c\/li\u003e\n\u003cli\u003eWN1900 \/ WN1920 sensor array\u003c\/li\u003e\n\u003cli\u003eWS2910 sensor array\u003c\/li\u003e\n\u003cli\u003eWH40 rain gauge\u003c\/li\u003e\n\u003cli\u003eWN67 5-in-1sensor array\u003c\/li\u003e\n\u003cli\u003eWS68 standard anemometer\u003c\/li\u003e\n\u003cli\u003eWS69 7-in-1 sensor array\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003eWS85 sonic 3-in-1 sensor pack with haptic rain\u003c\/li\u003e\n\u003cli\u003eWS90 sonic 7-in-1 sensor pack with haptic rain\u003cbr\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cli\u003eGARNI 940 sensor array\u003c\/li\u003e\n\u003cli\u003eTFA sensor shelter\u003c\/li\u003e\n\u003cli\u003eVentus W830 sensor array\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003eThank you to Highlands \u0026amp; Islands Weather for their image of the installed Ecowitt sensor array showing the pole and mounting on a wooden fence post.\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch5\u003eIncluded\u003c\/h5\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cdiv\u003e1 x 25mm (1\") diameter pole, approx 48cm long with end cap \/ bung\u003c\/div\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cdiv\u003e1 x U Bolt \u0026amp; nuts to clamp pole to mounting bracket\u003c\/div\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cdiv\u003e1 x metal mounting bracket offering vertical or surface mounting with 4 fixing points, fixings required for mounting on your chosen surface\u003c\/div\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e"}

add the 1" sensor mounting pole £14.00

{"id":8065380516056,"title":"Bird Deterrent Z-spikes for Rain Funnel or Sonic Anemometer","handle":"bird-deterrent-z-spikes-for-rain-bucket-or-sonic-anemometer","description":"\u003cp\u003e\u003cspan face=\"arial, helvetica, sans-serif\"\u003eImproved Z style spikes with fixing kit to deter bird perching on a rain funnel\/bucket or Ecowitt sonic anemometers. Easy to assemble kit.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan face=\"arial, helvetica, sans-serif\"\u003eSuitable use with any rain bucket that has a flat rim to allow attachment including Ventus, Ecowitt, GARNI, older Davis and TFA. Also suitable for use with the Ecowitt WS80, WS85 \u0026amp; WS90 sonic anemometers to deter perching and the WH40 with rain extension to assist holding the rain bucket extension in place.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan face=\"arial, helvetica, sans-serif\"\u003e\u003cmeta charset=\"utf-8\"\u003e(Rain funnel and other sensors show are not included)\u003c\/span\u003e\u003c\/p\u003e\n\u003ch5\u003e\u003cspan face=\"arial, helvetica, sans-serif\"\u003eIncluded\u003c\/span\u003e\u003c\/h5\u003e\n\u003cul\u003e\n\u003cli\u003e\u003cspan face=\"arial, helvetica, sans-serif\"\u003e2 x 30cm stainless steel self locking zip ties \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan face=\"arial, helvetica, sans-serif\"\u003e8 x silicon spike holders\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan face=\"arial, helvetica, sans-serif\"\u003e16 x metal Z-spikes\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan face=\"arial, helvetica, sans-serif\"\u003ePaper instruction pamphlet\u003c\/span\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003eAssembly requires a pair of pliers to tighten the metal zip tie.\u003c\/p\u003e\n\u003cp\u003e\u003cbr\u003e \u003c\/p\u003e","published_at":"2024-01-11T18:36:01+00:00","created_at":"2023-10-23T17:49:02+01:00","vendor":"Ecowitt","type":"Accessories","tags":[],"price":1800,"price_min":1800,"price_max":1800,"available":true,"price_varies":false,"compare_at_price":2000,"compare_at_price_min":2000,"compare_at_price_max":2000,"compare_at_price_varies":false,"variants":[{"id":44040827011288,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"ECORAINBZ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bird Deterrent Z-spikes for Rain Funnel or Sonic Anemometer","public_title":null,"options":["Default Title"],"price":1800,"weight":100,"compare_at_price":2000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/weatherspares.co.uk\/cdn\/shop\/files\/Image23-10-2023at17.57.jpg?v=1698080645","\/\/weatherspares.co.uk\/cdn\/shop\/files\/Image23-10-2023at17.54.jpg?v=1698080655","\/\/weatherspares.co.uk\/cdn\/shop\/files\/Image23-10-2023at17.54_2.jpg?v=1698080669","\/\/weatherspares.co.uk\/cdn\/shop\/files\/Image23-10-2023at17.54_1.jpg?v=1698080678"],"featured_image":"\/\/weatherspares.co.uk\/cdn\/shop\/files\/Image23-10-2023at17.57.jpg?v=1698080645","options":["Title"],"media":[{"alt":null,"id":32494986854616,"position":1,"preview_image":{"aspect_ratio":1.0,"height":900,"width":900,"src":"\/\/weatherspares.co.uk\/cdn\/shop\/files\/Image23-10-2023at17.57.jpg?v=1698080645"},"aspect_ratio":1.0,"height":900,"media_type":"image","src":"\/\/weatherspares.co.uk\/cdn\/shop\/files\/Image23-10-2023at17.57.jpg?v=1698080645","width":900},{"alt":null,"id":32494986952920,"position":2,"preview_image":{"aspect_ratio":1.0,"height":900,"width":900,"src":"\/\/weatherspares.co.uk\/cdn\/shop\/files\/Image23-10-2023at17.54.jpg?v=1698080655"},"aspect_ratio":1.0,"height":900,"media_type":"image","src":"\/\/weatherspares.co.uk\/cdn\/shop\/files\/Image23-10-2023at17.54.jpg?v=1698080655","width":900},{"alt":null,"id":32494986887384,"position":3,"preview_image":{"aspect_ratio":1.0,"height":900,"width":900,"src":"\/\/weatherspares.co.uk\/cdn\/shop\/files\/Image23-10-2023at17.54_2.jpg?v=1698080669"},"aspect_ratio":1.0,"height":900,"media_type":"image","src":"\/\/weatherspares.co.uk\/cdn\/shop\/files\/Image23-10-2023at17.54_2.jpg?v=1698080669","width":900},{"alt":null,"id":32494986920152,"position":4,"preview_image":{"aspect_ratio":1.0,"height":900,"width":900,"src":"\/\/weatherspares.co.uk\/cdn\/shop\/files\/Image23-10-2023at17.54_1.jpg?v=1698080678"},"aspect_ratio":1.0,"height":900,"media_type":"image","src":"\/\/weatherspares.co.uk\/cdn\/shop\/files\/Image23-10-2023at17.54_1.jpg?v=1698080678","width":900}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003e\u003cspan face=\"arial, helvetica, sans-serif\"\u003eImproved Z style spikes with fixing kit to deter bird perching on a rain funnel\/bucket or Ecowitt sonic anemometers. Easy to assemble kit.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan face=\"arial, helvetica, sans-serif\"\u003eSuitable use with any rain bucket that has a flat rim to allow attachment including Ventus, Ecowitt, GARNI, older Davis and TFA. Also suitable for use with the Ecowitt WS80, WS85 \u0026amp; WS90 sonic anemometers to deter perching and the WH40 with rain extension to assist holding the rain bucket extension in place.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan face=\"arial, helvetica, sans-serif\"\u003e\u003cmeta charset=\"utf-8\"\u003e(Rain funnel and other sensors show are not included)\u003c\/span\u003e\u003c\/p\u003e\n\u003ch5\u003e\u003cspan face=\"arial, helvetica, sans-serif\"\u003eIncluded\u003c\/span\u003e\u003c\/h5\u003e\n\u003cul\u003e\n\u003cli\u003e\u003cspan face=\"arial, helvetica, sans-serif\"\u003e2 x 30cm stainless steel self locking zip ties \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan face=\"arial, helvetica, sans-serif\"\u003e8 x silicon spike holders\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan face=\"arial, helvetica, sans-serif\"\u003e16 x metal Z-spikes\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan face=\"arial, helvetica, sans-serif\"\u003ePaper instruction pamphlet\u003c\/span\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003eAssembly requires a pair of pliers to tighten the metal zip tie.\u003c\/p\u003e\n\u003cp\u003e\u003cbr\u003e \u003c\/p\u003e"}

add anti-bird spikes £20.00 £18.00

Product Details

Add the WH40 rain gauge to the Ecowitt WiFi gateway to obtain rainfall readings on your system. Exceptional accuracy at 0.1mm / 0.01inch resolution and self emptying. Or add the WH40H model with heightened collection bucket and anti-bird spikes as an upgraded option.

Features

Measures rainfall in 0.1mm increments to record daily, weekly, monthly and yearly data
WH40H model includes a heightened bucket and screw in anti bird spikes
No display, for use with Ecowitt gateway device or separately sold display
Configuration via the free App
Supports uploads to WeatherUnderground, WeatherCloud, MetOffice WoW
The rainfall history graph of your WU station ID can be viewed on the WeatherUnderground Dashboard on the App
Rain sensor calibration and customised initial rain value functions available on the App
Works with the optional WH5360 Rain Gauge display console (sold separately)

For further details on which Ecowitt weather stations support the WH40 sensor, click here to view the latest Ecowitt sensor matrix.

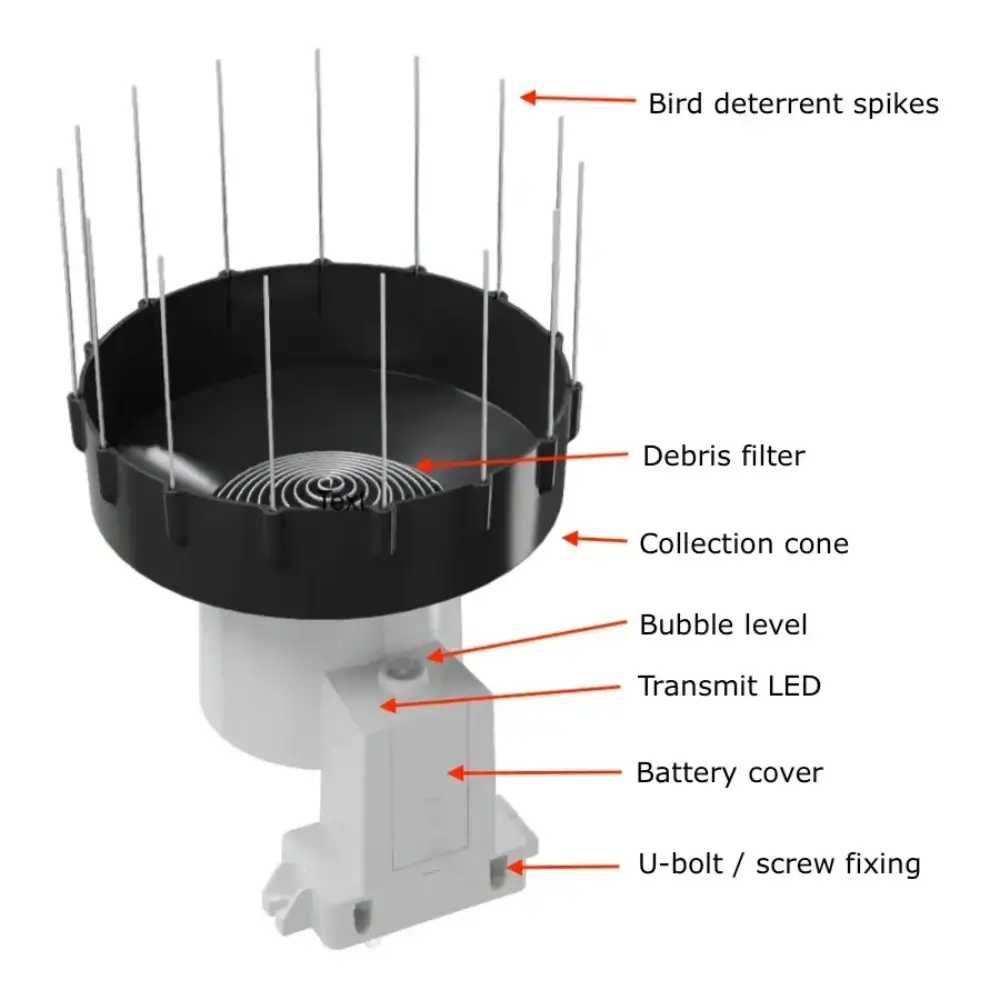

Included

Either Rain Gauge Sensor WH40A or Extended rain collection cone and bird spike model WH40HA
Clip in metal debris filter
One U-bolt set for optional pole top installation on 25-50mm pole (pole not supplied as standard)
One set of screws for post top installation
User Manual in electronic format

Technical & Manual

Model WH40A 868MHz UK and European frequency
Transmission distance in open field: 100m (300 feet)
Measurement range: 0 – 6000mm
Sensor reporting interval: 49 seconds
Power: 1 x AA 1.5V LR6 Alkaline battery
Estimated battery life 12 months

The WH40 Rain Gauge manual is available by clicking here.

Product Warranty

2 year warranty from date of purchase from May 2025, 1 year on purchases before this date - return to supplier. Batteries are excluded from warranties as they are classed as a consumable item.

See our terms and conditions for full details of our warranty details.
