NANO SD, a NANO with Meteobridge Pro features and extended storage of 8GB
8GB of Local Storage of Data from the Western Digital/Sandisk Industrial microSD card.
The fundamental difference compared to a regular NANO is that the NANO SD has 8GB of permanent storage while the NANO just has 16 MB onboard flash mostly covered by the operating system and the application programs. The NANO SD with 8GB of storage is ideal for those Davis stations where data is recorded from more than just the standard sensor set giving over 30 years of storage for a fully laden Pro2 station. NANO SD holds data for last 72 hours in a per minute resolution and older data in a per hour resolution. Hourly data can be inspected and edited through the NANO web interface. So it just needs a few clicks to select a sensor and the year, month and day to inspect. Data can be changed by simply clicking onto the corresponding value in the table at the bottom. When you change a value on per hour level, the changes will also be propagated to affected data of the day, month and year automatically. This makes handling of logged data rather intuitive and you don't need separate tools for it.
NANO SD also allows to export data of user-defined time frames in various time resolutions. Specification of year, month, day is done in the upper part first. Then you can select a template that defines the structure of the export in the middle part. By pressing one of the export buttons a CSV data export is generated in the export folder of the microSD card. To transfer this data to your PC for follow-up processing or archiving you don't have to move the microSD card, but simply mount the NANO SD as a PC network share. This works natively on PC, Mac or Linux clients. That way the data store of the NANO can be used by all computers in your home network.

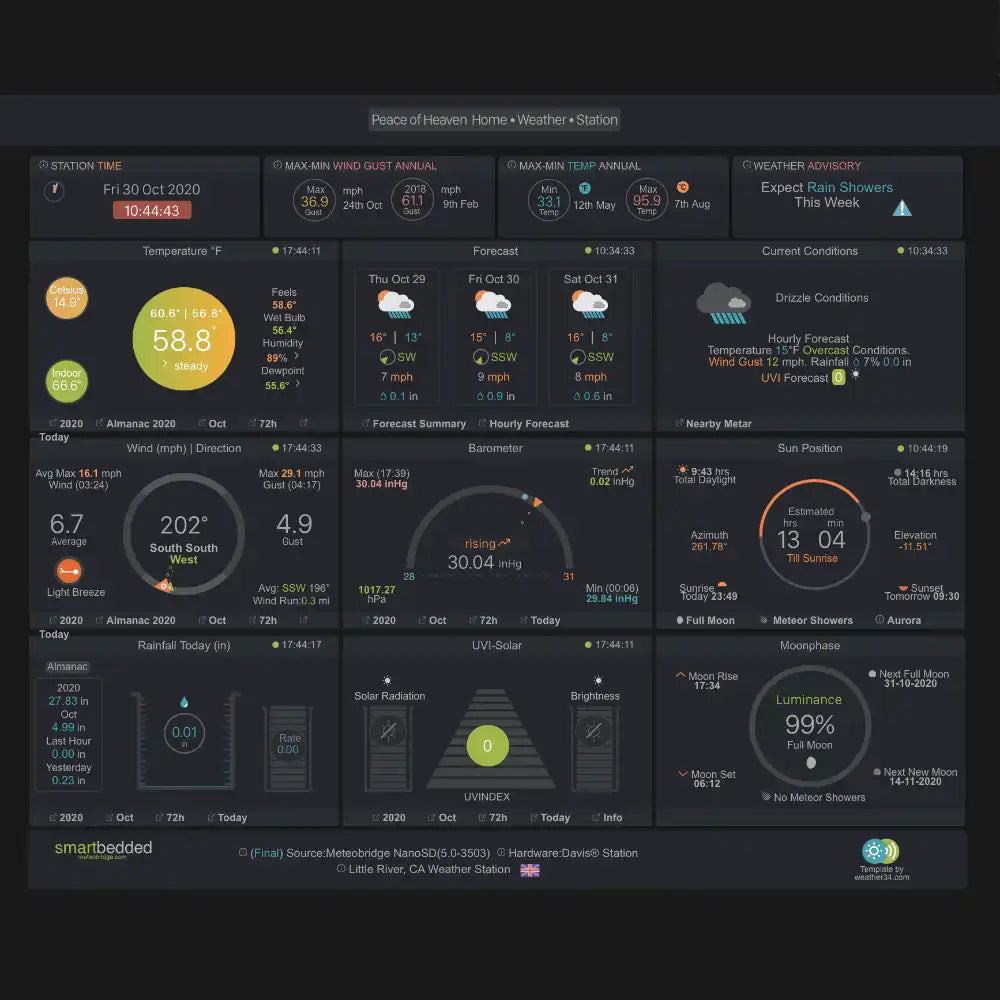

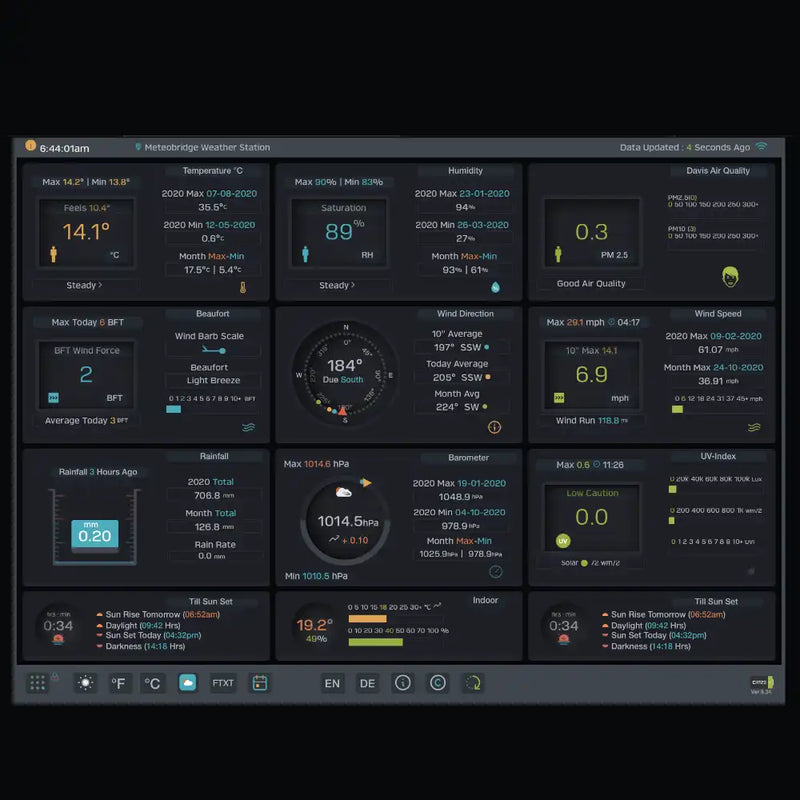

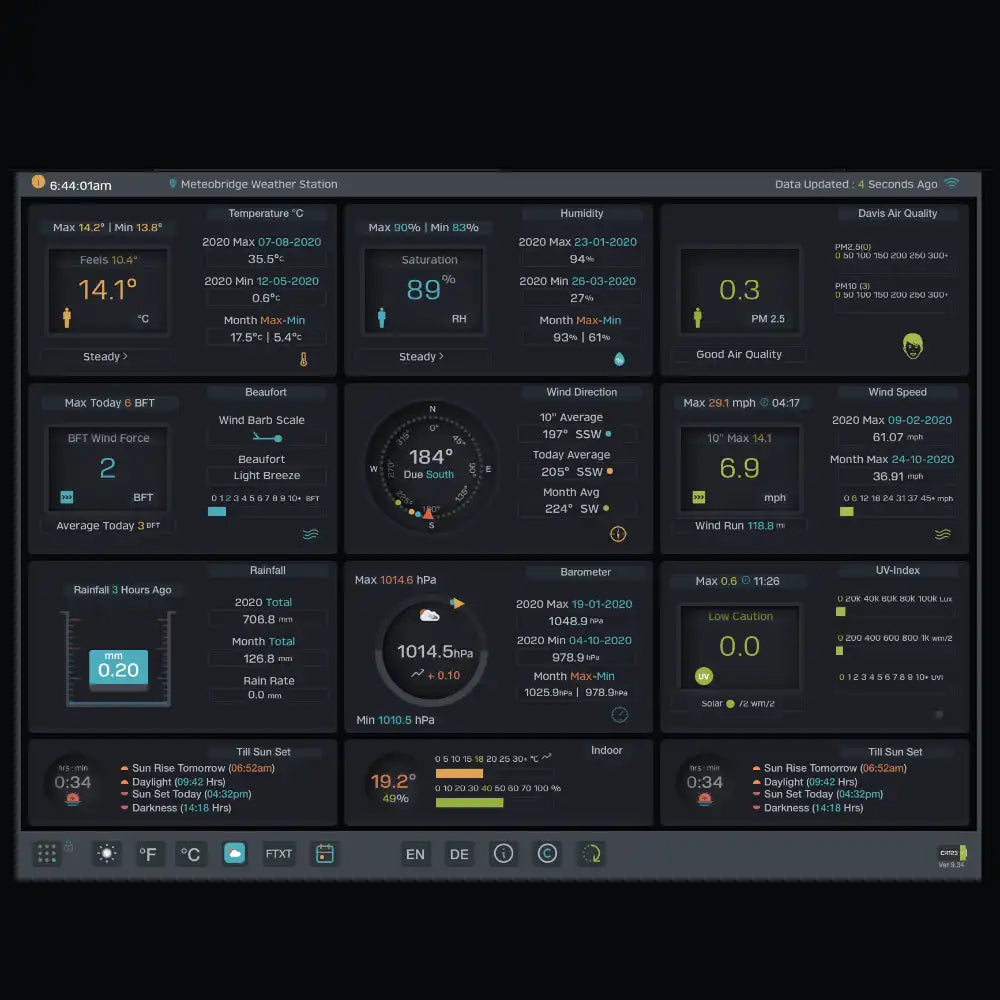

The NANO SD can generate powerful interactive charts based on the data stored locally. All you need to do is to select a chart type and time period to inspect and a time resolution. Having done so it just takes a few seconds for the chart to show up. When you move the cursor into the chart area a vertical ruler provides information about the point in time selected and data boxes for all sensors will show numerical data. Furthermore, you can customise the charts by clicking onto the sensors. This will activate or deactivate display of the touched sensor. The handles at time line's start and end can be moved to zoom in to areas that need further inspection.
Data export and chart generation are based on templates stored in the template folder of your NANO SD. Therefore, the output format is not hard coded but can be adapted to your needs.
- Meteobridge NANO SD 8GB
- Instruction leaflet
Many more details on the NANO SD can be found on the Meteobridge web page here.
The manual supplied with the Meteobridge NANO can be viewed by clicking here.
- Size: 35mm x 30mm x 10mm (width x height x depth), fits in to the expansion module compartment at the back of the console under the back cover
- Weight: 10g
- Up to 300 mA power demand (at 5 V)
- Operating temperatures: 0 - 50°C, non-condensing
- WiFi 2.4 GHz, 802.11g/n, internal chip antenna

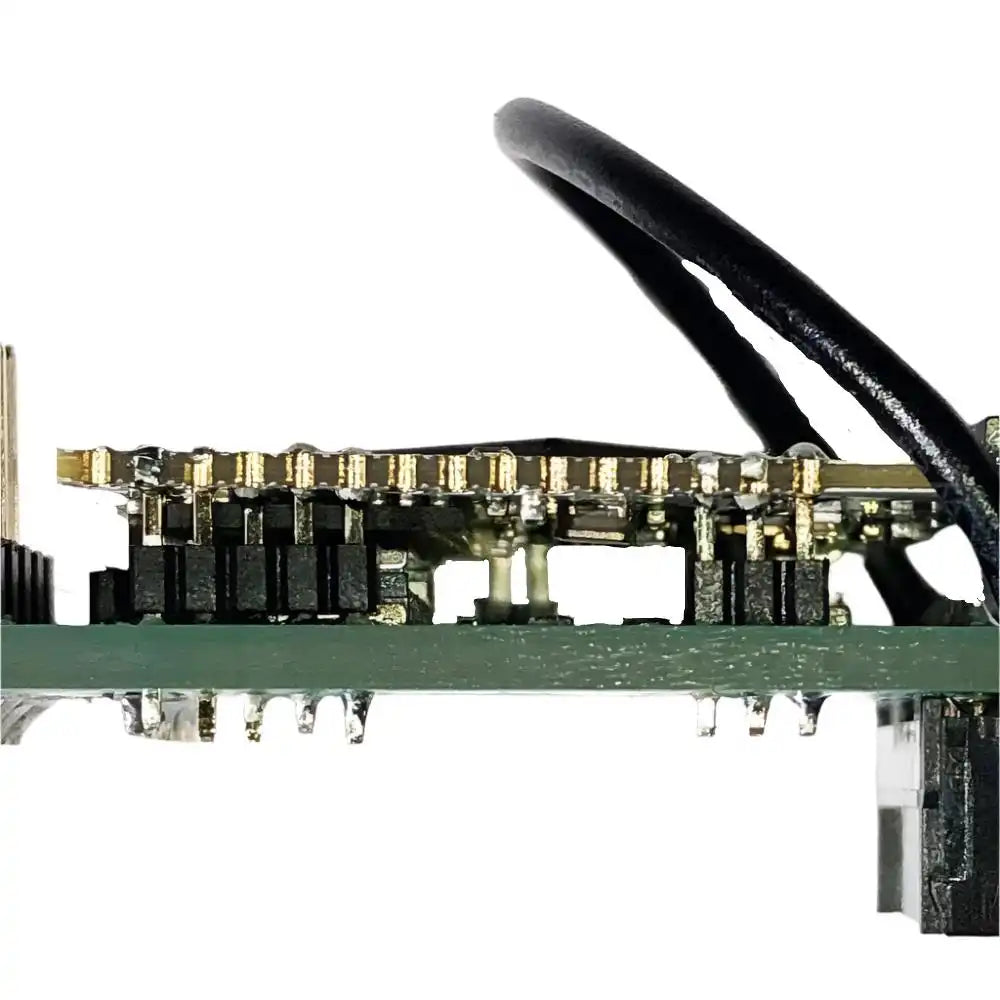

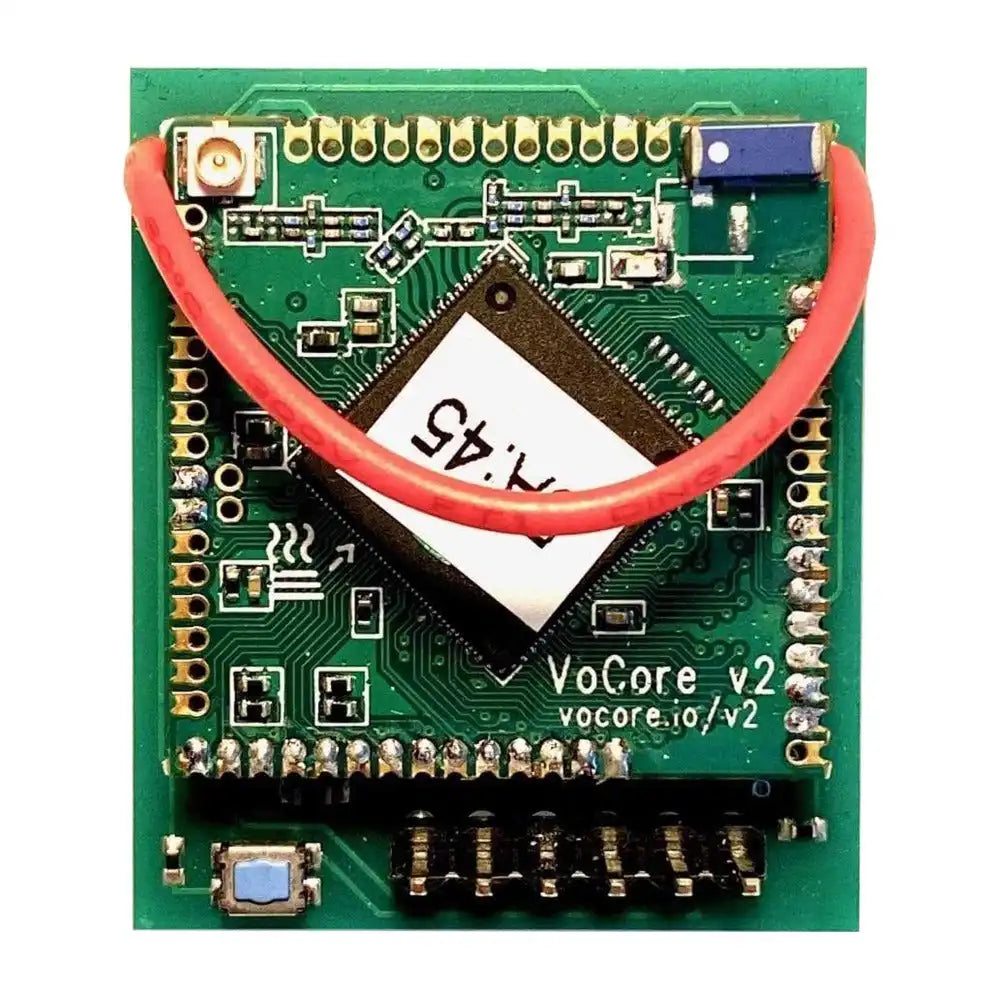

- VoCore2 CPU board
- Mediatek 7628 AN SOC
- 580 MHz, 128 MB RAM / 16 MB flash
- Status LED, reset button
- 6-pin header maintenance port
- CE and RoHS conform
- FCC compliant (contains FCC ID 2AC4R-VOCOREV2)
I was having connection issues with my old meteobridge pro and display was breaking up. My Console collected data perfectly so I opted for the NanoSD. The setup went well. But I did receive a warning about the mSD card not being suitable. This was soon corrected after a reboot following support from Weatherspares. The Console unit was suffering from flickering when busy but an upgraded PSU to 1A output corrected that. The delivery was next day (Royal Mail) and my email contacts were handled immediately by Adrian. I will certainly be using them again.
