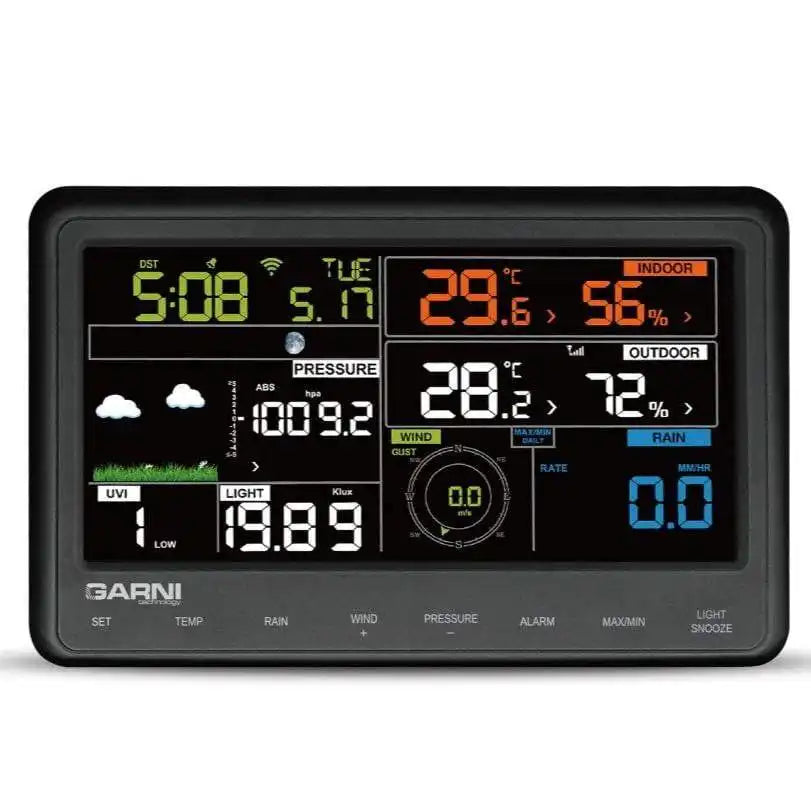

GARNI 940 Colour Console Screen for WiFi Weather Station

This is a replacement or additional screen only for use with your existing GARNI 940 weather station, but can also be used with a Ventus W830 or Ecowitt WS69 sensor pack.

EXTERNAL SENSOR PACK IS NOT INCLUDED - 868MHz UK / EU Frequency

Data can be uploaded via Wi-Fi on the console to four different weather services, along with you own server and can be viewed anywhere you have internet access.

Key features:

• Inverse V. A. colour display
• Item included:
• Main colour console
• Power Supply
• Table stand
• Data upload to Weather Underground, Weather Cloud, Ecowitt and MetOffice WoW service
• Time and date are adjusted from the Internet
• 24 month warranty


Displays the following readings

• Indoor temperature measurement range / tolerance -10 °C to + 60 °C / ±1 °C
• External temperature

• Internal rel. humidity measurement range / tolerance 10% to 99% / ±5%
• External rel. humidity
• Heat index, external
• Display of the dew point value, external

• Bar. pressure measurement range / tolerance 300 to 1100 hPa (700 to 1100 hPa / ±3 hPa)
• Resolution of barometric pressure measurement 0,1 hPa
• Absolute / relative barometric pressure display yes / yes (relative bar pressure adjustment possible)

• Wind speed
• Wind direction measurement 0 ° to 360 °, 16 positions
• Resolution of wind direction 1°
• Display of the Wind Chill

• Measuring rainfall

• UV radiation
• Light intensity measurement range / tolerance 0 to 400k Lux ± 15%

• Moon phase yes
• Principle of weather forecasts based on the changes barometric pressure
• Number of weather forecast icons 5 (sunny, partly cloudy, cloudy, rain, snow)

• Reception frequency from your own wireless sensors 868 MHz

• Wi-Fi standard 802.11
• Wi-Fi frequency 2.4 GHz

• Memory to MAX and MIN measured values max and min values ​​of indoor and outdoor temperature and relative humidity, max values ​​of UV index, light intensity, wind speed and total rainfall

• Alarm of upper and lower temperature limits
• Alarm of upper and lower limit of relative humidity
• Other alarms upper limits of wind speed, wind impact, total rainfall

• Date Yes, adjusted from the Internet, or manually
• Time Yes, adjusted from the Internet or manually
• Date format 12/24 hours
• Alarm yes
• Time zone yes (-12 to + 12 hours)

• Dimensions of the display 156 x 76 mm
• Digit size - main unit time 12 mm, date 8mm, UV index 11 mm, illumination intensity 11 mm, temperature and relative humidity 14 mm, precipitation 13 mm wind speed 5 mm, barometric pressure 8 mm
• Main Unit Display Illumination yes, colour inversion, constantly via power supply, 2 intensity levels, possibility to switch off the lighting
• Weight main unit 264 g (incl. stand)
• Option to stand / wall mount the sensor display unit
• Power supply main unit AC adapter 100-240V, 50/60 Hz, 0.2A / 5V, 1.0A (included), 3 x 1.5V AAA batteries (not included)

• Measured data transferred via Wi-Fi connection to Weather Underground, Weather Cloud, Weather Observations, Ecowitt and user's own server
