Enhanced Omnidirectional Antenna for GW3000 Gateway

Regular price: £24.00 GBP
Sale price: £24.00 GBP
Regular price

UK VAT included. Shipping calculated at checkout.

1 review

Looking to extend the reception range of the GW3000 Gateway to pick up those distance sensors over a 100 meters from the base then this is for you.

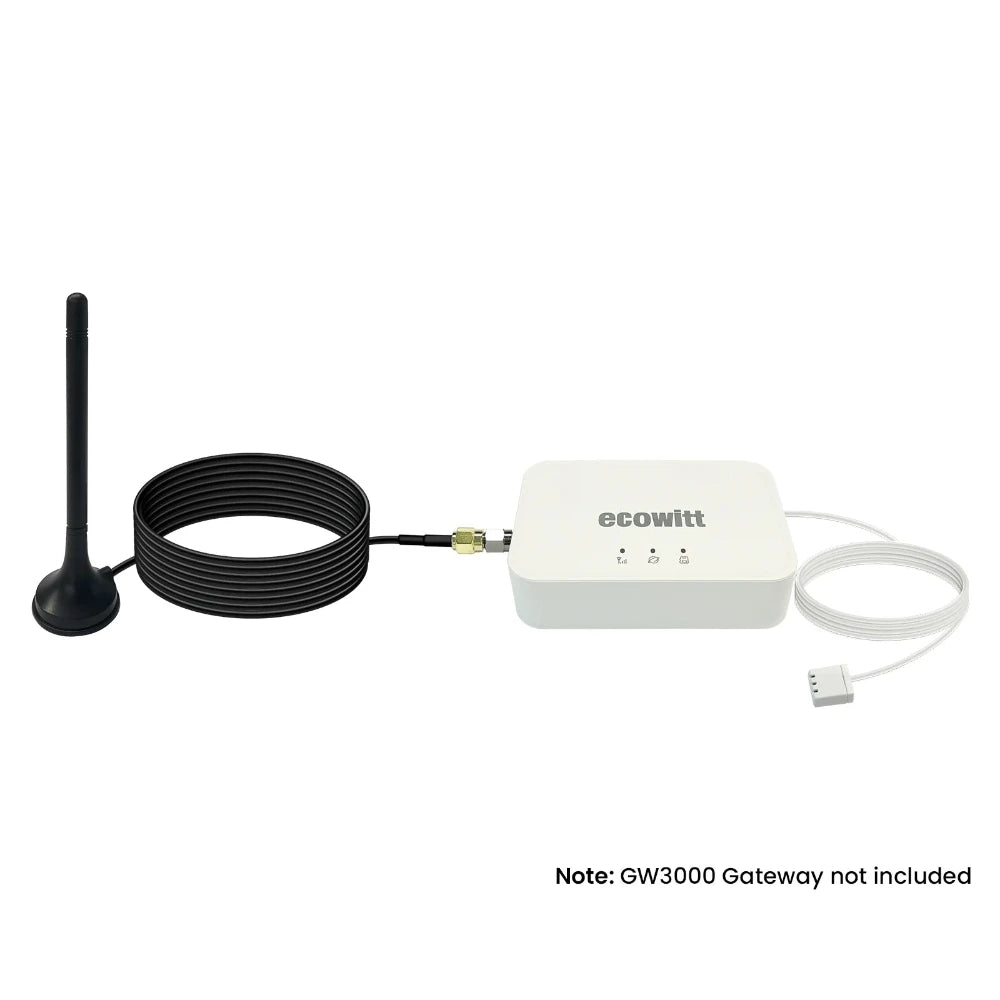

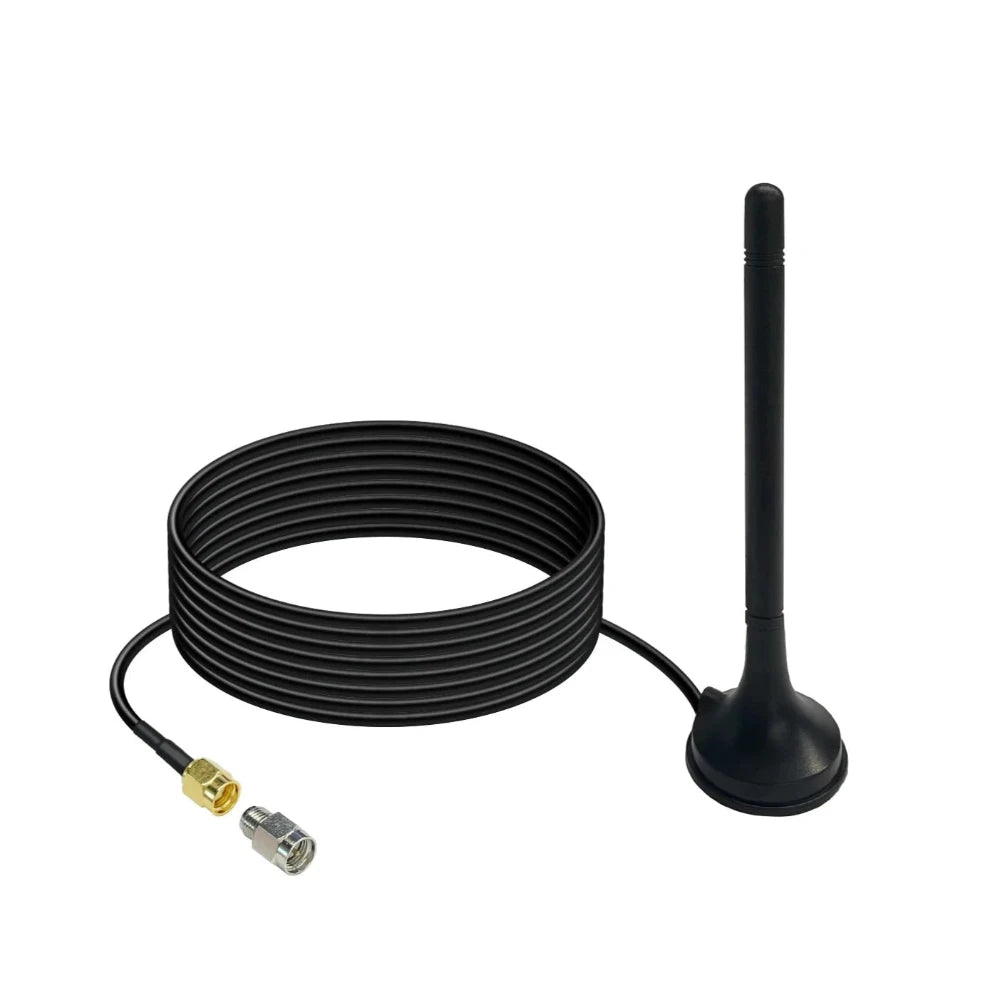

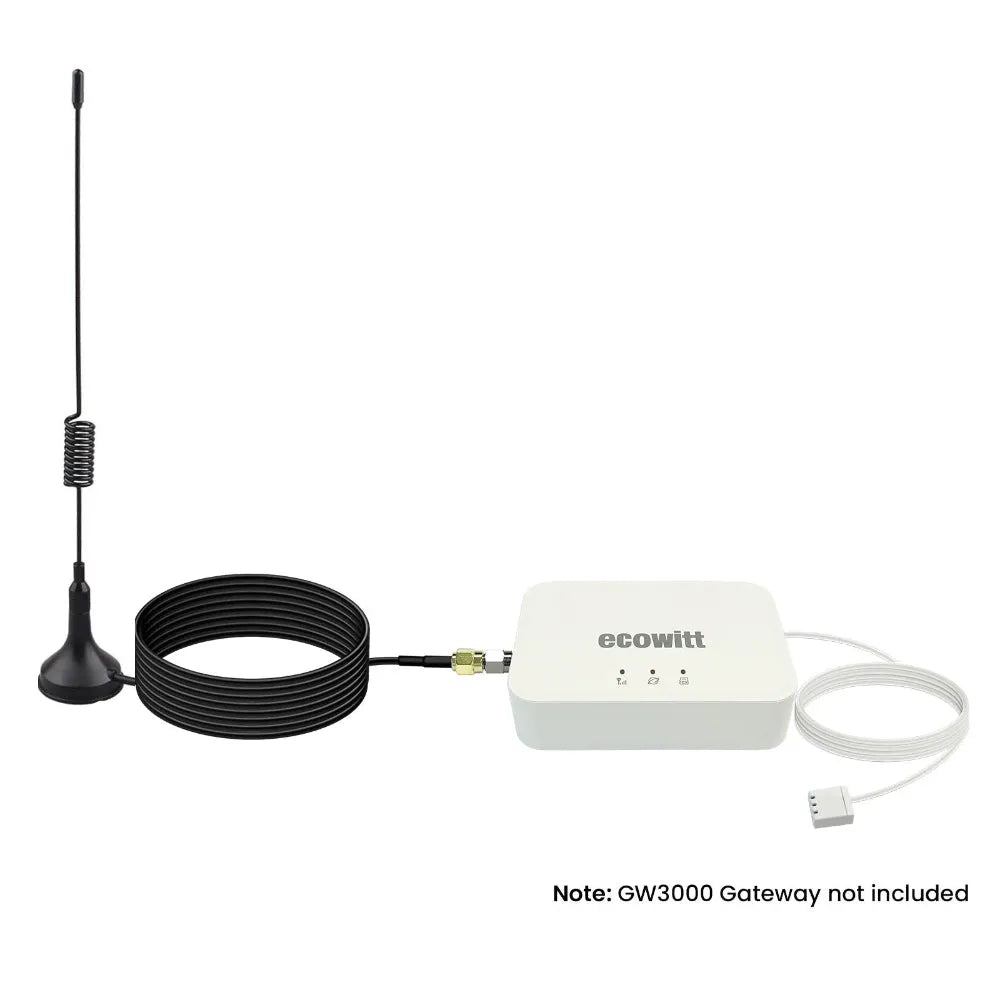

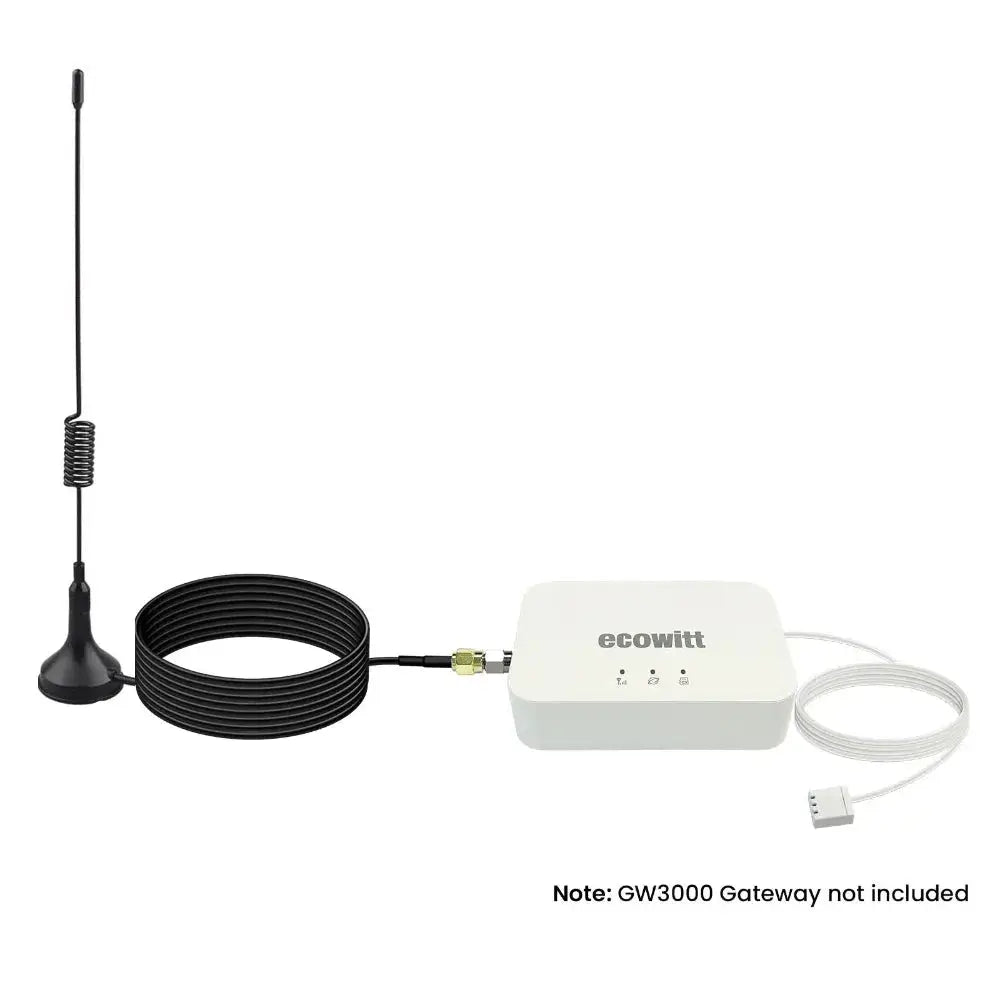

A high quality carbon-steel omnidirectional antenna with magnetic base and 3 meter cable to allow it to be located away from sources of interference offering over double the normal reception range of the standard antenna.

Tests in an open field environment increased the WH51 sensor reception from the 100 meters stated to 220 meters and the WS90 from 150 meters to 350 meters.

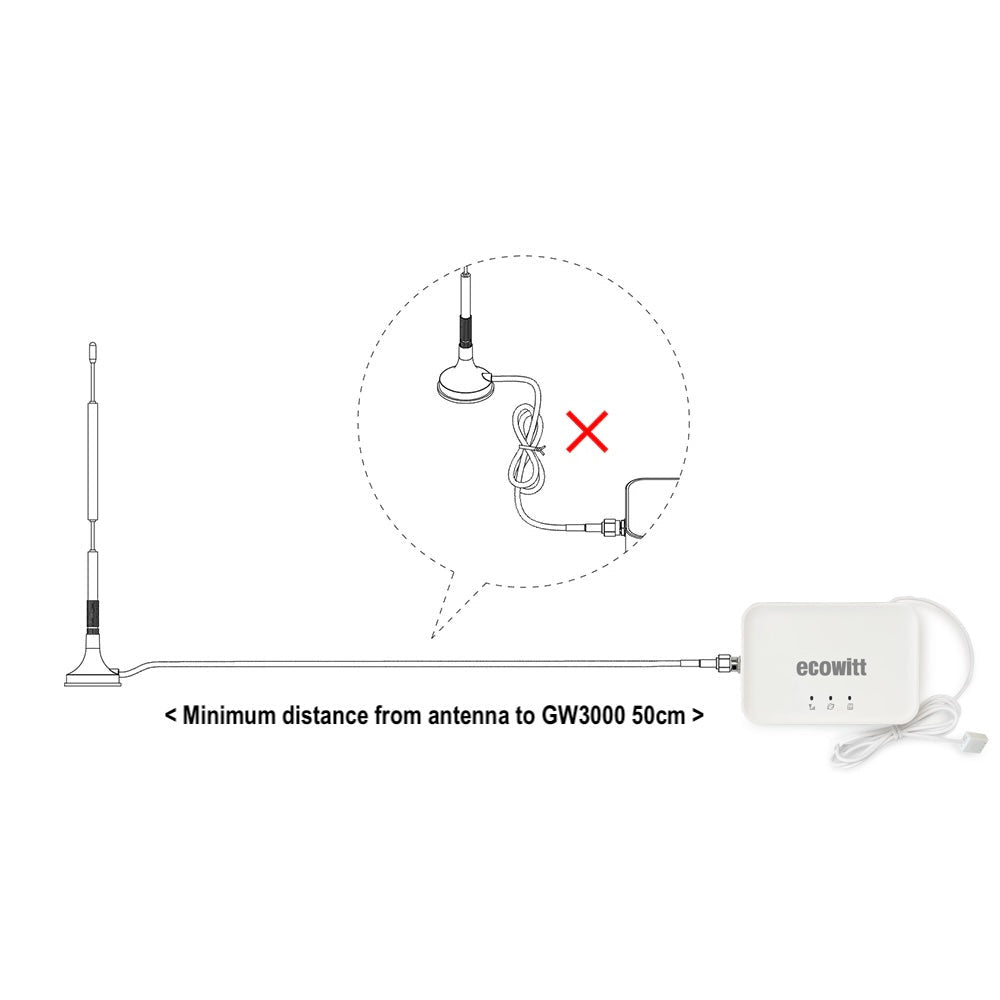

Important: Ensure that the antenna is a minimum of 50cm from the GW3000 gateway and your home WiFi router to avoid interference.

Features

360° omni-directional antenna with magnetic base
Specifically designed for the GW3000 gateway
Range up to 350 meters (open areas)
3M SMA cable
Male/female SMA adapter included
Optional 5M extension cable (≈25% signal loss)

Technical

Antenna Type	Magnetic Mount Antenna
Frequency Range	(868MHz)
Input Impedance	50Ω
V.S.W.R	< 2.2
Gain	0.9dBi
Polarization Type	Vertical
Power capacity	50W
Dimensions	110 × ⌀30mm
Connector Type	SMA-K (Female, inner thread & pinhole)
Cable Type	RG174
Cable Length	3M
Material	Carbon Steel
Weight	50g
RoHS Compliance	Yes
Operating Temperature	-45c ~ +85c

Quantity

Customer Reviews

Based on 1 review

Write a review

100%

(1)

(0)

David E.

Works well

One of my Ecowitt weather sensors was too far away from the GW3000 to get a reliable signal. This aerial has completely solved the problem. and I now get stronger signals from all sensors. Remember to use the supplied adapter if your GW3000 requries it. (I was initially confused because the aerial will screw onto the GW3000 with or without the adapter but, for some GW3000s requires the adapter to work).. The very helpful people at Weather Spares sorted me out very quickly by return email.
