Ecowitt WS85 3-in-1 Array with Sonic Anemometer & Haptic Rain Sensor

Sale

Regular price: £95.00 GBP
Sale price: £95.00 GBP
Regular price: ~~£110.00 GBP~~

UK VAT included. Shipping calculated at checkout.

No reviews

The WS85 sonic anemometer with haptic rain gauge connects wirelessly to the Ecowitt WiFi gateway to obtain wind direction, wind speed and rain readings on your system.

Features

Measures wind and rain
Sensor only for use with a gateway or console (sold separately)
After configuration, the live wind and rain data can be viewed directly on the App
When use with a gateway or console supports uploads to online services
Wind and rain sensor calibration available on the App

Unlike some other brands, the Ecowitt WS85 can be used with a variety of gateways and consoles, click here to view the latest Ecowitt sensor matrix.

Included

Wireless 3-in-1 senso array (no console or gateway)

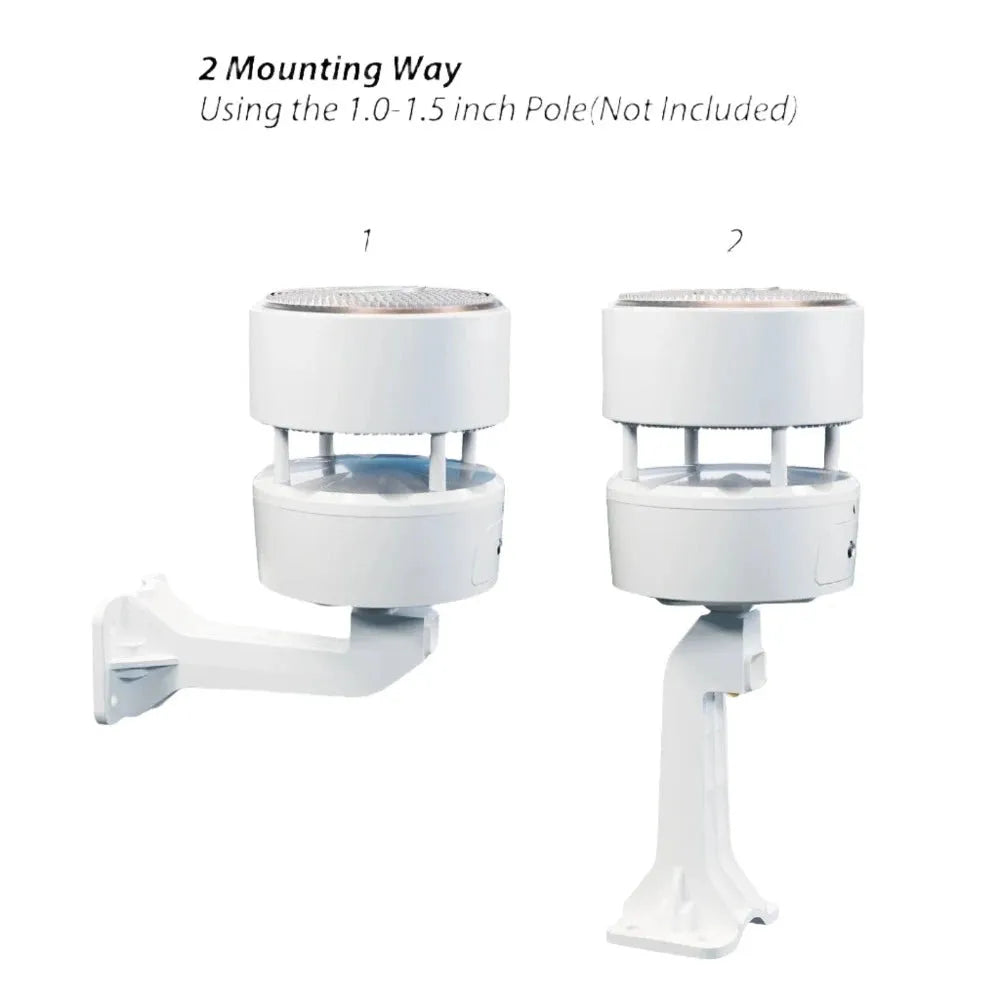

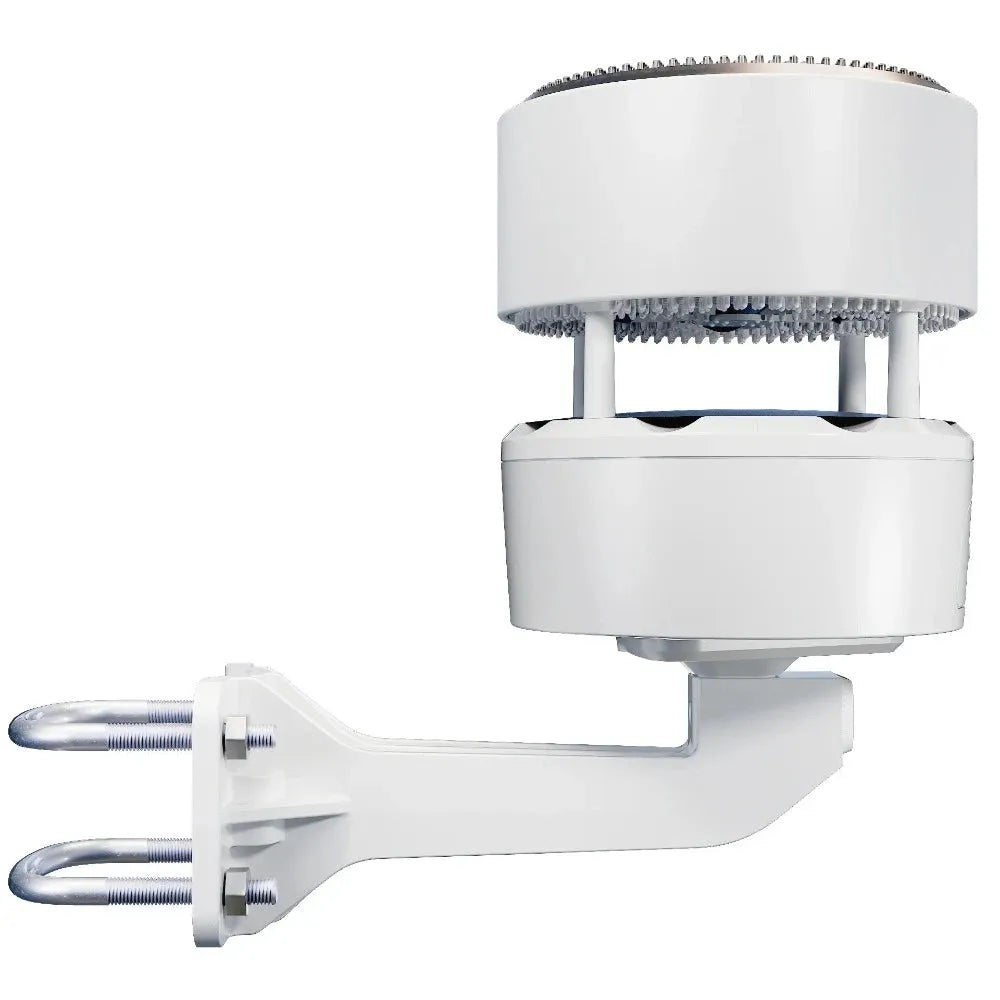

Plastic mounting arm for pole or surface fixing
Fixing U-bolts for installation on 25-50mm pole (pole not supplied as standard)
User Manual

Technical & Manual

Transmission distance in open field: 150m (490 feet)
868MHz UK and European frequency
Wind speed range: 0 – 40m/s (0 ~ 89 mph)
Wind speed accuracy: <10m/s, ±1m/s; ≥10m/s, ±10% (<22mph, ±1m/s; ≥22mph, ±10%)
Wind direction accuracy: ±15°
Rain accuracy: <5mm/h(±20%) 5~50mm/h(±10%) >50mm/h(±20%)
Rain resolution: 0.1mm
Sensor reporting interval: 8.5 seconds
Main power solar panel (built-in): 7.5V / 30mA
Backup Power: 2 x AA 1.5V Alkaline or Lithium (not included)
Battery life: 1 year
Protection: IPX5

A copy of the Ecowitt WS85 sonic wind and haptic rain sensor manual can be viewed by clicking here.

Radio Frequency:

Product variants:

{"id":42971366654168,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"GENFIXPOLE","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mounting Pole for Various Outdoor Sensors","public_title":null,"options":["Default Title"],"price":1500,"weight":395,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Mounting Pole for Various Outdoor Sensors_weatherspares_co_uk

add the 1" sensor mounting pole £15.00 ⓘ

Adding the 2.5cm / 1" diameter metal pole offers an ideal solution for mounting your outdoor sensor.

The pole is a total of 47cm in length and includes a base which can be mounted on a vertical or flat surface. Or without the base it can be used in soil to hold a rain gauge of soil sensor.

{"id":44891739488472,"title":"WS90 \/ WS85","option1":"WS90 \/ WS85","option2":null,"option3":null,"sku":"ECOWS90PACK","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ecowitt 10 meter Battery Pack Extension for Sensors (see description) - WS90 \/ WS85","public_title":"WS90 \/ WS85","options":["WS90 \/ WS85"],"price":2400,"weight":110,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Ecowitt 10 meter Battery Pack Extension for Sensors (see description)_weatherspares_co_uk

add a 10m battery extension £24.00 ⓘ

The 10 meter battery extension pack allows you to position the batteries at a more convenient height for changing. Ideal for customers that mount their sensor on a high pole or building eave.
