Ecowitt WS6210S 4G Mobile / WiFi Gateway with Solar power & Extended Range
- Regular price
- £259.00 GBP
- Sale price
- £259.00 GBP
- Regular price
-
- Unit price
- / per

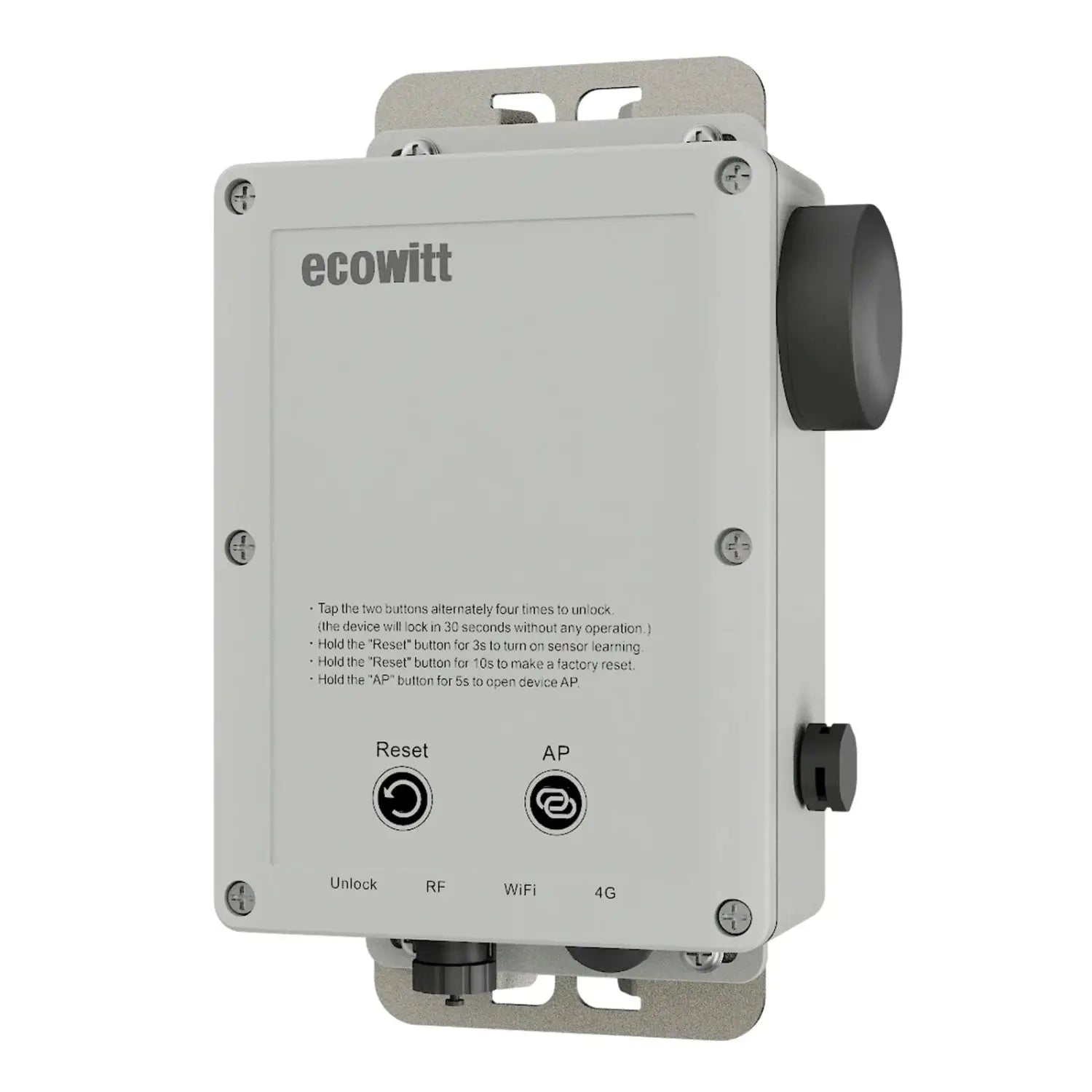

The Ecowitt WS6210S solar powered gateway is designed to monitor micro-climate change where power is unavailable. With suitable sensors added, the gateway can broadcast weather data to online weather services or user’s own weather server through selected 4G and 2G mobile data networks. Or if near enough to a suitable location WiFi.
The WS6210S now includes an external antenna extending the 868MHz sensor reception range from 100 to up to 300 meters in unobstructed locations..
The WS6210S supports both Wi-Fi and 4G connections for receiving and processing data from the sensors you add. When used is a remote location the WS6210S uses 4G for data transmission due to the lack of Wi-Fi coverage. In locations where WiFi is available the WS6210 prioritises Wi-Fi for data transmission. If WiFi disconnects, it switches to 4G to maintain continuous data flow.
Weather Data can be permanently stored in the included 8GB micro SD card. The system has a low power maintain mode such that user will never experience data loss.
Unlike some other brands, the Ecowitt WS6210S gateway can be expanded with a variety of sensors, click here to view the latest Ecowitt sensor matrix.
All of these are available to view in the App, or online via Ecowitt.net service.
Please ensure that the sensors added are 868MHz frequency.
Requirements for installation:
- Mobile signal coverage 4G or 2G (3G is no longer available in some areas)
- A compatible 4G network.
- An appropriate pole for the sensor array.
- An ongoing 4G data subscription is required after the initial free 90 days included with the SIM.
- If you are using the WittField product on WiFi only then no 4G data the subscription is not required which is £20 a year in the UK. The SIM card can be changed for another providers should you wish.
Features
- Supports Wi-Fi and 4G, prioritising Wi-Fi for data upload to the weather station server
- Sensor Support for almost all Ecowitt 868MHz sensors, viewable via a web interface and Ecowitt app
- Supports web configuration, sensor data viewing, server settings, calibration parameters and Sensor ID settings
- Compatible with Ecowitt IoT devices: WFC01 and AC1100
- Automatic timezone and network time acquisition, unit settings.
- Operates on UK/EU frequency 868MHz
- Embedded SD card for web data download
Included
-

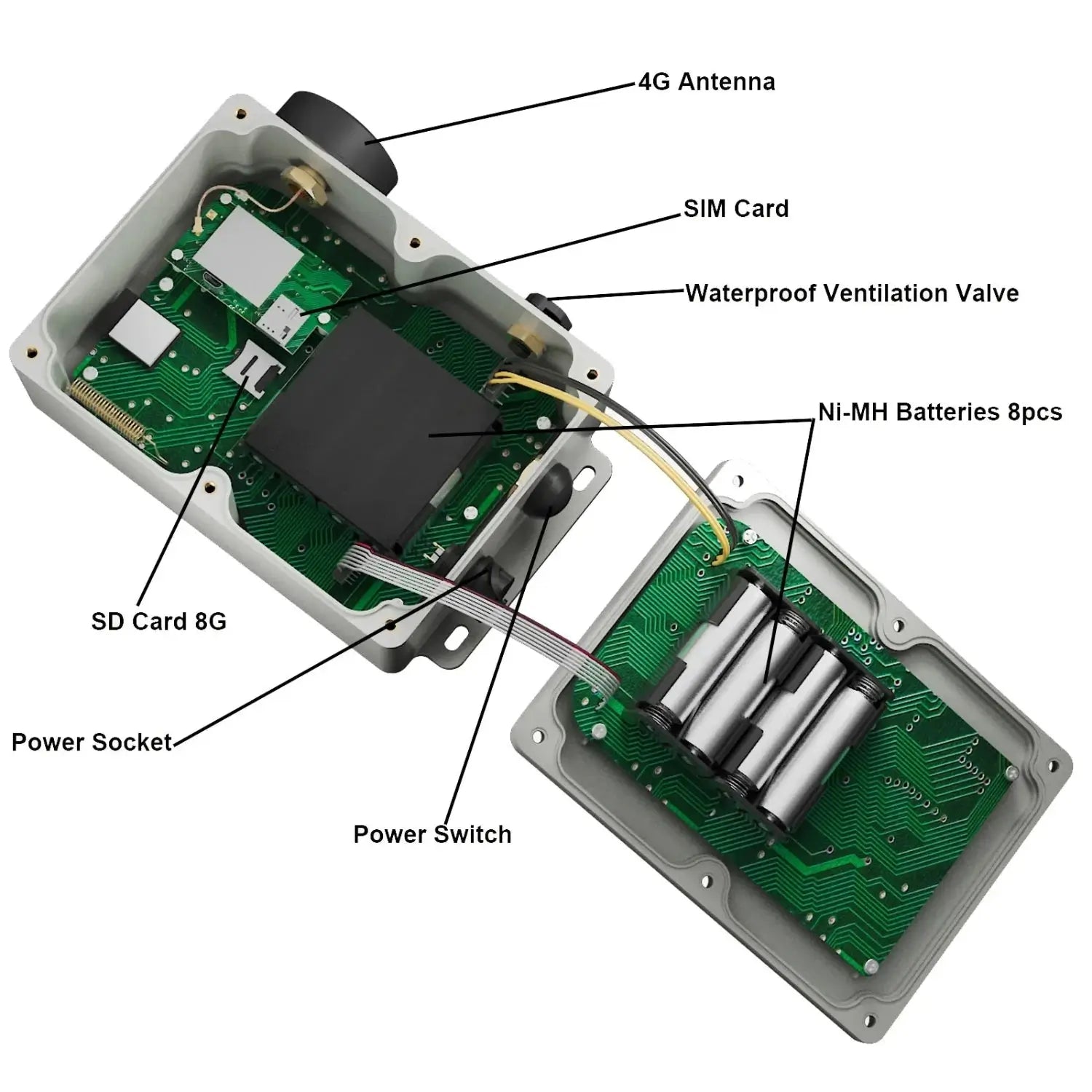

1 x WS6210S (4G & Wi-Fi Weather Station Mobile Gateway with external RF antenna)
- 6 x Stainless Steel Loops
- 2 x Hose Clamp Brackets
- 4 x M5*8 Screws
- 1 x SD13 to USB Data Cable
- 1 x User Manual
- 1 x Quick Start
- 8 x AA rechargeable NiMH batteries
- 1 x Nano-SIM card with 90 day / 300Mb data included
- 1 x Micro SD card 8G
-

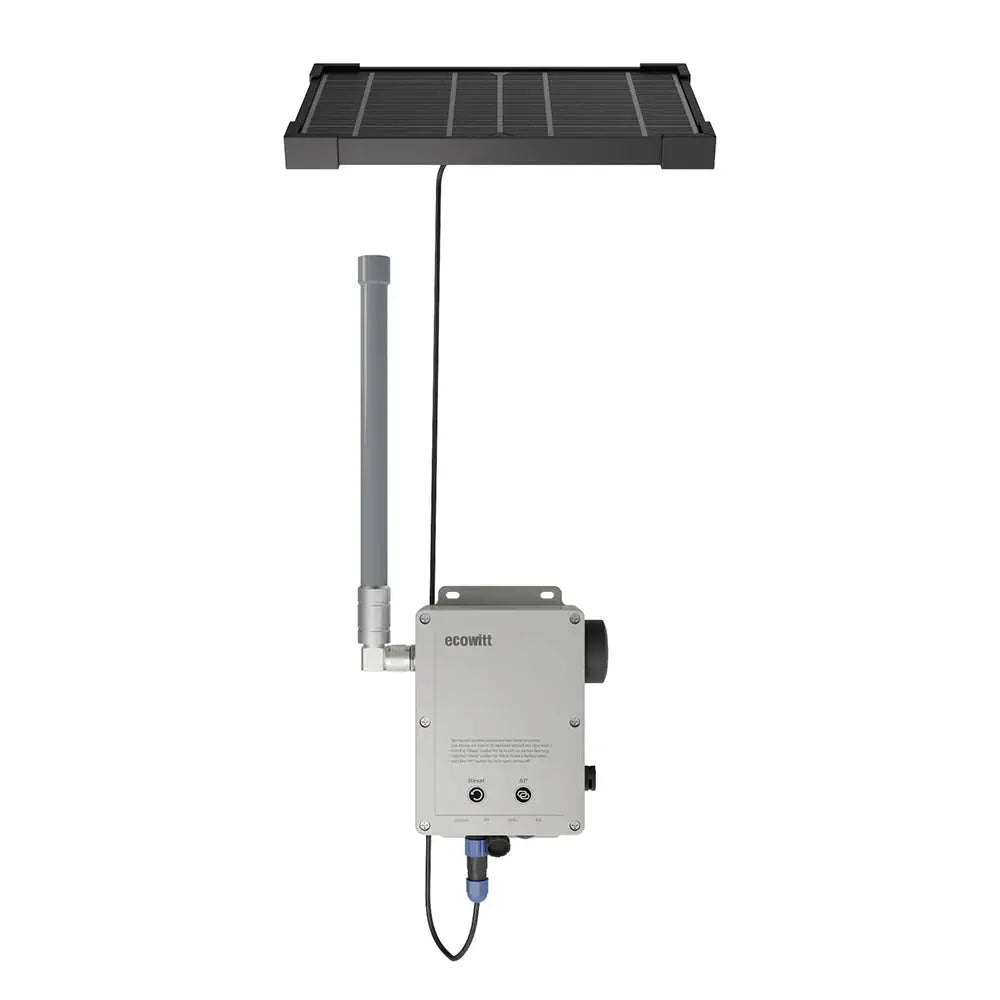

1 x Solar panel
- 1 x Galvanised Bracket for solar panel
- 3 x Screws for solar panel
Technical
|
Model |
WS6210S |
|
Name |
4G & Wi-Fi Weather Station Mobile Gateway |
|
Dimensions |
187*138*55(mm) L*W*H |
|
Weight |
694.5g (with batteries installed) 457g (WS6210 only) |
|
Sim card |
Nano-SIM |
|
SD card |
8G Micro SD |
|
Cellular and Wireless |
Support LTE 3GPP Rel.13 technology, support 4G network |
|
Supported Band |
4G LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/B66 4G LTE-TDD B34/B38/B39/B40/B41 2G GSM 850/900/1800/1900 |
|
RF Radio Frequency |
868MHz (UK & Europe) |
|
RF Radio Range |
Up to 300 meters (in open areas) |
|
Wireless Modes |
802.11 b/g/n 2.4GHz (802.11n, Max 150 Mbps) |
|
Wireless Range |
Over 30 meters (unobstructed) |
|
Power Options |
External solar panel 5 to 12V external DC power supply |
|
Indicator Light |
Unlock, RF, WiFi, 4G |
|
Buttons |
Touch button: Reset, AP Physical button: Power |
|
Operating Temperature |
-20 to 60℃ |
|
Port Material |
2-core waterproof aviation connector |
|
Battery Capacity |
4800 mAh |
|
Battery Life |
20 days (5 minute upload, AP off, not connected to IoT Subdevice) 10 days (5 minute upload, AP off, connected to IoT Subdevice) |
|
Power Consumption based on 5 minute upload interval |
0.06W (AP off, not connected to IoT) 0.12W (AP off, connected to IoT) 0.9W (AP on, connected to WiFi, not connected to IoT) 0.96W (AP on, connected to WiFi, connected to IoT) |
|
Upload intervals |
Default: 5 minutes Setting options include:"off, 1, 2, 3, 4, 5, 10 minutes" Shorter posting intervals will result in increased power consumption. |
Product Warranty
2 year warranty from date of purchase from May 2025, 1 year on purchases before this date - return to supplier. Batteries are excluded from warranties as they are classed as a consumable item.
See our terms and conditions for full details of our warranty details.
Most customers have spare 5 volt USB power adapters already so one is not included from the manufacturer. This option allows one to be added if you require it.
✕
