Ecowitt WS3910_C 7.5" Colour Display Console with CO2 Sensor

Regular price
£110.00
Sale price
£110.00
Regular price
Tax included. Shipping calculated at checkout.
Radio Frequency:

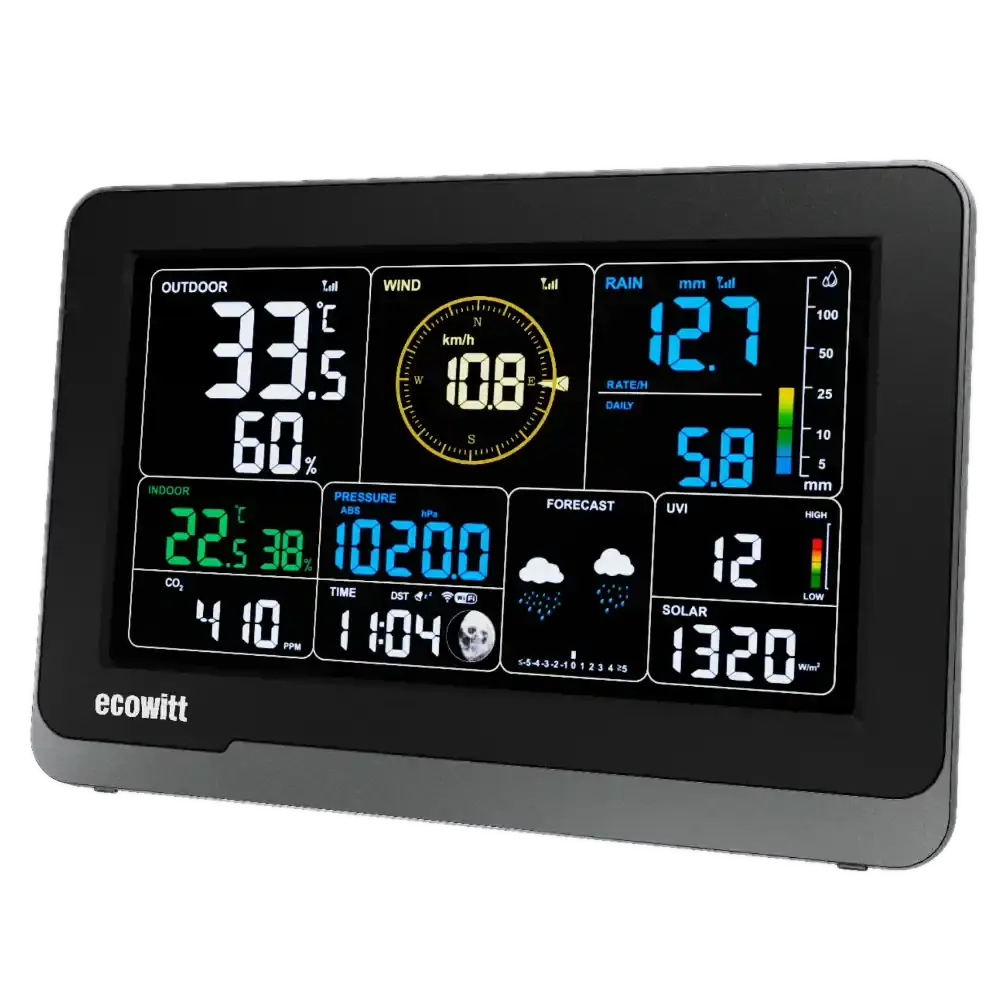

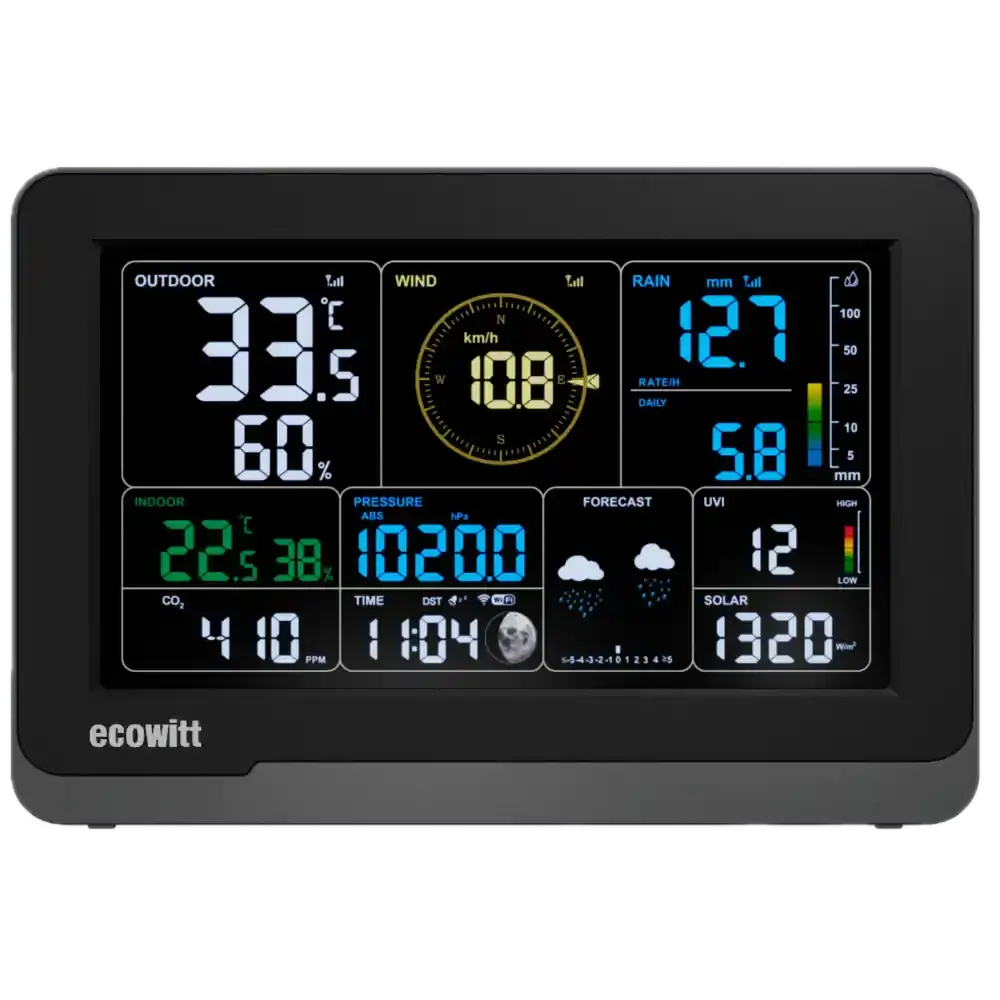

The Ecowitt WS3910 is a colour 7.5" Wi-Fi LCD large screen weather station console which includes an indoor CO2 sensor as well as monitoring both indoor and outdoor conditions.

It has built-in temperature, humidity, CO2 and barometric pressure sensors and can connect to almost all Ecowitt transmitters on the 868MHz frequency. It receives sensor data including wind speed, wind direction, rainfall, UV, solar radiation, outdoor temperature, outdoor humidity, dew point, feels like, CO2, PM1.0, PM2.5, PM10 and more.

It is also one of the first consoles to support connecting IoT devices, such as the Ecowitt WFC01 and AC1100, achieving smart control through Ecowitt App.

The WS3910 connects to your 2.4GHz Wi-Fi network for viewing uploaded data from anywhere on your phone, tablet, or computer browser, all for free when uploaded to Ecowitt.net

The WS3910 needs to be used with your existing sensors to receive outdoor weather data and is not a standalone product.

Unlike some other consoles, the Ecowitt WS3910_C can be used with a variety of sensors, click here to view the latest Ecowitt sensor matrix  and also view further details of which sensors are visible on the screen in the Technical Tab above.



  • WS3910_C colour console
  • Power cable, connects to standard USB power supply (5v 1 Amp minimum required)



Model WS3910
Name Weather Station (receiver)
Dimensions 209×28.5×142.5(mm)
Screen Size 169×94.5(mm)
Weight 366(g)
Casing Material  ABS
Indoor Temperature Range Accuracy -9.9°C to 60°C(14°F to 140°F) / ±0.2°C(±0.4℉)
Indoor Temperature Resolution 0.1°C(0.2℉)

Indoor Humidity Range / Accuracy

1% to 99% / ±2%
Indoor Humidity Resolution 1%
Barometric Pressure Metering range 300 to 1100 hPa (8.85 to 32.5 inHg)
Barometric Pressure Metering accuracy ±1.5hpa (absolute pressure ); ±2hpa(relative pressure)
Barometric Pressure Metering resolution 0.1 hPa (0.01 inHg)
Photo-acoustic NDIR CO₂ Metering range
0 to 40000 ppm
Photo-acoustic NDIR CO₂ Metering accuracy ±(50ppm + 5% of reading) when 400 to 2000 ppm
Photo-acoustic NDIR CO₂ Metering resolution 1ppm
Photo-acoustic NDIR CO₂ Accuracy drift per year ± (5ppm + 5% of reading)
Indoor Reading Update Interval About 1 minute
RF Connection Frequency 868MHz (UK/EU)
RF Reception Range Over 100 meters (in open areas)
WLAN 802.11 b/g/n 2.4 GHz
(802.11n, Max 150 Mbps)
WLAN Range Over 30 meters (in open areas)
Console Operating Temperature -10°C to 50°C(14℉ to 122℉)
Power Supply 3.5mm 5V DC to USB or 2 x AA Backup Batteries (not included)
Backup Battery Life 1 Day





Sensor Data Can be Displayed directly on the Console:

Sensor Model

Max QTY

Displayed Readings

WS90

1

Outdoor temperature & humidity, light, UV, wind speed/direction, rainfall

WS80

1

Outdoor temperature & humidity, light, UV, wind speed/direction

WS69

1

Outdoor temperature & humidity, light, UV, wind speed/direction, rainfall

WS68

1

Light, UV, wind speed/ direction,

WH40

1

Rainfall

WN32P

1

Indoor temperature, humidity and pressure

WN32

1

Outdoor temperature and humidity

WH45/WH46

1

WH45: CO2, PM2.5, PM10, temperature and humidity

WH46: CO2, PM1.0, PM2.5, PM4.0, PM10, temperature and humidity

WN31/WN30/WN36

8

WN31: Temperature and humidity

WN30: Temperature probe sensor

WN36: Pool temperature


Sensor Data Can Only be Uploaded for viewing in the Cloud

Sensor Model

Max QTY

Function

WH57

1

Lightning detection

WH41/WH43

4

PM2.5 Air Quality

WH55

4

Water leak detection

WH51L

8

Soil moisture

WH51

WN34L/S/D

8

Soil/liquid temperature

WN35

8

Leaf wetness


IoT Device

Sensor Model

Max QTY

Function of Device

WFC01

16

Smart water timer

AC1100

Smart plug


A copy of the WS3910 console instructions can be downloaded by clicking here

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
N
Nigel M.
A worthy alternative to the Ecowitt HP2550/60 console.

As I already own a HP2550 console as part of the HP2551 package, I wanted another console for my bedside table that wasn't going to break the bank and this console fits the job nicely - especially as, unlike the HP2550/60, the WS3910 has an alarm clock facility, meaning I no longer need a separate alarm clock on the bedside table as well. The WS3910 also has a CO2 sensor which the HP2550/60 and WS3900 do not.

Whilst the WS3910 is a capable console, unlike the HP2550/60, the WS3900/10 rely heavily on the Ecowitt and WS View Plus mobile apps for configuration once you have entered your WiFi router's SSID and WPA2 password into the Ws3910 by connecting your iPhone or Android smartphone to the WS3910 internal WiFi hotspot which is auto-enabled 'out of the box' and then using the WS3910's MAC address (acquired from the main console using the SET button) and your smartphone's web browser to connect to the WS3910's internal web page. Once the Ws3910 is connected to your router's WiFi, the built-in WiFi hotspot auto-disables itself until a factory reset is performed although you can re-enable it again at any time via the WSView app although for security reasons this isn't recommended. The WSView app is also needed to update the WS3910 WiFi and main console firmware sets which are separate from each other and must be updated separately.

One useful option that does not seem to be detailed in either the instructions or the product specs is that via the WSView app, you can set the display to auto turn off and on again at user-specified times - really useful for use on a bedside table for when you want to ge to sleep - especially as the display brightness setting (which at maximum setting is VERY bright) ideally needs another notch for a very dim display as the current lowest setting is still quite bright.

Weather data is easily be uploaded to the Ecowitt server using the WSView app to the same servers (e.g. Weather Underground and even your own weather server etc.) just as you can with the HP2550/60 console.

Installation for me was pretty straightforward and took around 45 mins to complete - including personalising the settings (air pressure/rain/temperature units etc.).

The Pros:
Good, clear instruction manual.
Has user-adjustable auto display on/off facility.
Has built-in CO2 sensor (Ws3910 only)
Although the product description says the WS3910 does not come with a mains adapter, mine came with a 5V 1 amp adapter that is about the size of a standard 13 amp plug with a single USB A socket on the bottom.
Doubles up as an alarm clock that is plenty loud enough!
Very bright, clear display.

The Cons:
Unlike the HP2550/60, the Ws3900/10 needs both the Ecowitt and WSView Plus apps to setup and configure the console.
Not a deal-breaker, but to me, the event/hourly rainfall rate displays and daily total sections are the wrong way round i.e. the daily total should be the larger section above with the event/hourly rate section being the smaller one underneath.
The display brightness setting could do with an extra 'very dim' setting as the current dimmest setting is too bright for sleeping at night, but again, not a deal-breaker as the display can be auto turned off and on again.
Not all the weather info from every sensor can be displayed on the WS3910 as it can on the HP2550/60 e.g. the WH57 lightning detector info cannot be displayed along with the WH46 PM4.0 info and these can only be viewed in the Ecowitt app. Check the Ecowitt sensor-console compatibility table for further details.

Overall, a competent weather console that's a decent budget alternative to the HP2550/60 console and thus recommended for those whose budget just can't stretch to the HP2550/60 console AND it has a built-in alarm clock!
