Ecowitt WS3801/WS3901 7.5" Display, 7-in-1 Array with Haptic Rain & Sonic Wind Sensor

Regular price: £225.00 GBP
Sale price: £225.00 GBP
Regular price

UK VAT included. Shipping calculated at checkout.

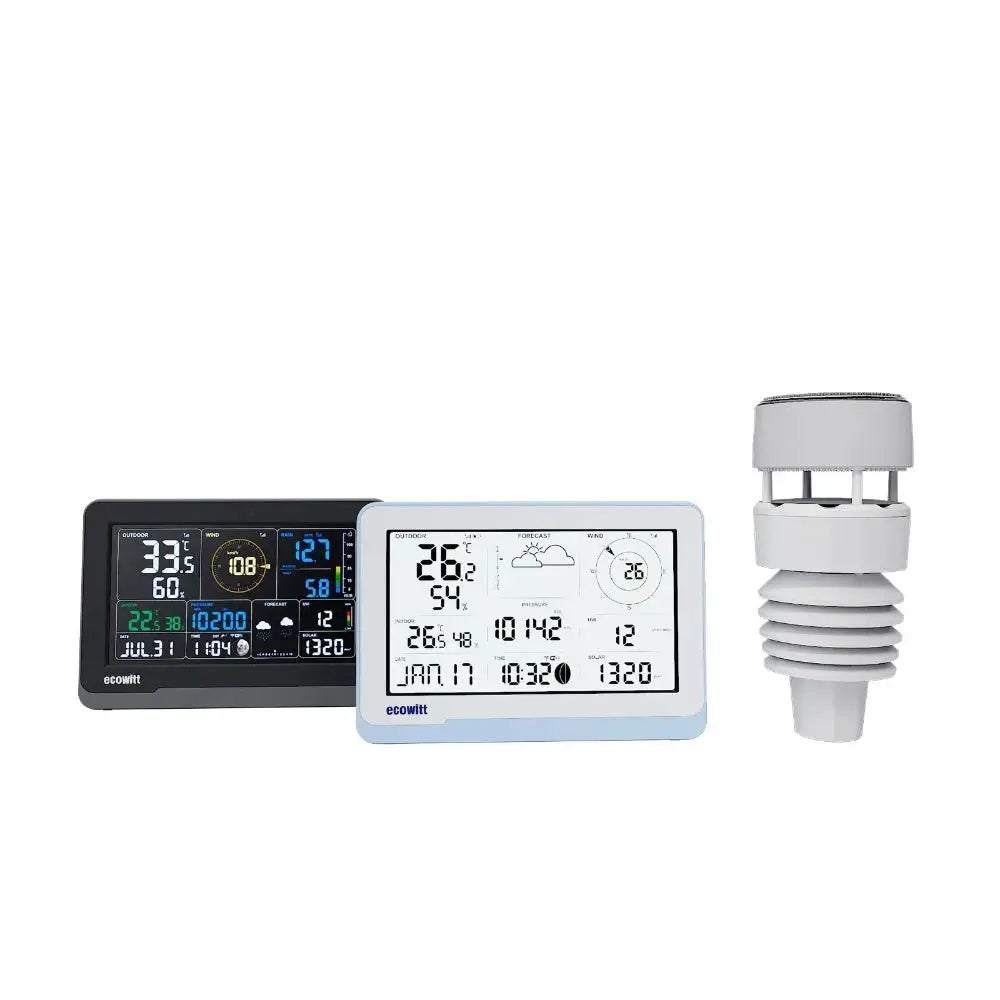

The Ecowitt WS3801 is a mono screen weather station and the WS3901 the colour equivalent. Both weather stations have a large 7.5" LCD display with Wi-Fi and display both indoor and outdoor conditions.

These are some of the first consoles to support connection to the Ecowitt Internet of Things (IoT) devices, such as the Ecowitt WFC01 and AC1100, achieving smart control through the Ecowitt App.

The console connects to your 2.4GHz Wi-Fi network for viewing uploaded data from anywhere on your phone, tablet, or computer browser, all for free when uploaded to Ecowitt.net

The display has built-in temperature, humidity and barometric pressure sensors receiving readings from Ecowitt sensors on the 868MHz frequency.

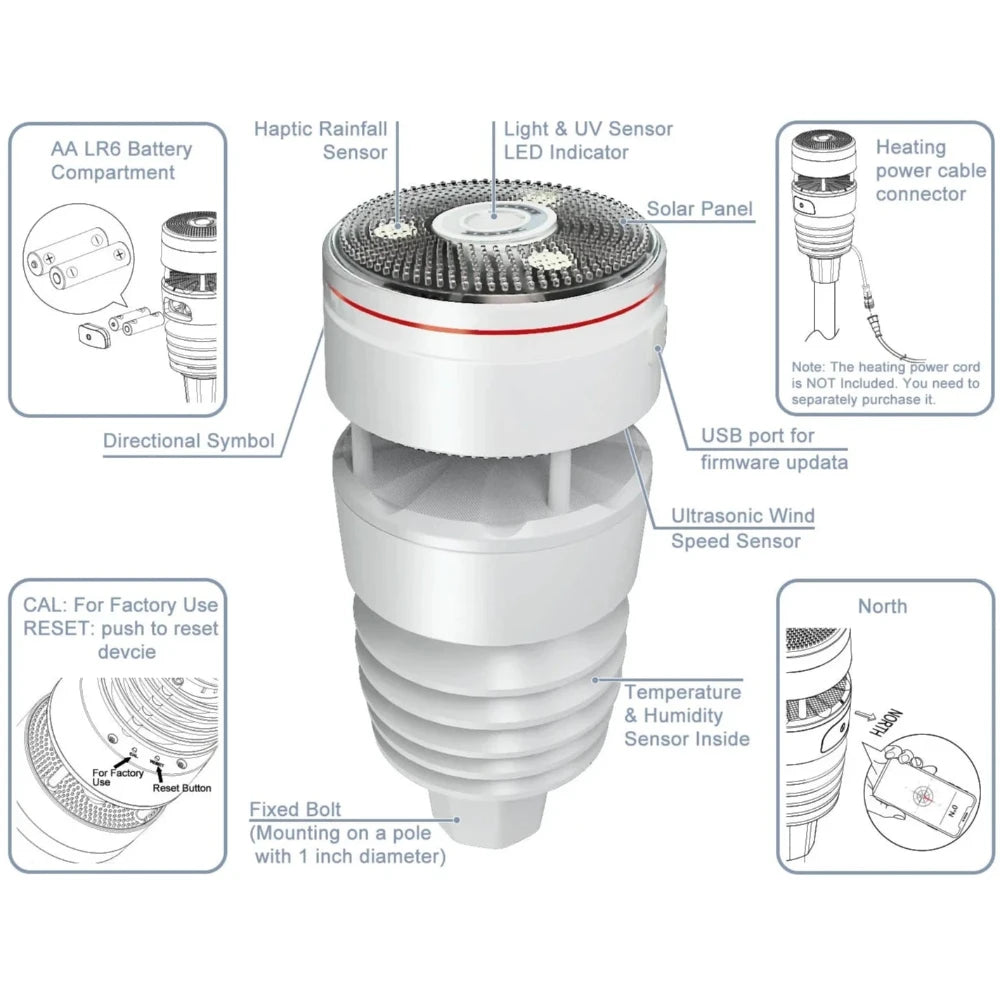

Included is the WS90 7-in-1 sensor array which transmits sonic wind speed & direction, haptic rainfall, UV, solar radiation, temperature and humidity to the console. The 7-in-1 sensor array also includes a solar panel to power the unit during daylight and extend the battery runtime.

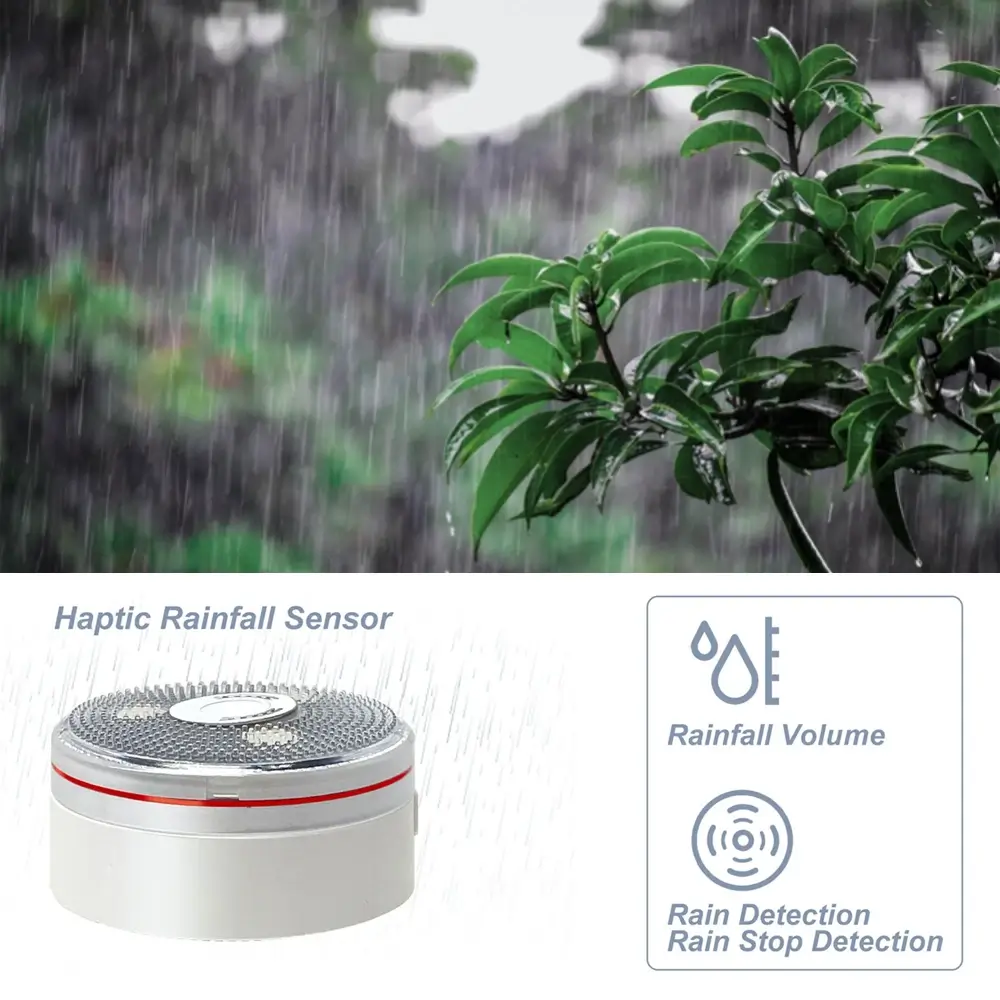

The WS90's unique design no longer uses the traditional tipping bucket rain gauge, but a haptic sensor which measures rainfall. The revised rainfall sensor is slightly sloped to improve accuracy and prevent rain pooling and also includes rain start detection before any measurable rain has fallen.

Includes

The package contains:

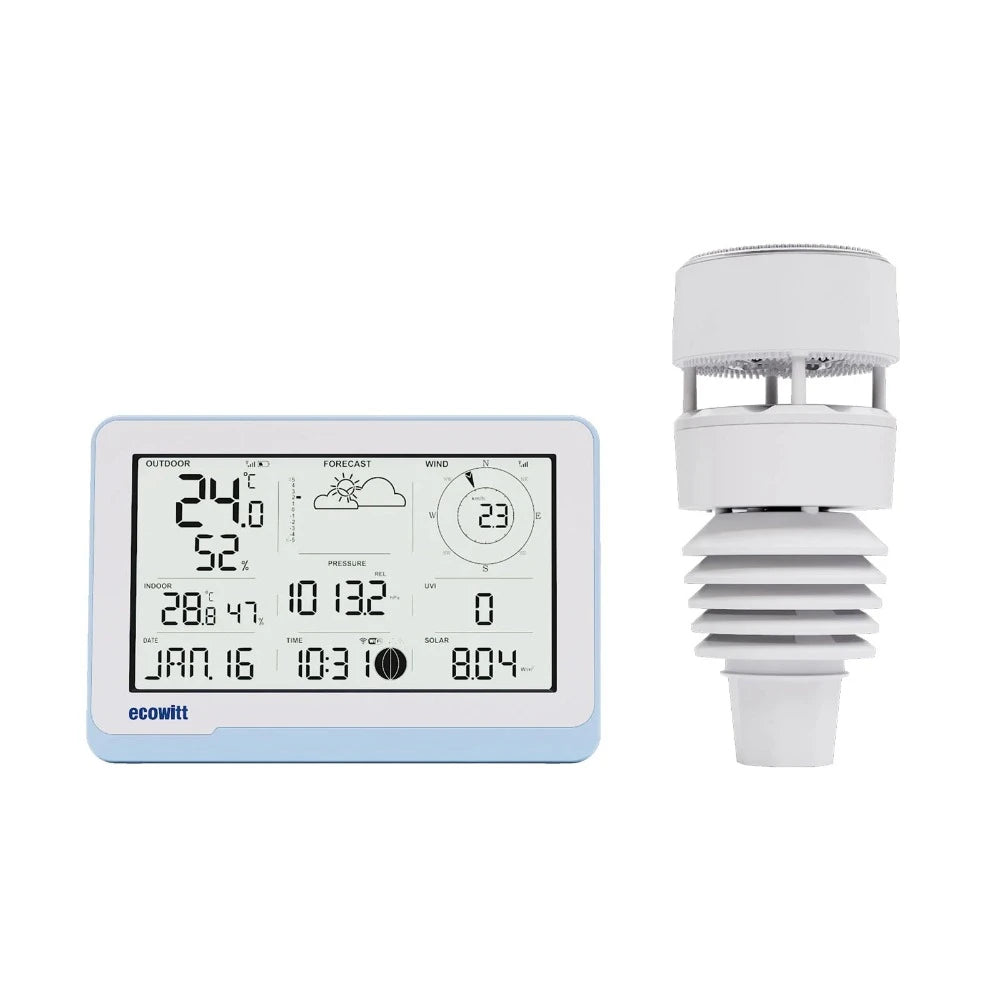

Either WS3800AE mono 7.5" console

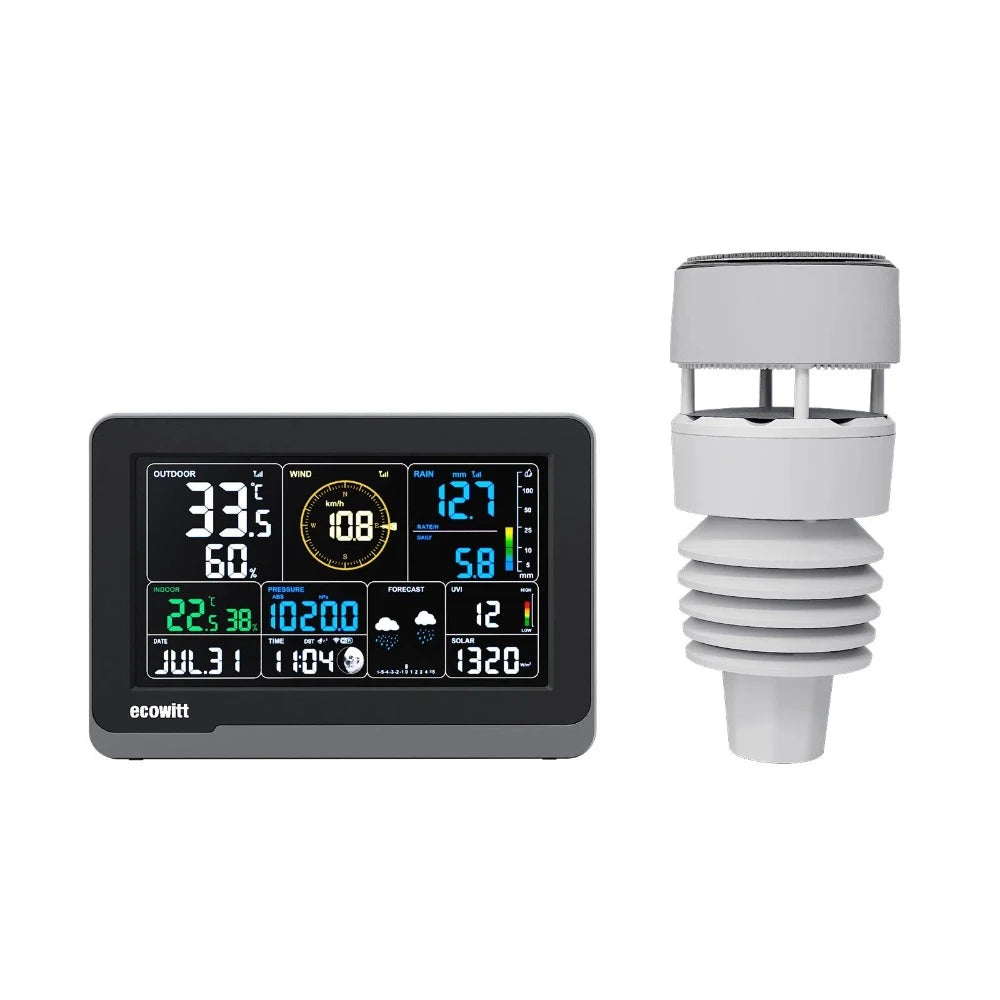

Or WS3900AE colour 7.5" console
UK Power Adapter
WS90AE Haptic 7-in-1 sensor array
Requires 5 x AA batteries (not included)

Technical & Manual

Station features:

Either WS3800 Mono 7.5" LCD console
or WS3900 Colour 7.5" LCD console
Five icon forecast
Internet controlled clock for accuracy
Indoor temperature and humidity
Solar and battery powered 7-in-1 outdoor sensor with

Outdoor temperature and humidity
Haptic rain measurement
Sonic wind speed and direction sensor
UV sensor
Light sensor for measurement in Lux 0-400k, fc or w/m2

Pressure measurement in hPa, historical pressure for last 12, 24, 48 and 72 hours
Pressure trend
Daily minimum and maximum values
Measurement alarms
External sensor calibration
868MHz UK and EU frequency (AE suffix)
Mains powered with backup battery (1 day backup)
2.4GHz WiFi with 30 meter unobstructed transmission range
FREE data upload to Ecowitt.net, Weather Underground, Weather Cloud & your own customer server
Sensor signal reception indicator
Mountable external WS90 sensor on pole up to 25mm diameter (1 inch)

Electronic manuals for the various components can be downloaded below:

Sensor Data Can be Displayed directly on the Console:

Sensor Model	Max QTY	Displayed Readings
WS90 (included)	1	Outdoor temperature & humidity, light, UV, wind speed/direction, rainfall
WS80	1	Outdoor temperature & humidity, light, UV, wind speed/direction
WS69	1	Outdoor temperature & humidity, light, UV, wind speed/direction, rainfall
WS68	1	Light, UV, wind speed/ direction,
WH40	1	Rainfall
WN32P	1	Indoor temperature, humidity and pressure
WN32	1	Outdoor temperature and humidity
WH45/WH46	1	WH45: CO2, PM2.5, PM10, temperature and humidity WH46: CO2, PM1.0, PM2.5, PM4.0, PM10, temperature and humidity
WN31/WN30/WN36	8	WN31: Temperature and humidity WN30: Temperature probe sensor WN36: Pool temperature

Sensor Data Can Only be Uploaded for viewing in the Cloud：

Sensor Model	Max QTY	Function
WH57	1	Lightning detection
WH41/WH43	4	PM2.5 Air Quality
WH55	4	Water leak detection
WH51L	8	Soil moisture
WH51	8	Soil moisture
WN34L/S/D	8	Soil/liquid temperature
WN35	8	Leaf wetness
WN38	1	Black Globe Thermometer / Wet Bulb Globe Temperature

IoT Device：

Sensor Model	Max QTY	Function of Device
WFC01	16	Smart water timer
AC1100		Smart plug

To check which products this item can be used with click here to view the latest Ecowitt sensor matrix.

Product variants:

Mounting Pole for Various Outdoor Sensors_weatherspares_co_uk

add the 1" sensor mounting pole £15.00

Ecowitt Ultrasonic Anemometer Heater Power Supply with Cable_weatherspares_co_uk

optional anemometer heater 10m £39.00

optional anemometer heater 20m £49.00

Bird Deterrent Z-spikes for Rain Funnel or Sonic Anemometer_weatherspares_co_uk

add bird deterrant spikes £16.00

Ecowitt 10 meter Battery Pack Extension for Sensors (see description)_weatherspares_co_uk

add a 10m battery extension £24.00

WS90+WS3901 combo

After one week, I am pretty happy with this Weather Station, not least because I am back on Weathercloud, so can easily see my own info on any web connected device as well as even more info on the console.
Set up using the very comprehensive manual was not very easy, but was somehow successful.
Really a native English speaking expert needs to write 'setup notes' related to users operating software (in my case Win 11), which did not seem to have the same responses as shown in the manual, whose B&W printing was rather indistinct; but I hacked my way through the manual to get going. Though it appears to me the console allows many more presettings than I have already found!

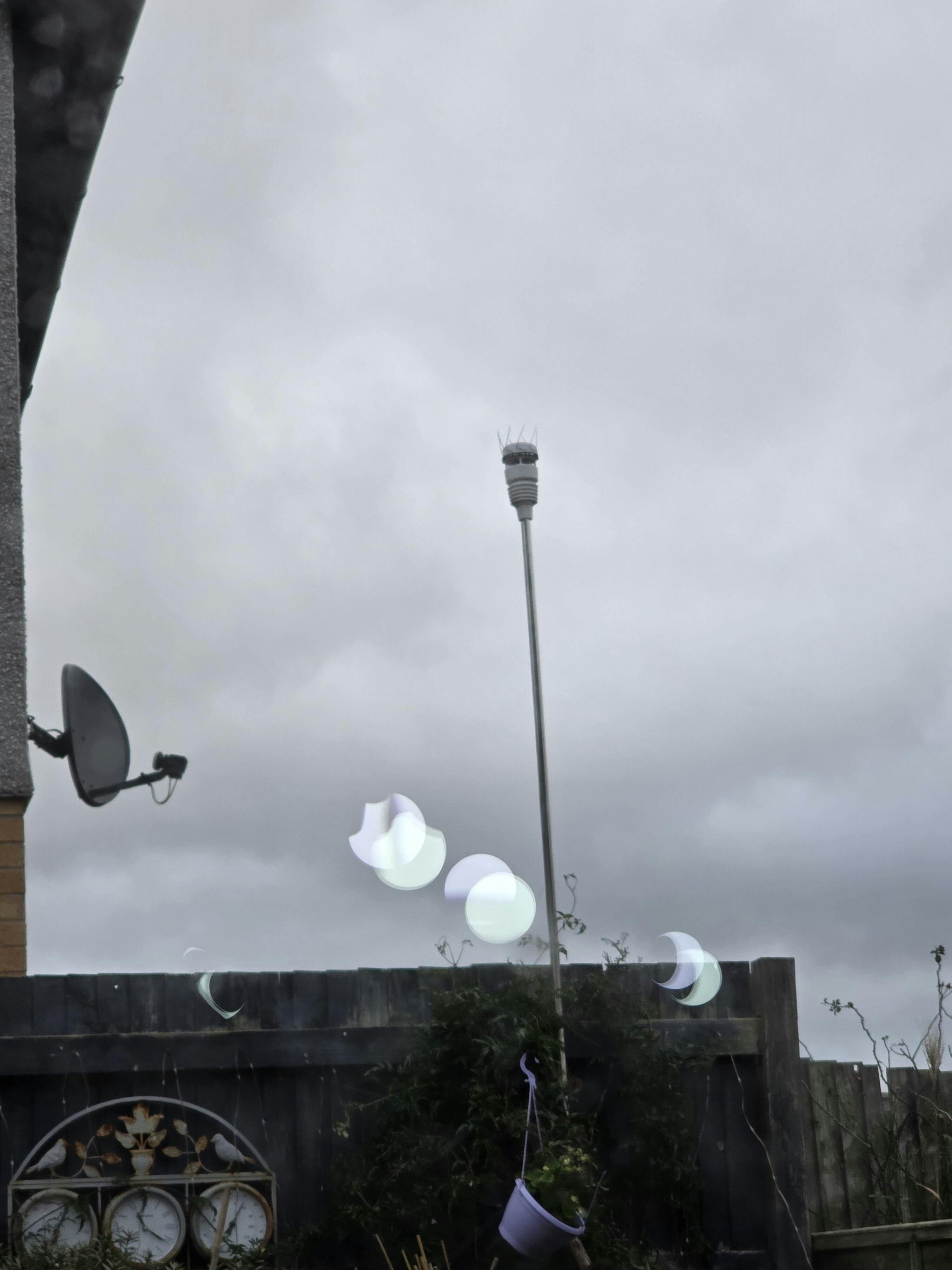

Amusingly, I immediately missed a physical wind speed and direction indication that I can see on the pole, so have installed an old pair not connected but just to look at...

WS90+WS3901 combo

7.5" Colour (WS3901) / 868MHz UK/EU

A great little device!

This unit is great for a small footprint, and very accurate. It comes well packaged and paired with the screen with ease, the only thing you need to supply is two AA batteries and the one inch pole (standard TV aerial one) the wind direction monitor is surprisingly good compared to the traditional type which tend to fail over time. Just download the Ecowitt app and follow the printed manual in the box (FULL SIZE MANUAL) and your up and ready to setup to use!. On a side note the customer service here is outstanding and replied to my questions within the hour.
