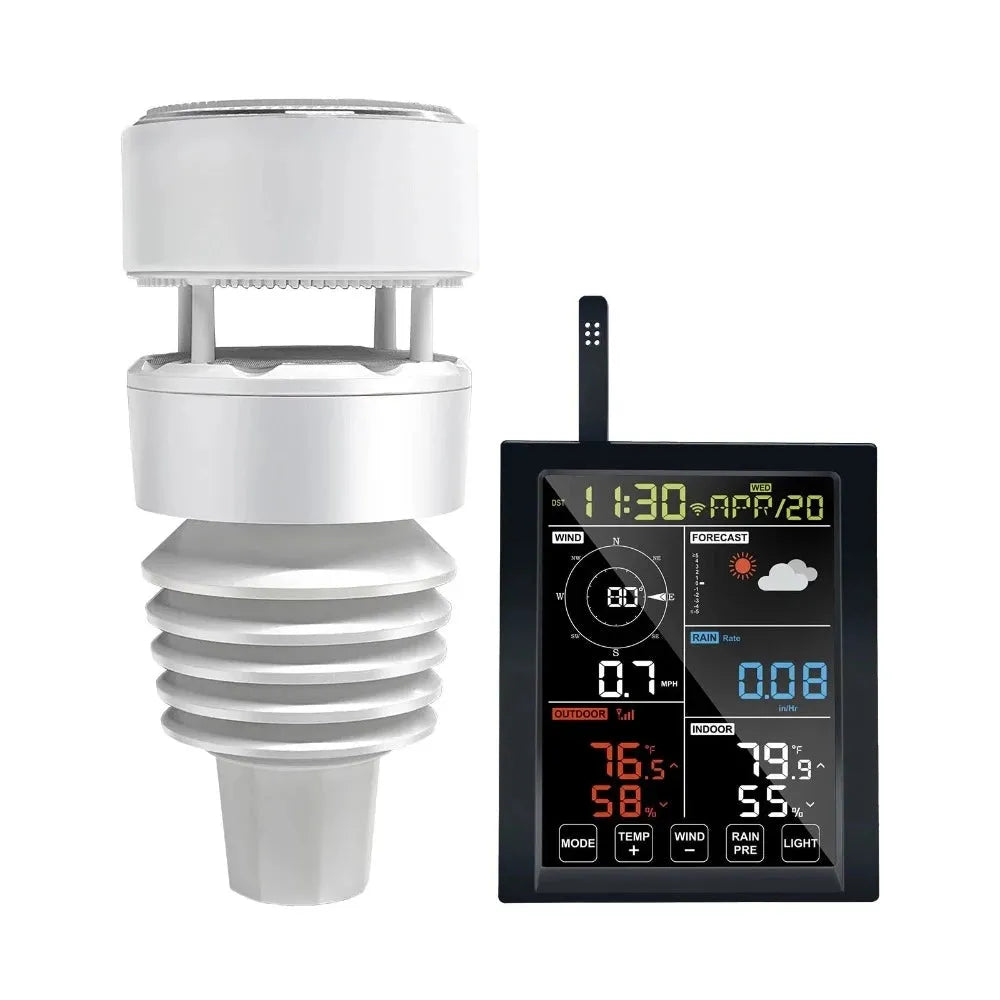

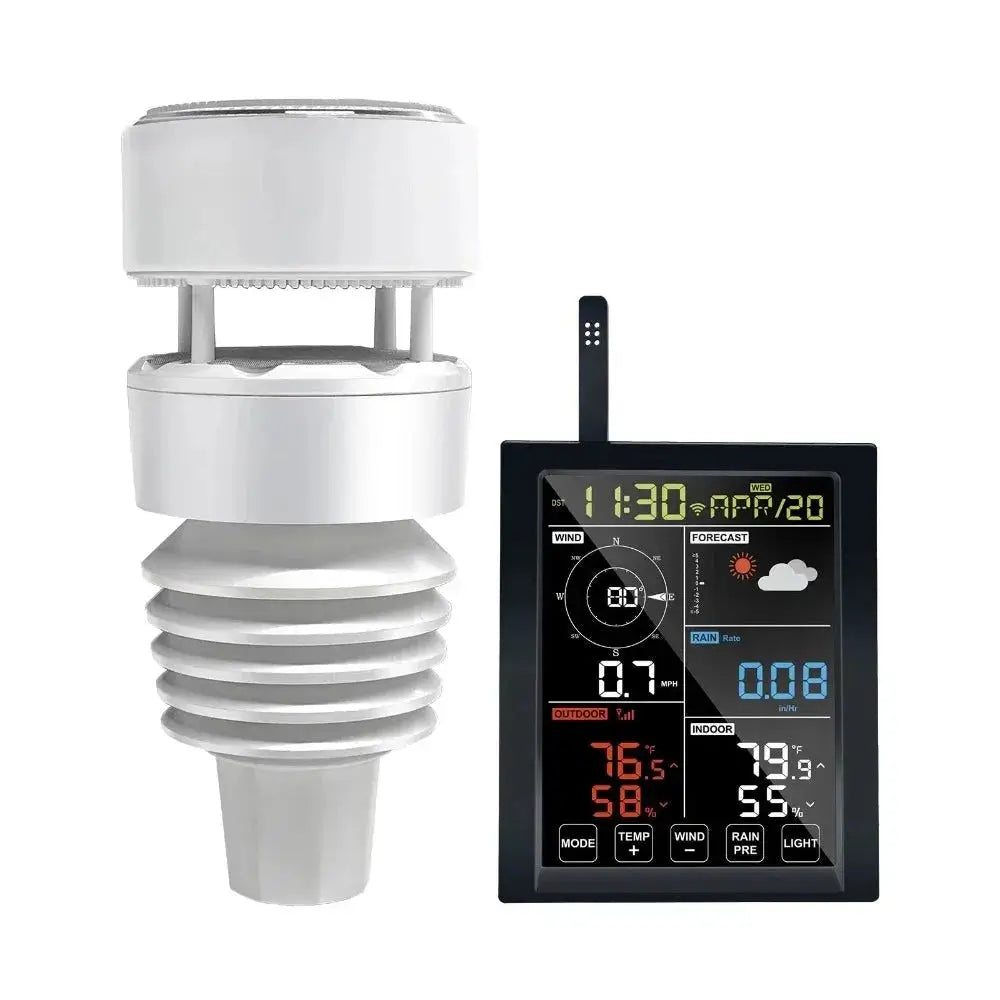

The Ecowitt WN1981 weather station comprises two components the 7-in-1 sonic anemometer with haptic rain gauge and also the new design LCD display.

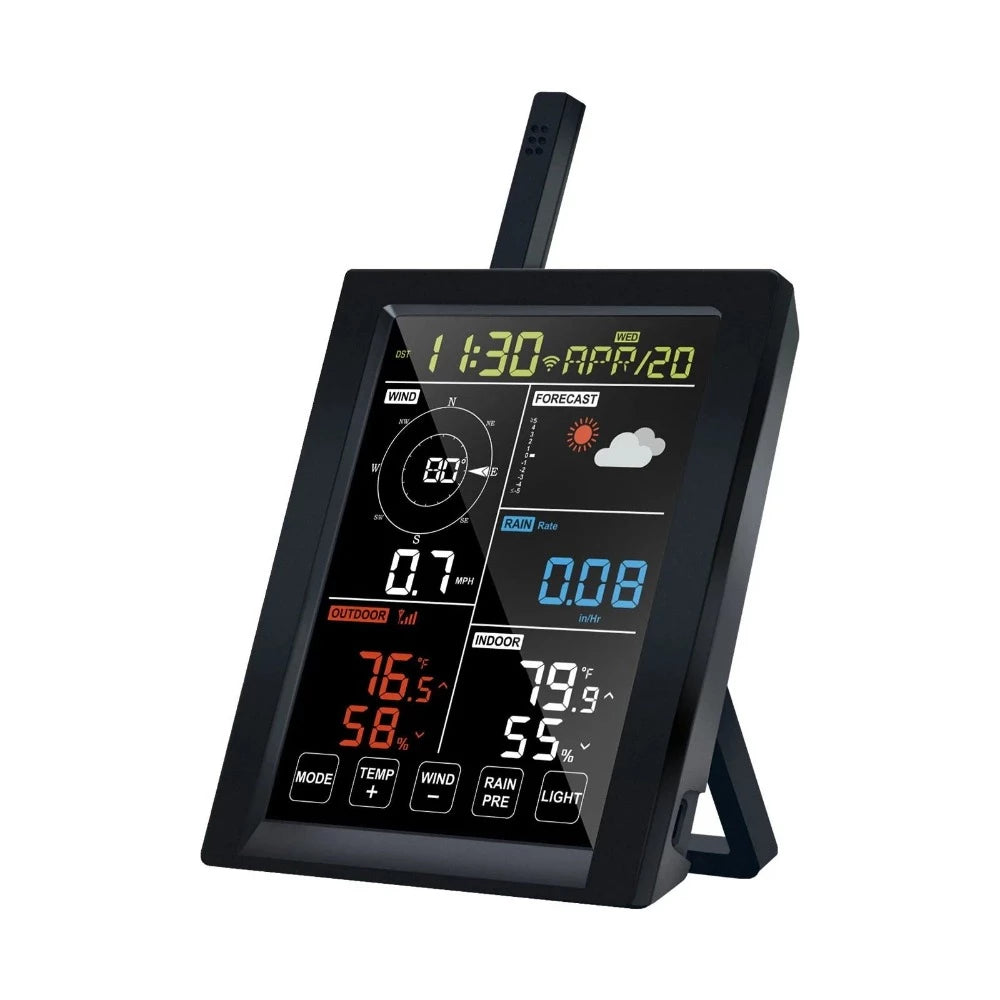

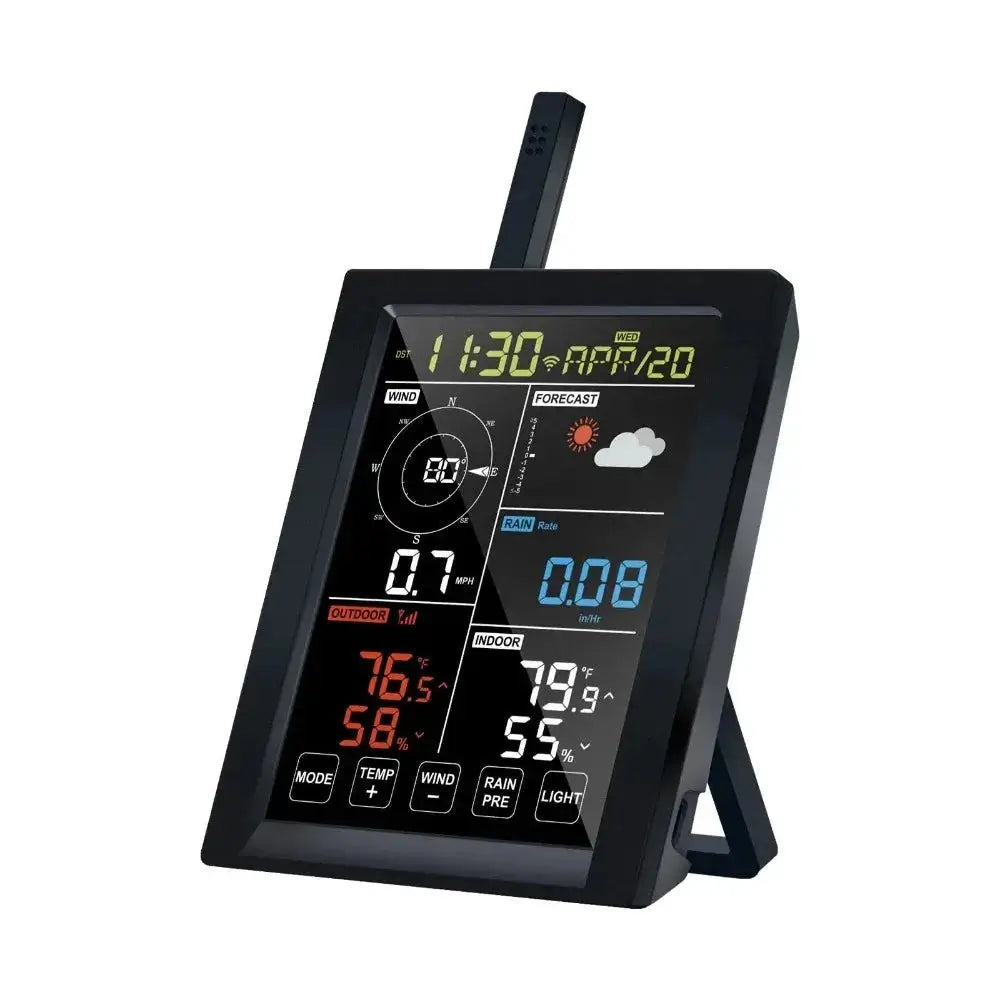

The compact LCD colour display includes inbuilt temperature, humidity, atmospheric pressure sensors and has front touch controls making for ease of use. The console also includes built in WiFi to allow for received weather data to be uploaded to online services.

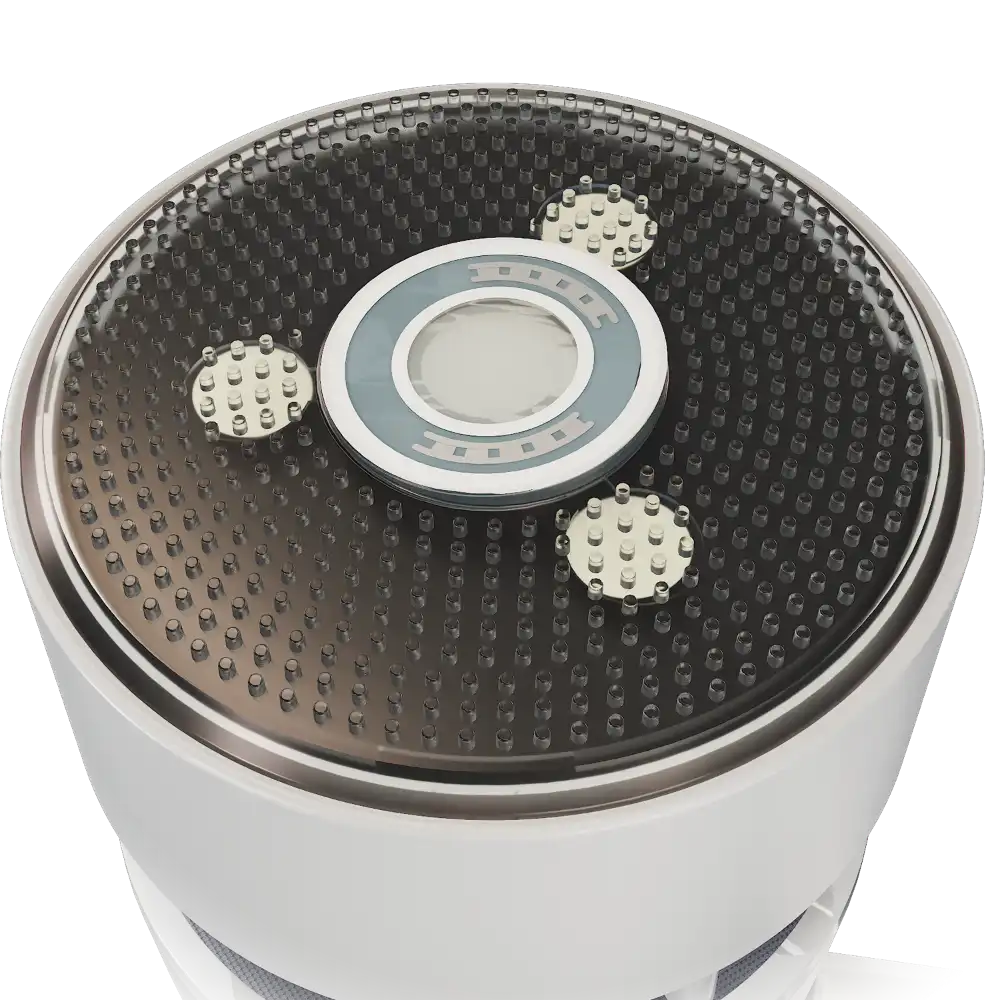

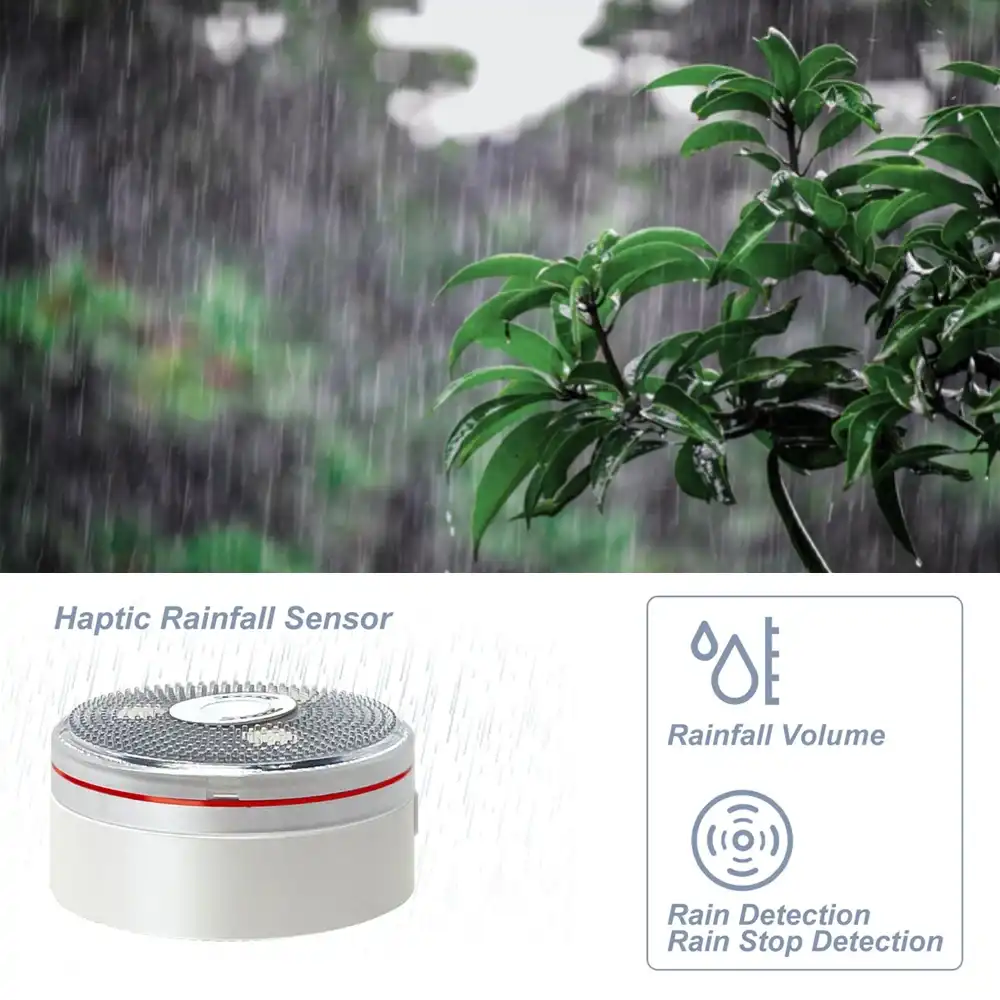

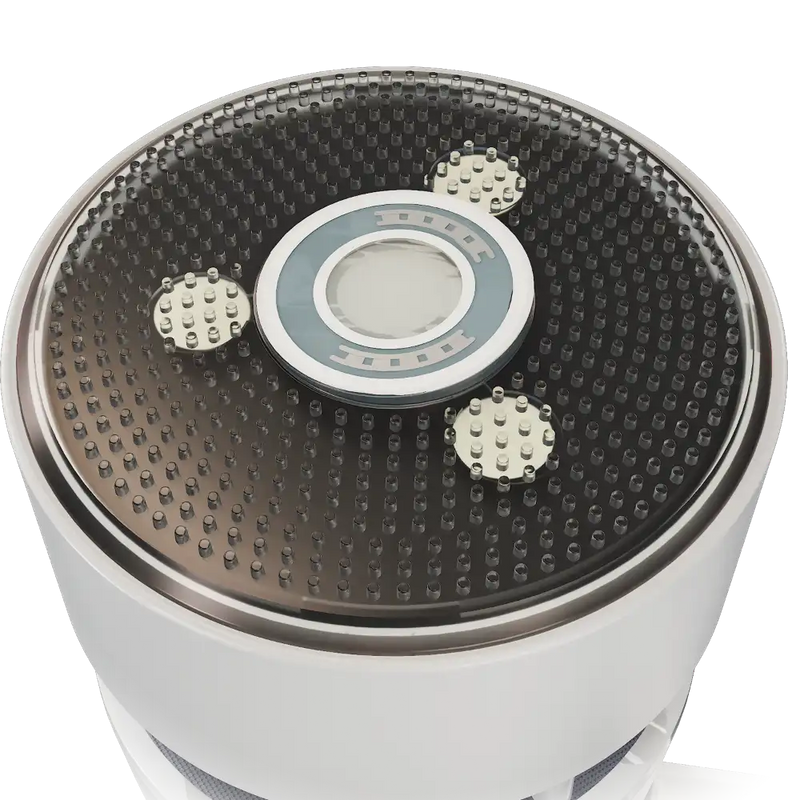

Paired with the 7-in-1 outdoor sensor array (WS90) which no longer uses the traditional tipping bucket rain gauge, but a haptic sensor which measures rainfall. The revised rainfall sensor is slightly sloped to improve accuracy and prevent rain pooling and also includes rain start detection before any measurable rain has fallen.

The outdoor sensor also measures temperature, humidity, wind speed, wind direction, rainfall, UV level and light intensity. It requires mounting on the top of a 1 inch pole to ensure accurate readings.

This indoor data, along with the outdoor sensor data can be uploaded to the FREE Ecowitt service via WiFi and is used to calculate rainfall rate, wind chill, dew point and heat index. All of this can be viewed on an iOS or Android device or in a traditional browser via the Ecowitt weather website.

You are not just limited to weather data on the Ecowitt weather site or App, you can share your data further afield with free access to Weather Underground, WeatherCloud and your own web server.

Unlike some other stations, the Ecowitt WN1981 can be used with a variety of sensors, click here to view the latest Ecowitt sensor matrix.

Not all sensors can be viewed on the console, but all are available to view in the App, or online via Ecowitt.net and in selected 3rd party services that support the sensor type.

Included

The Ecowitt WN1981 includes the following items:

• WN1980-C WiFi colour LCD console with 868MHz sensor reception

• USB power cable & adapter

• WS90 7-in-1 external sensor array 868MHz (UK/EU approved)

• Instruction manual via electronic delivery (QR code)

Technical & Manual

The WN1981 weather station consists of:

WN1980_C LCD Colour Screen

• Built in sensors to display
• Indoor Temperature
• Indoor Humidity
• Atmospheric pressure sensor
• Configure WiFi via App
• Configure additional sensors via App
• Publishes sensor data to Internet based weather services including
• Ecowitt weather server: ecowitt.net.
• WeatherUnderground.com
• WeatherCloud
• Only sensor data supported by each specific service will be uploaded
• View all current sensor and historical records, and graphs on Ecowitt.net server History records can also be exported in Excel format

• Wireless Range from external sensors: 300 feet / 100m (in open areas)
• 868MHz UK and European frequency

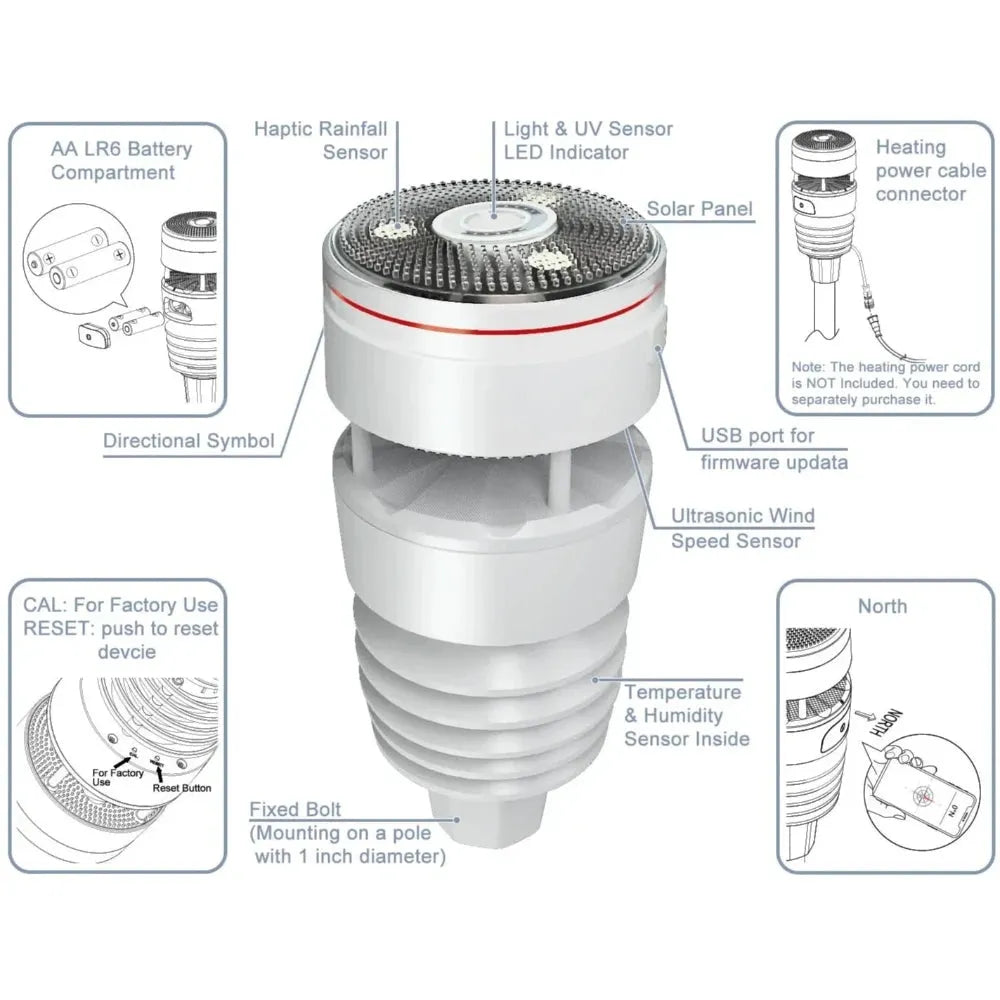

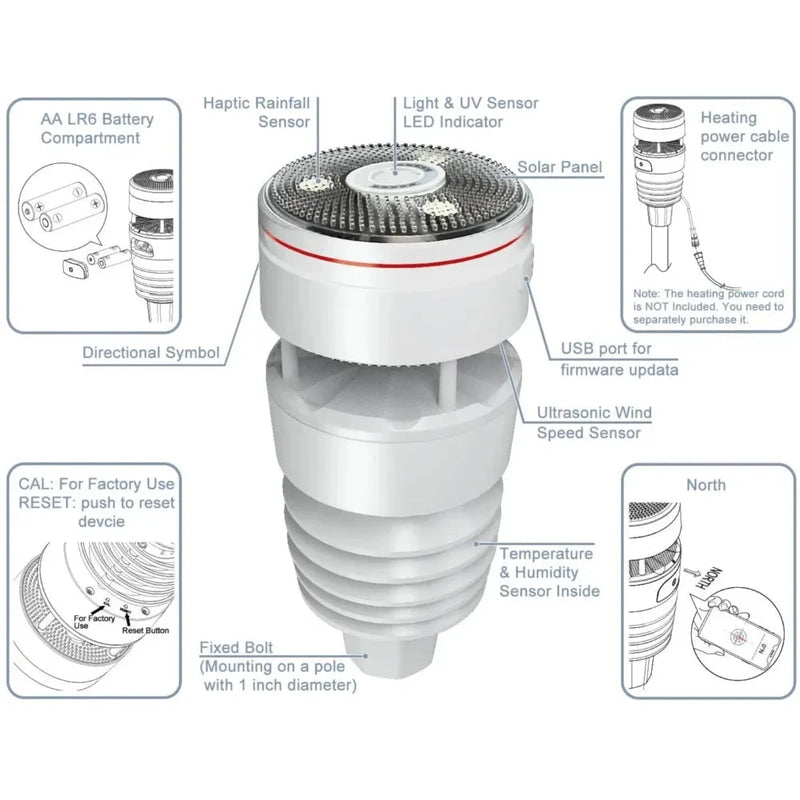

 External 7-in-1 sensor suite (WS90)

• Outdoor temperature and humidity
• Wind speed, gust speed, and wind direction
• Haptic rainfall sensor with rate and totals for day, week, month, and year
• Calculated wind chill, dew point and heat index display on the WS View App
• Solar light intensity
• UV index
• Solar powered with 2 x AA battery backup (batteries required for 24 hour operation)
• 868MHz UK and European frequency
• Requires mounting on top of a 25mm / 1 inch pole (available separately)

A copy of the WN1980 TFT console instructions can be downloaded by clicking here.

A copy of the WS90 7-in-1 haptic array instructions can be downloaded by clicking here.
