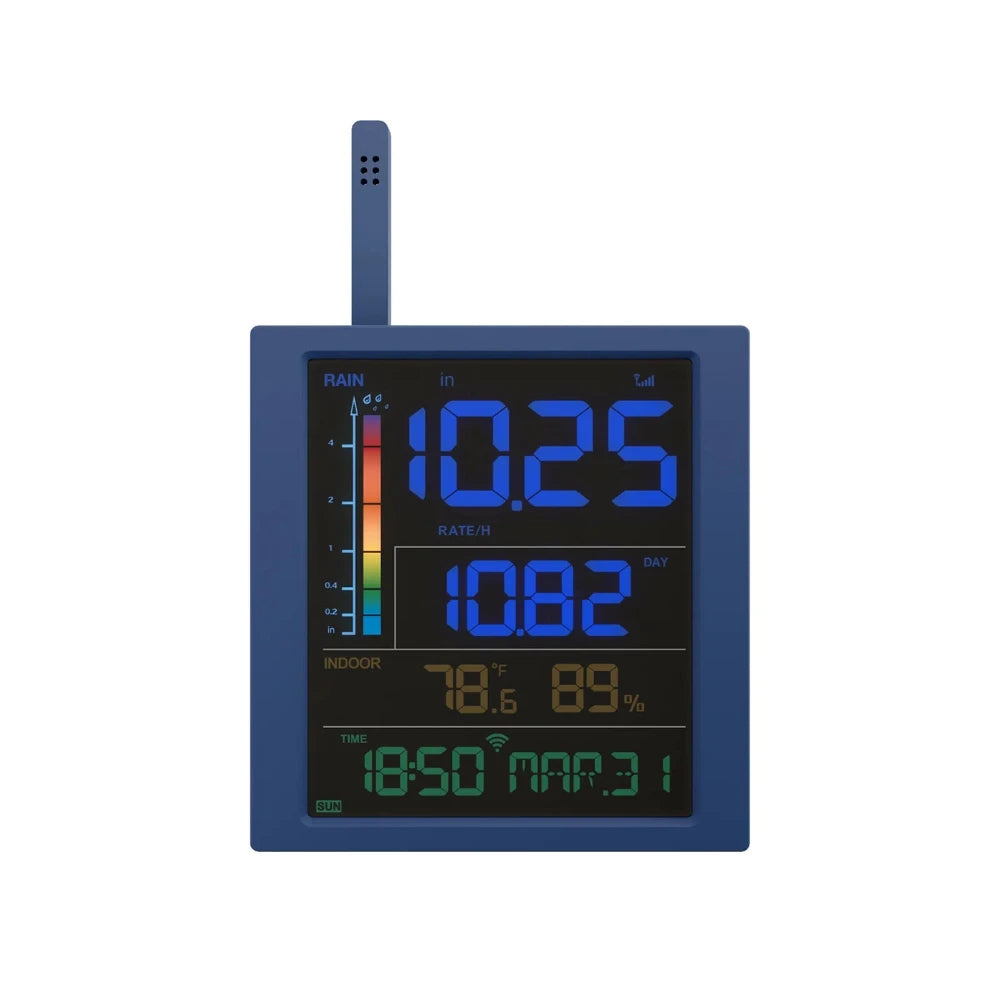

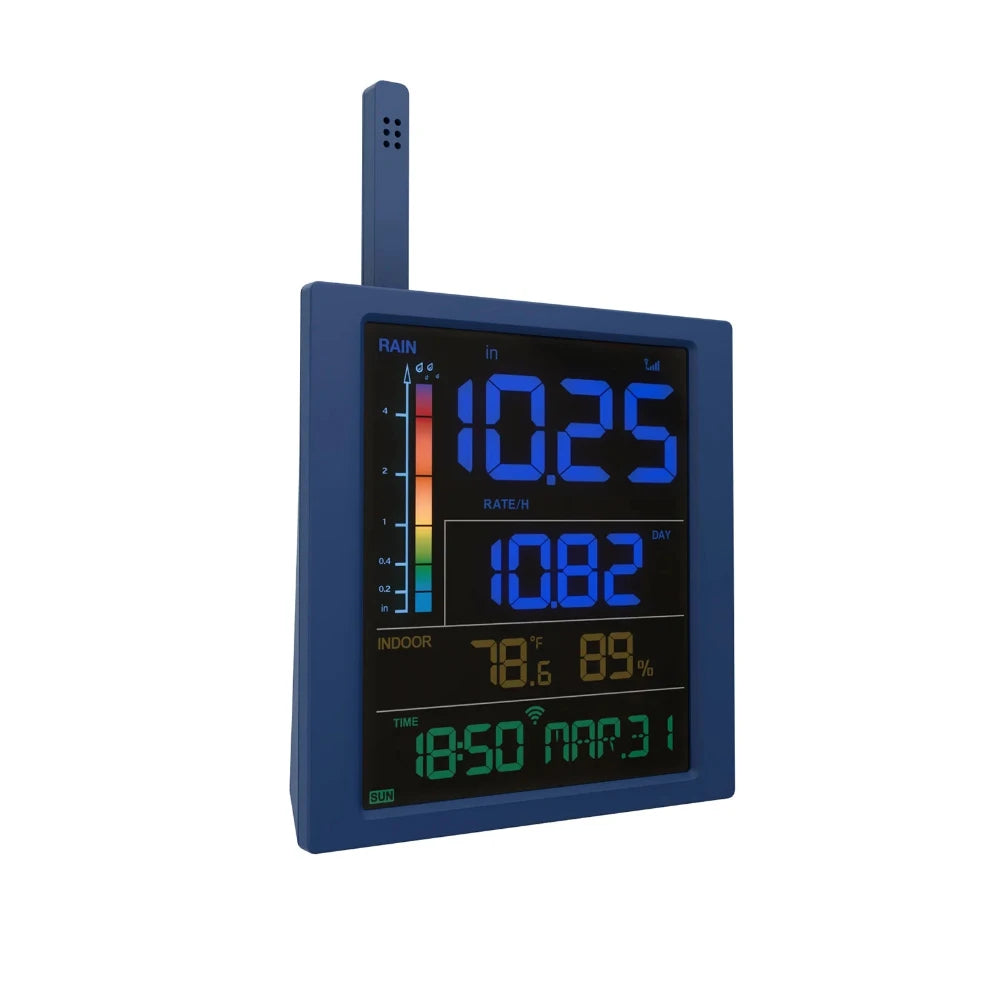

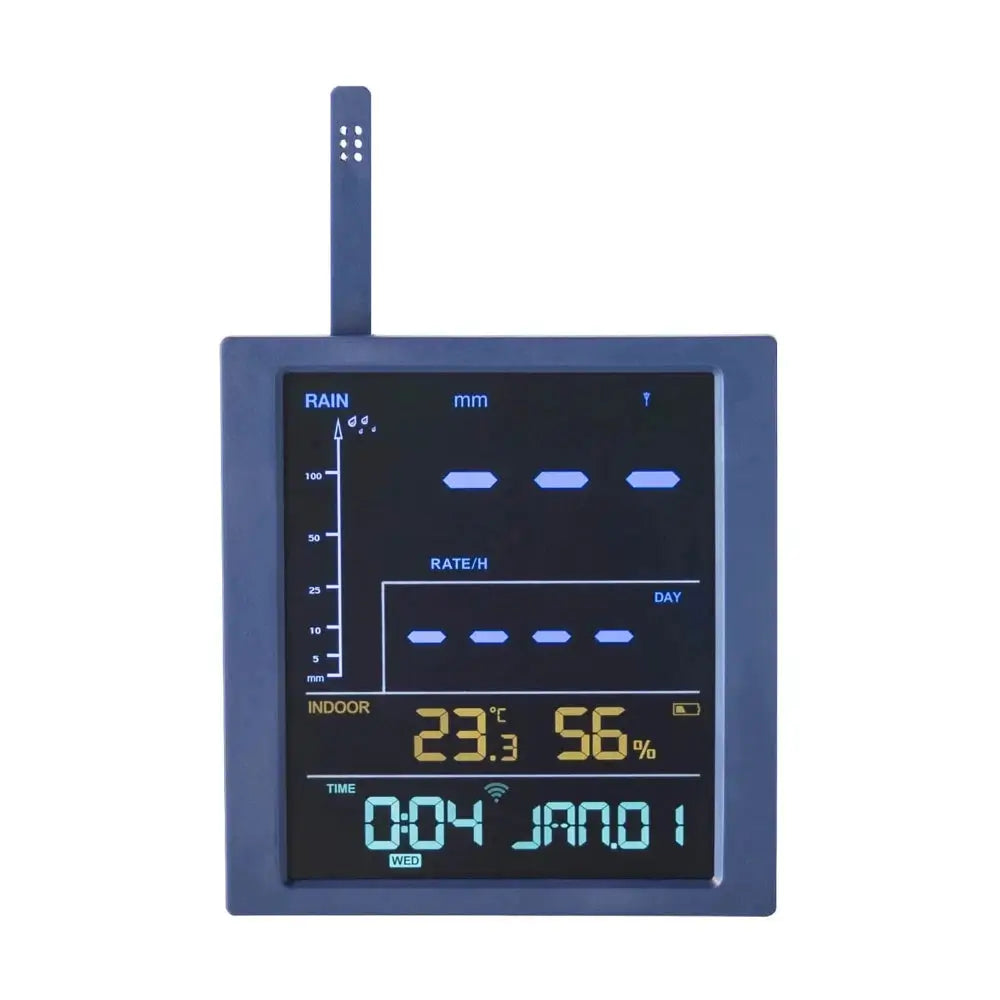

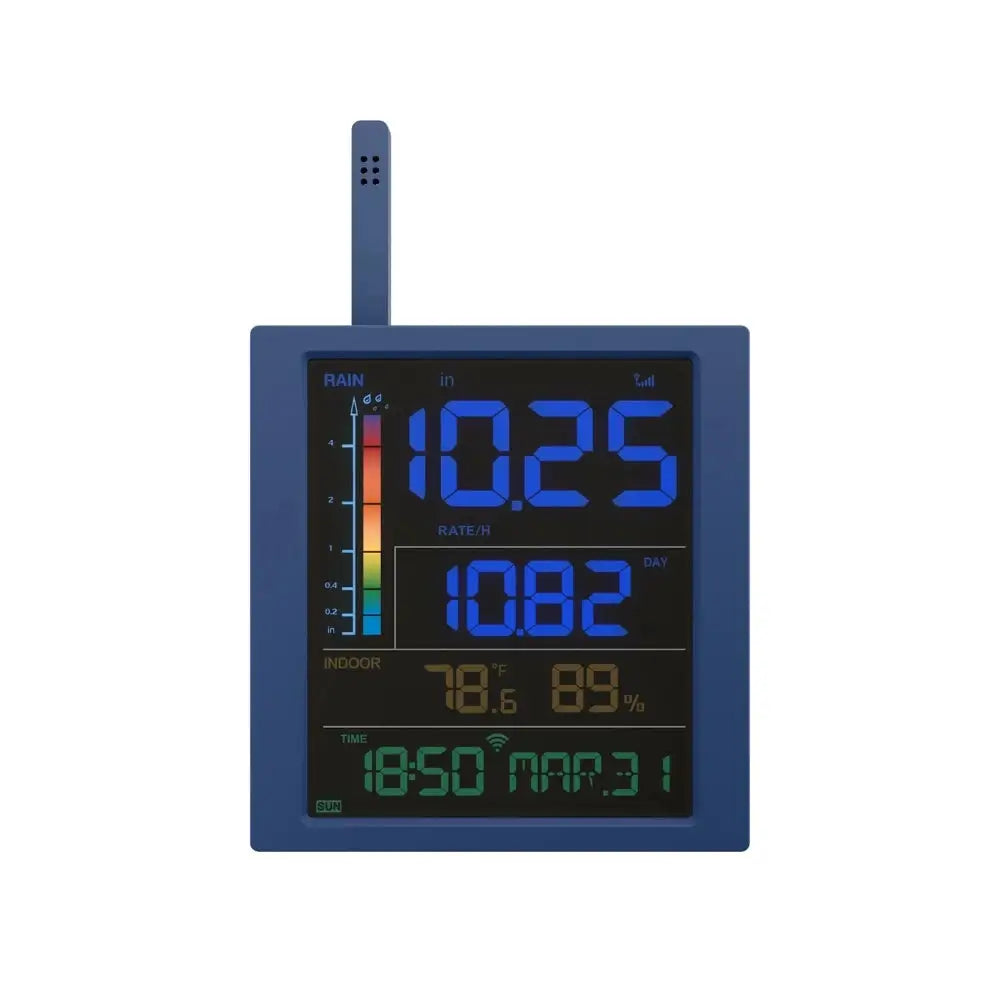

The WN1700_C Wi-Fi Rainfall Display Console has built-in temperature, humidity, and barometric pressure sensors.
The 4.9" colour LCD displays rainfall (rate, event, day, week, month, year and total), indoor/outdoor temperature & humidity and up to 8 multi-channel temp & humidity sensors. The sensors are availalbe seperately.
The console also works as an IoT Wi-Fi gateway for real-time data upload to online weather platforms. Supports web-based configuration, sensor calibration and auto time and date setting when connected to WiFi.
Customisable units and also an adjustable backlight when powered via DC input.
Many can be viewed directly on the console, the remaining in the App, or online via Ecowitt.net and in selected 3rd party services that support this sensor type.
Included
The Ecowitt console includes the following items:
-
WN1700_C WiFi colour LCD console with 868MHz sensor reception
- Fold out stand for desk use or can be wall mounted
- USB power cable for use with your own USB power supply
- Instruction manual via electronic delivery
Technical & Manual
The WN1700 weather station consists of:
- Built in sensors to display
- Indoor Temperature
- Indoor Humidity
- Atmospheric pressure sensor data uploaded online only
- Displays rainfall and temperature/humidity from separately available sensors
- Configuration WiFi via App or built in web page
-
Publishes sensor data to Internet based weather services including
- Ecowitt weather server: ecowitt.net
- WeatherUnderground.com
- WeatherCloud
- WOW-BE (via custom upload)
- Only sensor data supported by each specific service will be uploaded
- View all current sensor and historical records, and graphs on Ecowitt.net server History records can also be exported in Excel format
- Wireless Range from external sensors: 300 feet / 100m (in open areas)
- 868MHz UK and European frequency
- Mains power via USB (adapter required)
- Battery power for maximum 20 days via 2 x AA batteries
A copy of the WN1700_C manual can be viewed by clicking here.
