Ecowitt WittField Plus 4G Mobile Solar Weather Station (3 models)

Regular price: £339.00 GBP
Sale price: £339.00 GBP
Regular price

UK VAT included. Shipping calculated at checkout.

The Ecowitt WittField Combo, Suite and Compact are solar powered 4G weather stations designed to monitor micro-climate change where power is unavailable. This weather station can broadcast weather data to online weather services or user’s own weather server through selected 4G and 2G mobile data networks. Or if near enough to a suitable location WiFi.

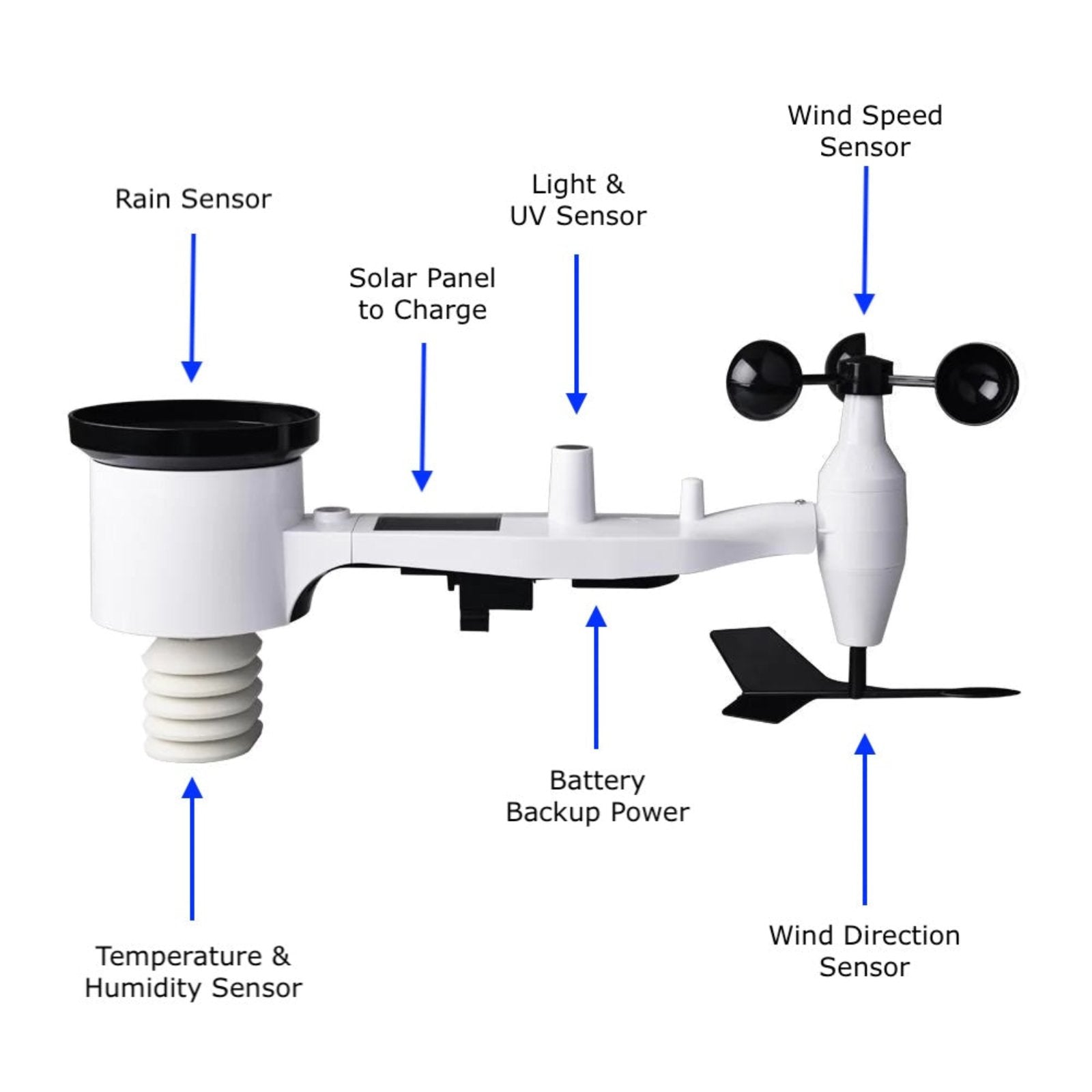

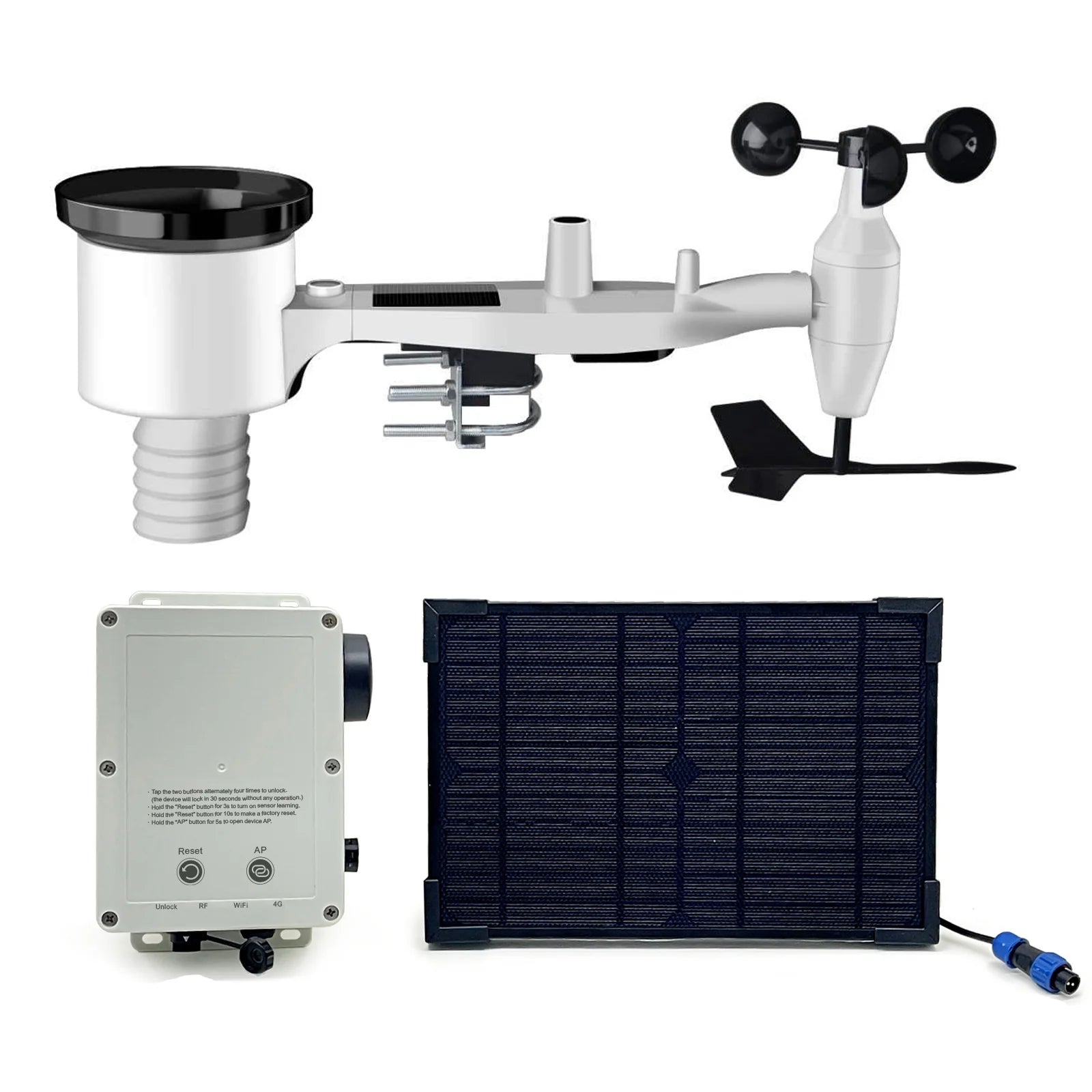

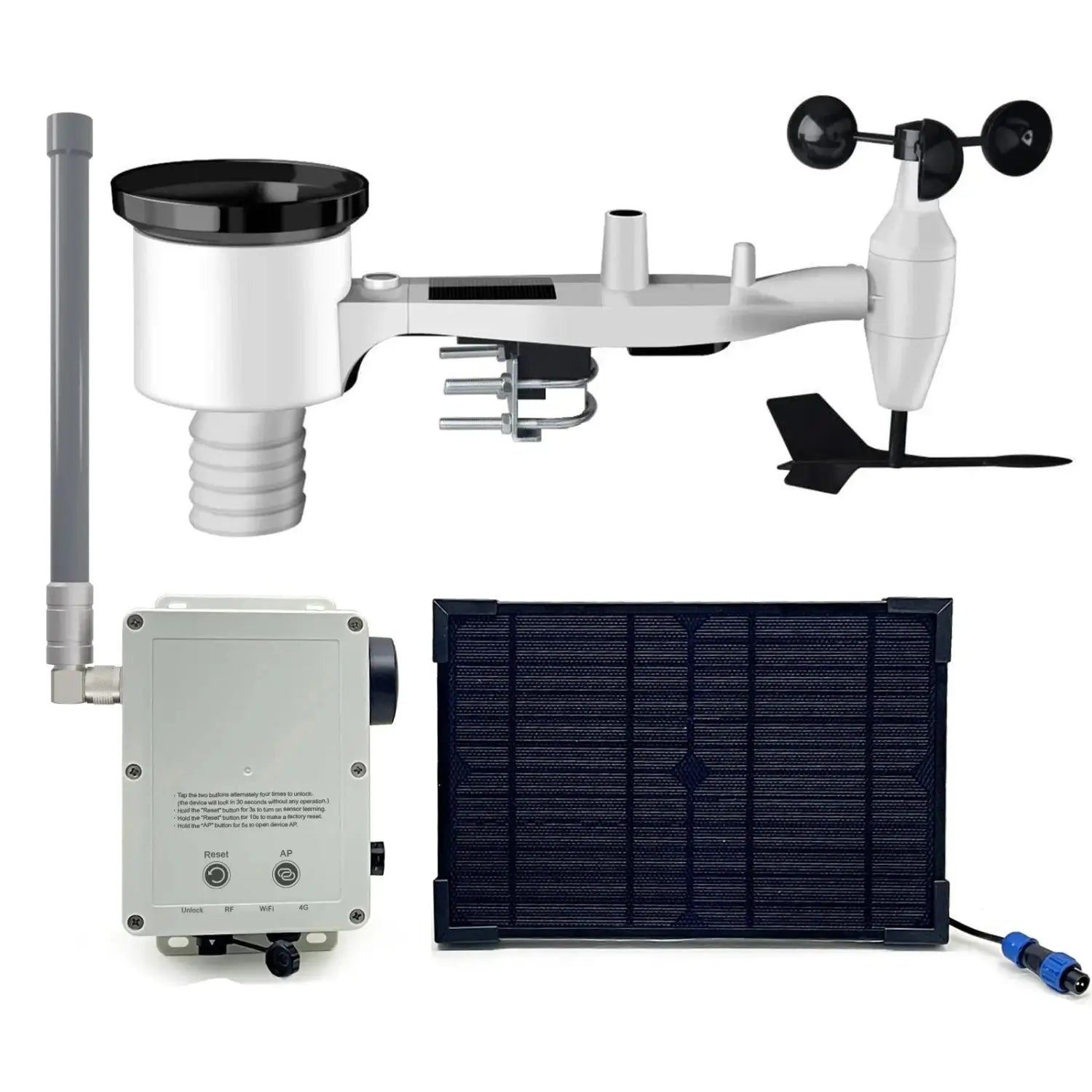

The WittField Combo weather station is supplied with a 7-in-1 sensor array to measure outdoor temperature, humidity, wind speed, wind direction, precipitation, solar and UV level.

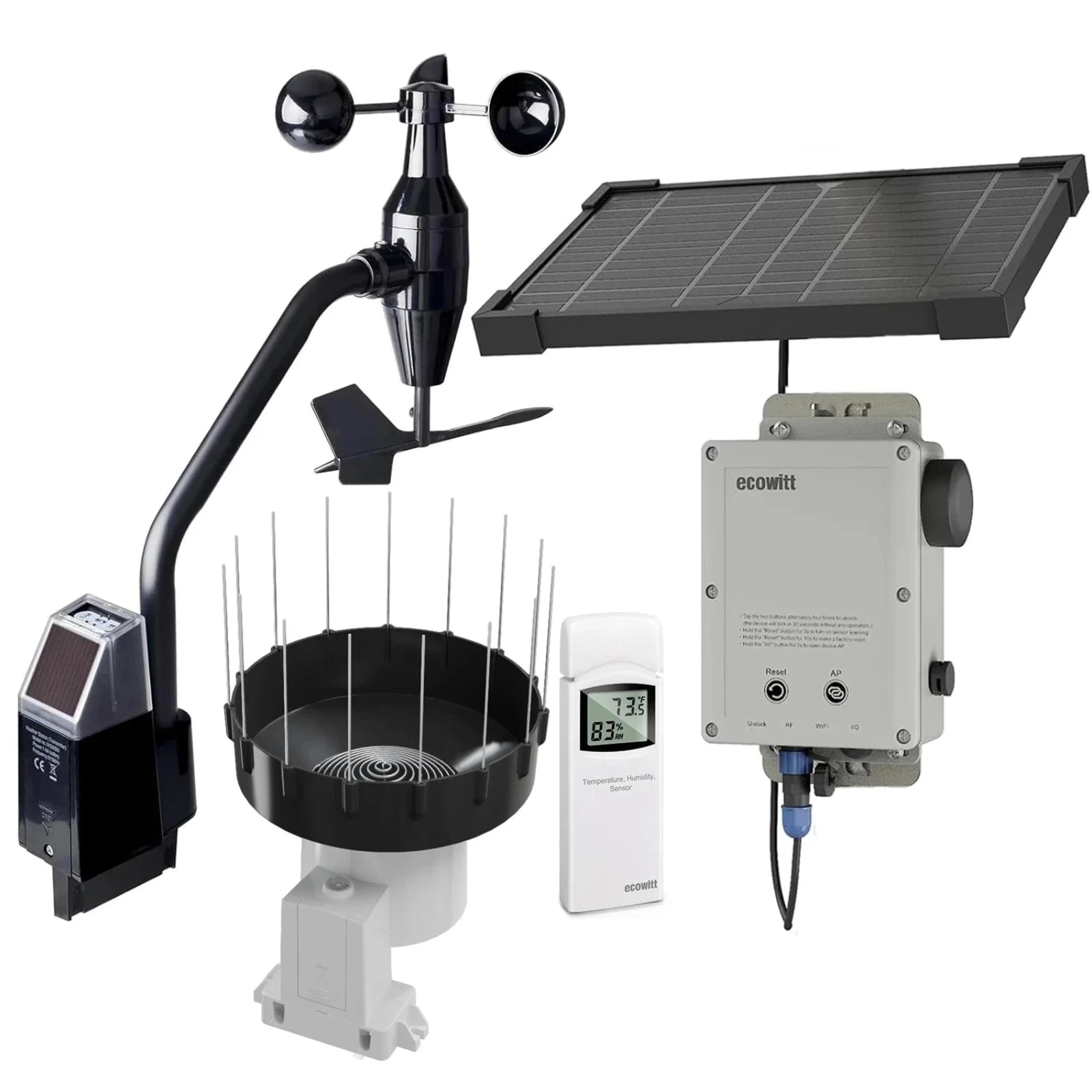

The WittField Suite weather station is supplied with 3 separate sensors to measure outdoor temperature, humidity, wind speed, wind direction, precipitation, solar and UV radiation.

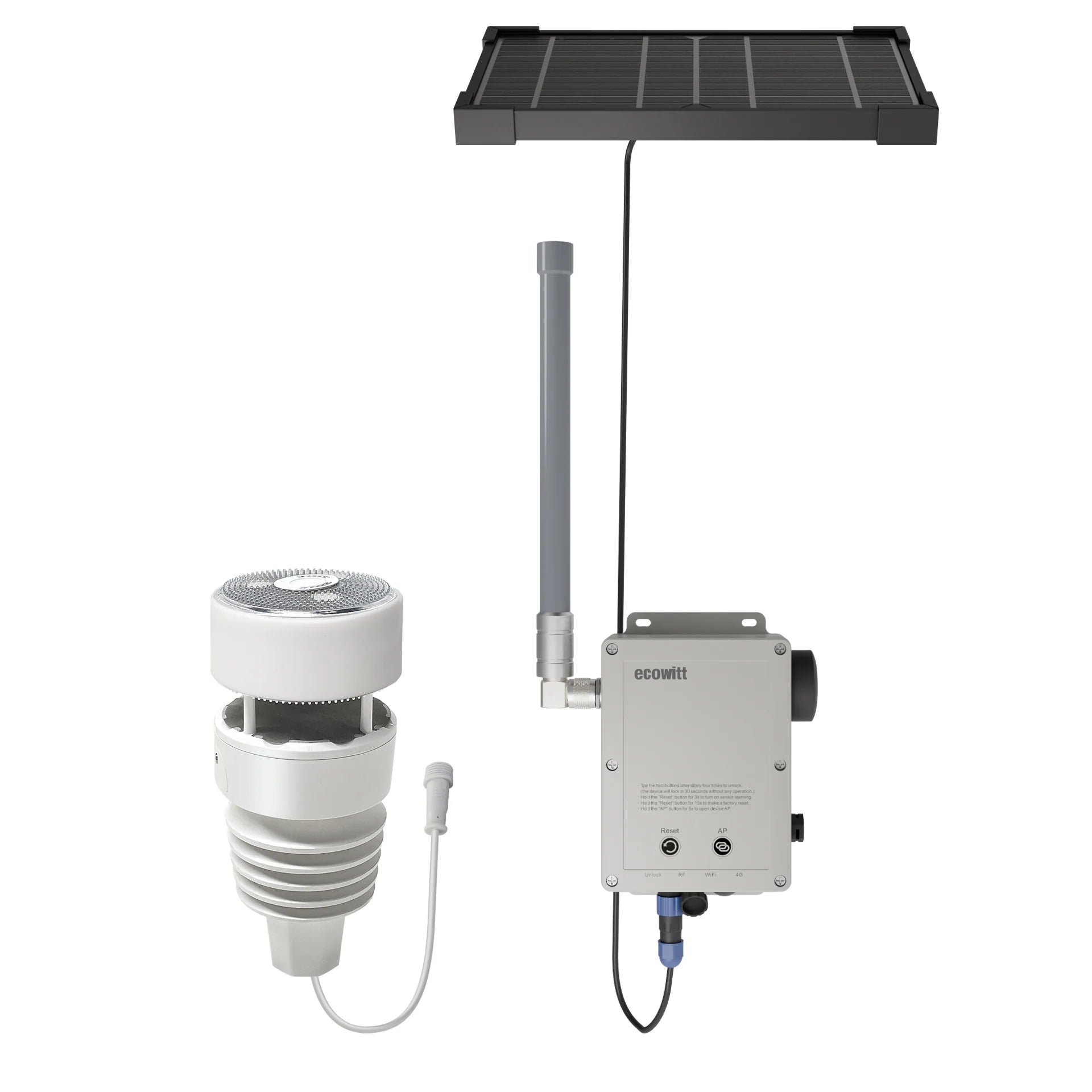

The WittField Compact weather station is supplied with an all in one sensor array which includes the latest sonic anemometer and haptic rain gauge along with temperature, humidity, solar and UV sensors.

The reception distance between the sensors and 4G gateway is extended up to 300 meters with these 'Plus' models which include an external RF antenna.

The product supports both Wi-Fi and 4G connections for receiving and processing data from the included and optional additional sensors. When used is a remote location the product uses 4G for data transmission due to the lack of Wi-Fi coverage. In locations where WiFi is available the WittField prioritises Wi-Fi for data transmission. If WiFi disconnects, it switches to 4G to maintain continuous data flow.

Weather Data can be permanently stored in the included 8GB micro SD card. The system has a low power maintain mode such that user will never experience data loss.

All of these are available to view in the App, or online via Ecowitt.net service.

Requirements for installation:

Mobile signal coverage 4G or 2G (3G is no longer available in some areas)
A compatible 4G network.

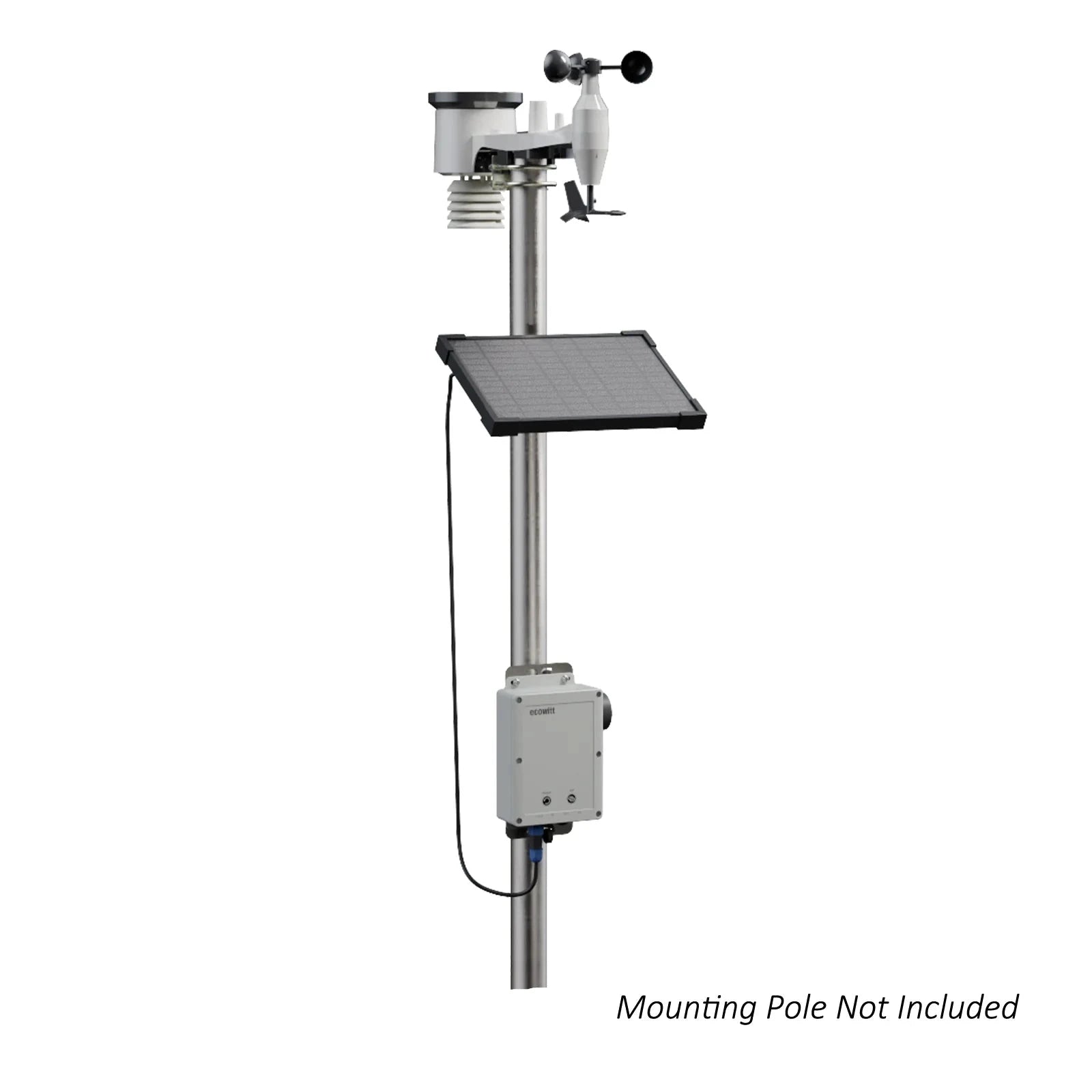

An appropriate pole for the sensor array.
An ongoing 4G data subscription is required after the initial free 90 days included with the SIM.
If you are using the WittField product on WiFi only then no 4G data the subscription is not required which is £20 a year in the UK. The SIM card can be changed for another providers should you wish.

Features

Supports Wi-Fi and 4G, prioritising Wi-Fi for data upload to the weather station server
Sensor Support for almost all Ecowitt sensors, viewable via a web interface and Ecowitt app
Supports web configuration, sensor data viewing, server settings, calibration parameters and Sensor ID settings
Compatible with Ecowitt IoT devices: WFC01 and AC1100
Automatic timezone and network time acquisition, unit settings.
Operates on UK/EU frequency 868MHz
Embedded SD card for web data download
2 year warranty for stations purchased 1st January 2025 onward

Included

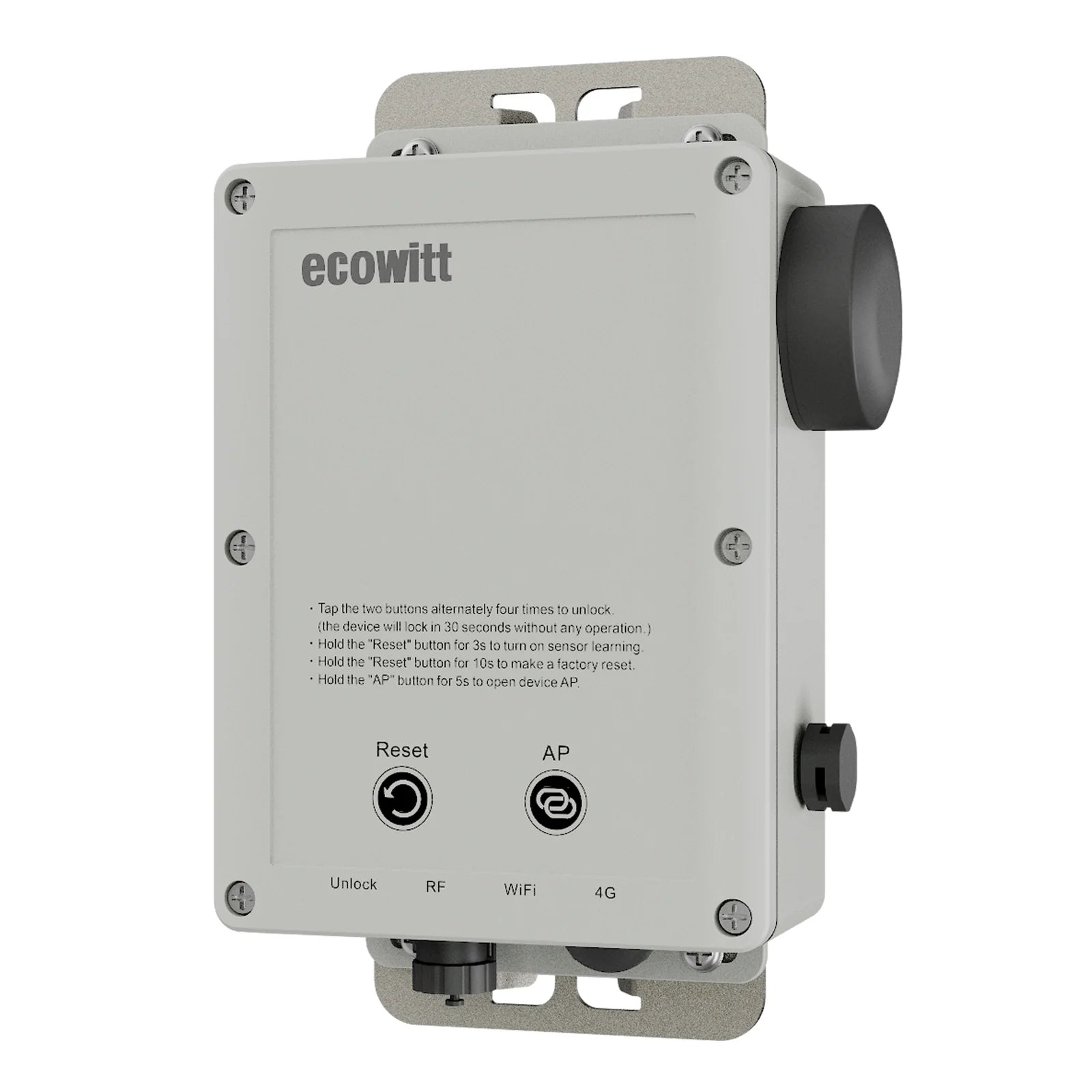

1 x WS6210SAE (4G & Wi-Fi Weather Station Mobile Gateway)
- 6 x Stainless Steel Loops
- 2 x Hose Clamp Brackets
- 4 x M5*8 Screws
- 1 x SD13 to USB Data Cable
- 1 x User Manual
- 1 x Quick Start

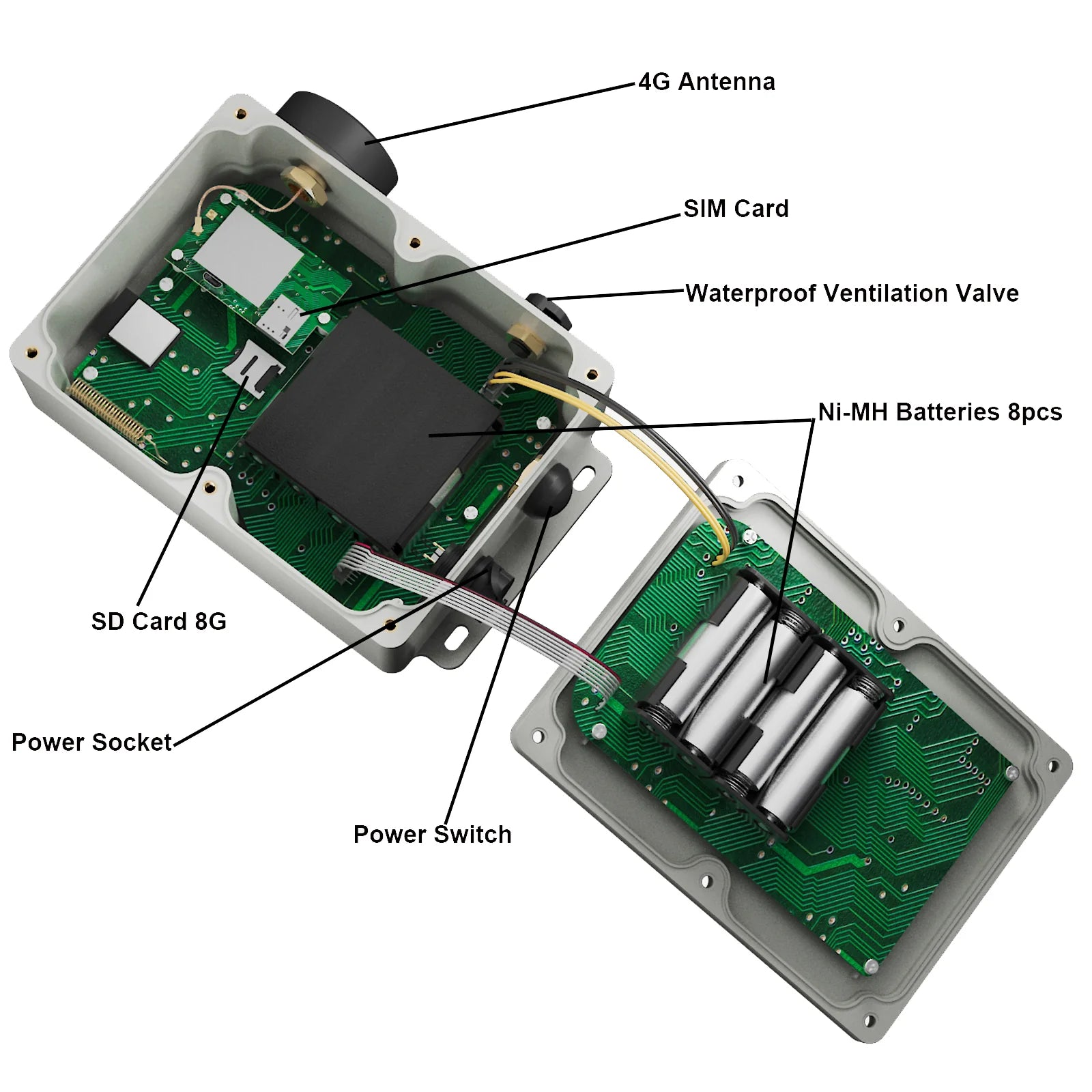

- 8 x AA rechargeable NiMH batteries (pre-installed)
- 1 x Nano-SIM card with 90 day / 300Mb data included (pre-installed)
- 1 x Micro SD card 8G(pre-installed)

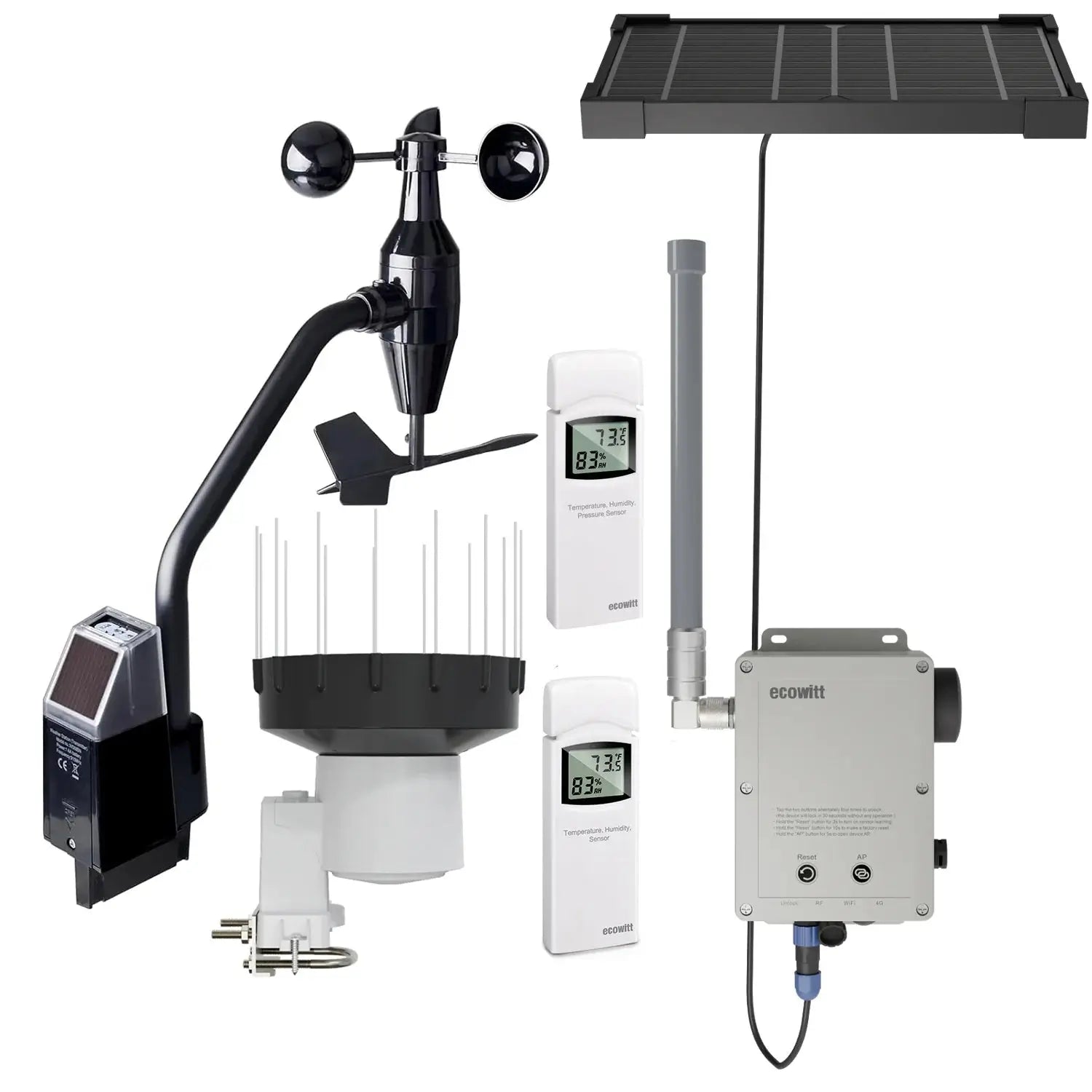

- External RF antenna for extended reception with WS6210S (Plus model)

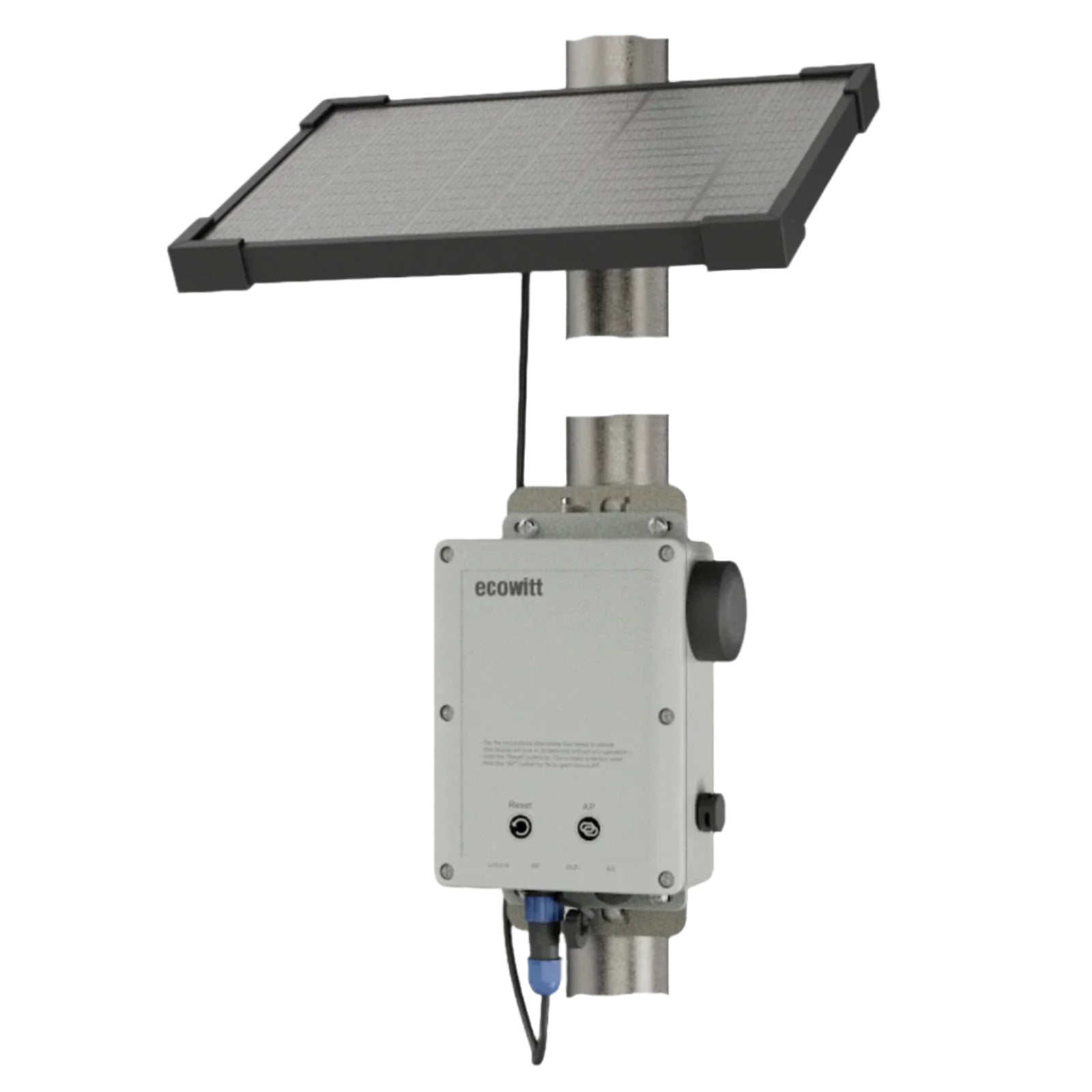

1 x Solar panel
- 1 x Galvanised Bracket for solar panel
- 3 x Screws for solar panel
A choice of models including
- either 1 x WittField Combo, WS69 sensor array
- or 1 x WittField Suite, WS68 sensor array, WH40H rain gauge and WN32 outdoor temperature and humidity sensor
- or 1 x WittField Compact WS90 haptic sensor array

Technical

Model	WS6210SAE 4G Gateway
Name	4G & Wi-Fi Weather Station Mobile Gateway
Dimensions	18713855(mm) LWH
Weight	694.5g (with batteries installed)
Sim card	Nano-SIM
SD card	8G Micro SD
Cellular and Wireless	Support LTE 3GPP Rel.13 technology, support 4G network
Supported Band	4G LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/B66 4G LTE-TDD B34/B38/B39/B40/B41 2G GSM 850/900/1800/1900
RF Radio Frequency	868MHz (UK & Europe, AE suffix)
RF Reception Range	up to 300 meters (in open areas)
WiFi Modes	802.11 b/g/n 2.4GHz (802.11n, Max 150 Mbps)
WiFi Range	Over 30 meters (unobstructed)
Power Options	External solar panel 5 to 12V external DC power supply
Indicator Light	Unlock, RF, WiFi, 4G
Buttons	Touch button: Reset, AP Physical button: Power
Operating Temperature	-20 to 60℃
Port Material	2-core waterproof aviation connector
Battery Capacity	4800 mAh
Battery Life	20 days (5 minute upload, AP off, not connected to IoT Subdevice) 10 days (5 minute upload, AP off, connected to IoT Subdevice)
Power Consumption based on 5 minute upload interval	0.06W (AP off, not connected to IoT) 0.12W (AP off, connected to IoT) 0.9W (AP on, connected to WiFi, not connected to IoT) 0.96W (AP on, connected to WiFi, connected to IoT)
Upload intervals	Default: 5 minutes Setting options include："off, 1, 2, 3, 4, 5, 10 minutes" Shorter upload intervals result in increased power consumption

Model	WittField Combo Plus	WittField Suite Plus	WittField Compact Plus
Product Placement	WS6210S Gateway & WS69 Sensor Array(Pressure version)	WS6210S Gateway & WS68 Array, WH40H, WN32, WN32P Sensors	WS6210S Gateway + WS90 Sensor Array
RF Wireless Range / Frequency	300m / 868MHz (in open areas)	300m / 868MHz (in open areas)	300m / 868MHz (in open areas)
Outdoor Temperature	√	√	√
Outdoor Humidity	√	√	√
Indoor Temperature	No	√	No
Indoor Humidity	No	√	No
Pressure	√	√	No
Rainfall	√	√	√
Wind Speed	√	√	√
Wind Direction	√	√	√
Light	√	√	√
UV	√	√	√
