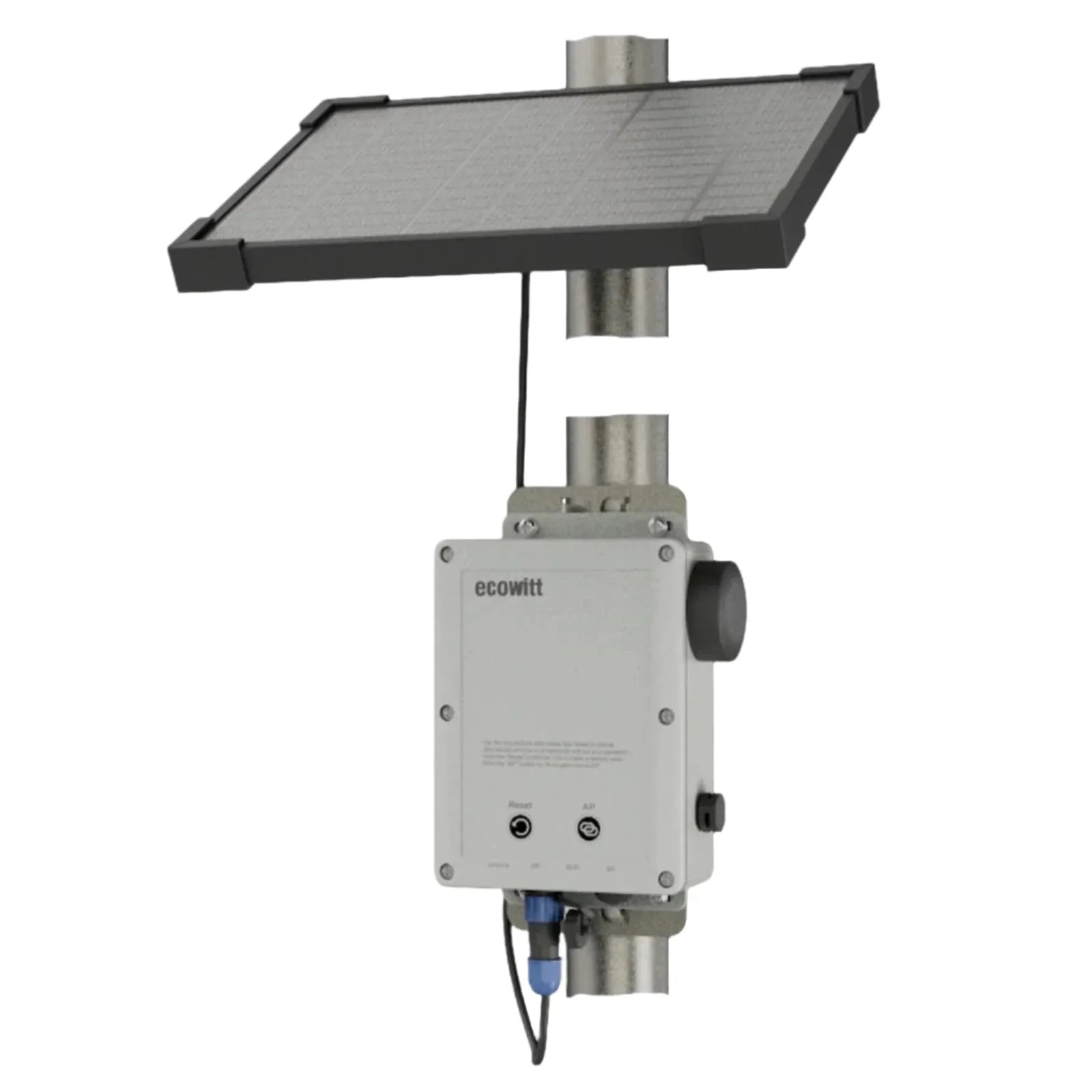

Ecowitt WS6210 4G Mobile Gateway

Coming Soon
£249.00
£249.00
UK VAT included. Shipping calculated at checkout.
Radio Frequency:

The Ecowitt WS6210 solar powered gateway is designed to monitor micro-climate change where power is unavailable. With suitable sensors added, the gateway can broadcast weather data to online weather services or user’s own weather server through selected 4G and 2G mobile data networks. Or if near enough to a suitable location WiFi.

The WS6210 supports both Wi-Fi and 4G connections for receiving and processing data from the sensors you add. When used is a remote location the WS6210 uses 4G for data transmission due to the lack of Wi-Fi coverage. In locations where WiFi is available the WS6210 prioritises Wi-Fi for data transmission. If WiFi disconnects, it switches to 4G to maintain continuous data flow.

Weather Data can be permanently stored in the included 8GB micro SD card. The system has a low power maintain mode such that user will never experience data loss.

Unlike some other stations, the latest version of the Ecowitt WS6210 can be paired with a number of sensors, click here to view the latest Ecowitt sensor matrix.

All of these are available to view in the App, or online via Ecowitt.net service.

Please ensure that the sensors added are 868MHz frequency.

Requirements for installation:

  • Mobile signal coverage 4G or 2G (3G is no longer available in some areas)
  • A compatible 4G network.
  • An appropriate pole for the sensor array
  • Supports Wi-Fi and 4G, prioritising Wi-Fi for data upload to the weather station server
  • Sensor Support for almost all Ecowitt 868MHz sensors, viewable via a web interface and Ecowitt app
  • Supports web configuration, sensor data viewing, server settings, calibration parameters and Sensor ID settings
  • Compatible with Ecowitt IoT devices: WFC01 and AC1100
  • Automatic timezone and network time acquisition, unit settings.
  • Operates on UK/EU frequency 868MHz
  • Embedded SD card for web data download



  • 1 x WS6210 (4G & Wi-Fi Weather Station Mobile Gateway)
    • 6 x Stainless Steel Loops
    • 2 x Hose Clamp Brackets
    • 4 x M5*8 Screws
    • 1 x SD13 to USB Data Cable
    • 1 x User Manual
    • 1 x Quick Start
    • 8 x AA rechargeable NiMH batteries
    • 1 x Nano-SIM card
    • 1 x Micro SD card 8G
  • 1 x Solar panel
    • 1 x Galvanised Bracket for solar panel
    • 3 x Screws for solar panel





Model

WS6210

Name

4G & Wi-Fi Weather Station Mobile Gateway

Dimensions

187*138*55(mm) L*W*H

Weight

694.5g (with batteries installed)

457g (WS6210 only)

Sim card

Nano-SIM

SD card

8G Micro SD

Cellular and Wireless

Support LTE 3GPP Rel.13 technology, support 4G network

Supported Band

4G LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/B66

4G LTE-TDD B34/B38/B39/B40/B41

2G GSM 850/900/1800/1900

RF Radio Frequency

868MHz (UK & Europe)

RF Radio Range

Over 100 meters (in open areas)

Wireless Modes

802.11 b/g/n 2.4GHz (802.11n, Max 150 Mbps)

Wireless Range

Over 30 meters (unobstructed)

Power Options

External solar panel

5 to 12V external DC power supply

Indicator Light

Unlock, RF, WiFi, 4G

Buttons

Touch button: Reset, AP

Physical button: Power

Operating Temperature

-20 to 60℃

Port Material

2-core waterproof aviation connector

Battery Capacity

4800 mAh

Battery Life

20 days (5 minute upload, AP off, not connected to IoT Subdevice)

10 days (5 minute upload, AP off, connected to IoT Subdevice)

Power Consumption based on 5 minute upload interval

0.06W (AP off, not connected to IoT)

0.12W (AP off, connected to IoT)

0.9W (AP on, connected to WiFi, not connected to IoT)

0.96W (AP on, connected to WiFi, connected to IoT)

Upload intervals

Default: 5 minutes

Setting options include："off, 1, 2, 3, 4, 5, 10 minutes"

Shorter posting intervals will result in increased power consumption.
