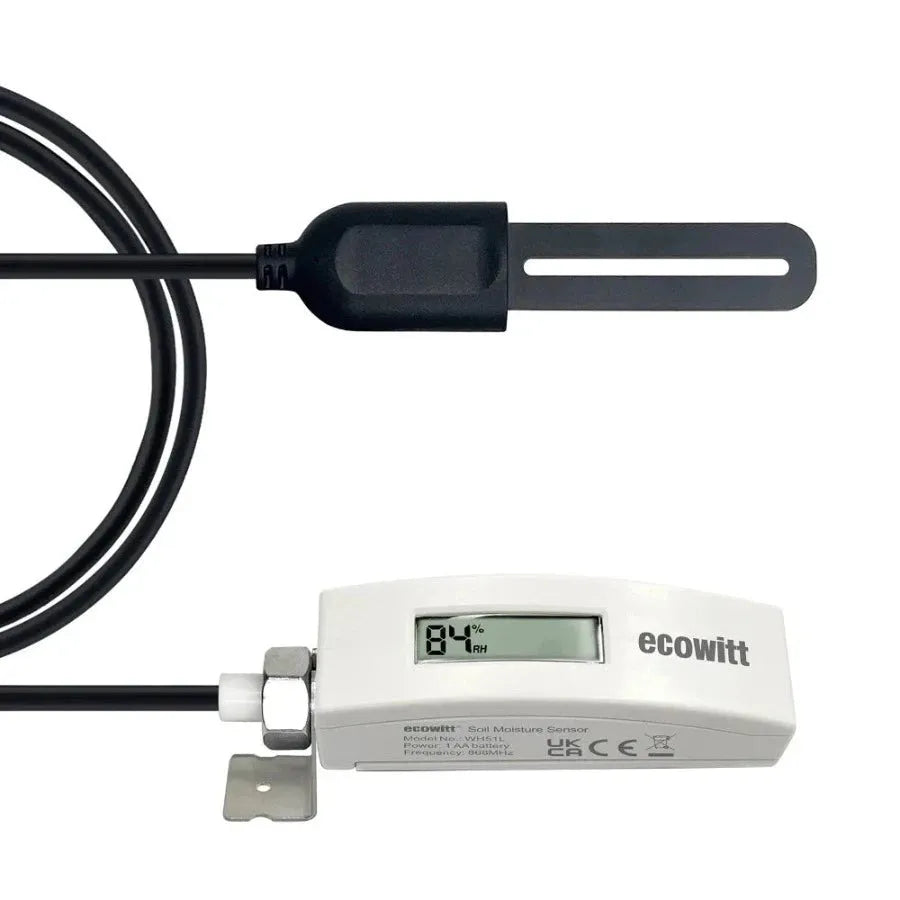

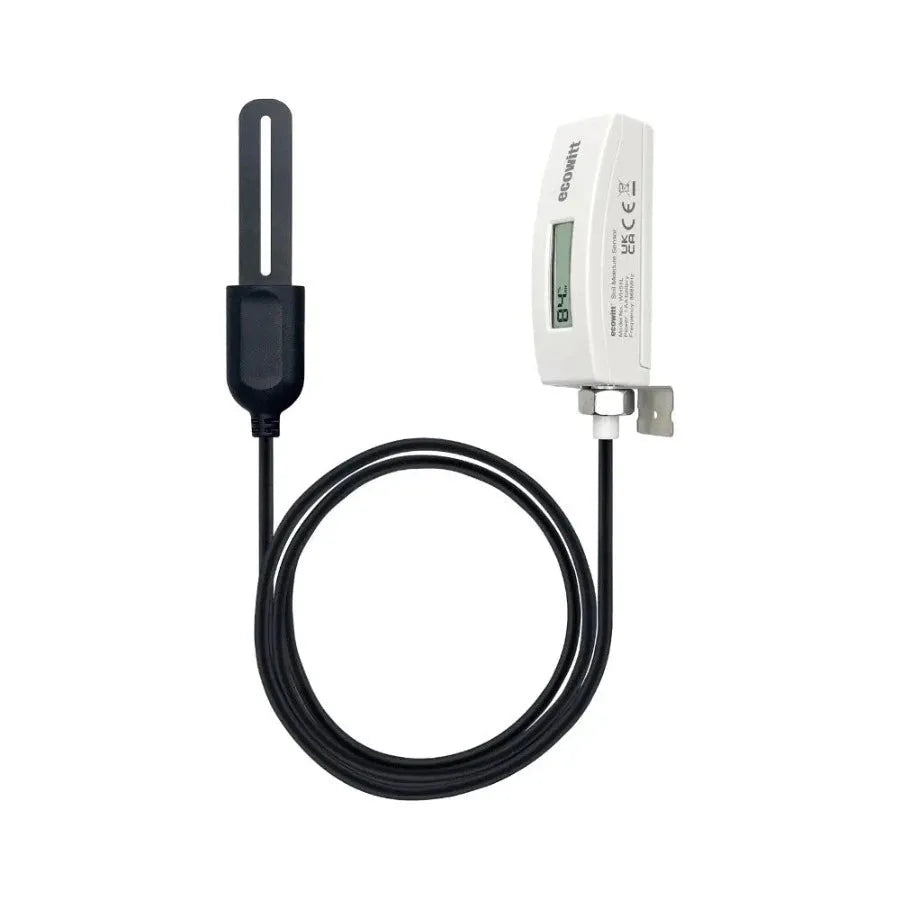

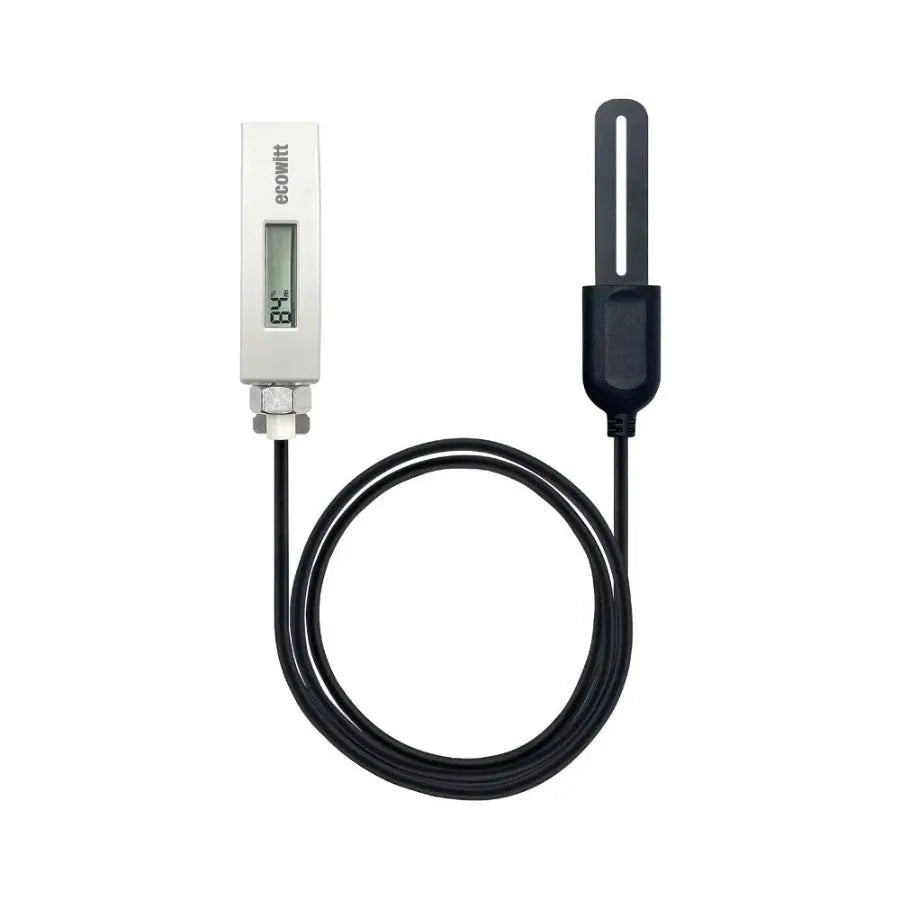

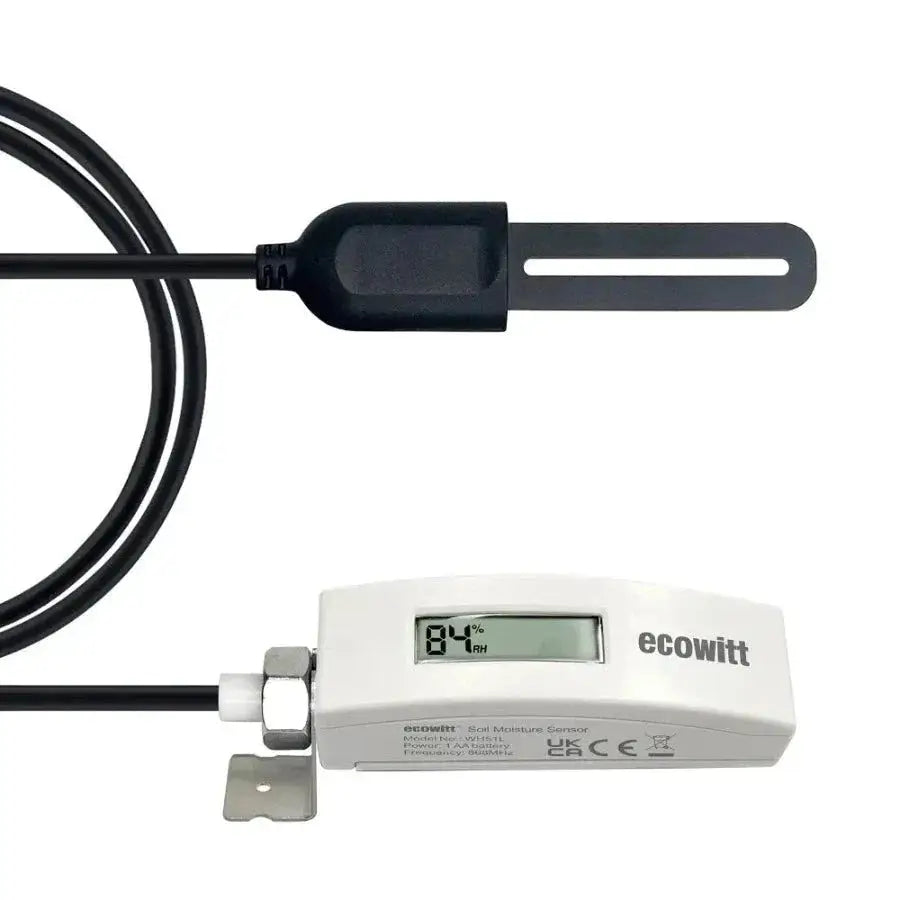

Ecowitt WH51L Wireless Soil Moisture Sensor with Extended Cable

£49.00
£49.00
UK VAT included. Shipping calculated at checkout.
Radio Frequency:
sensor-mounting-pole-and-fixings-for-various-outdoor-sensors
{"id":7720065761496,"title":"Mounting Pole for Various Outdoor Sensors","handle":"sensor-mounting-pole-and-fixings-for-various-outdoor-sensors","description":"\u003cp\u003eSensor mounting hardware suitable for a number of external sensor packs. Flexible mounting options for installation on a flat surface or post. Light weight but sturdy design with 16swg aluminium pole and  galvanised 2mm steel mounting base all manufactured in the UK.\u003c\/p\u003e\n\u003cp\u003eKnown to work with:\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eEcowitt\u003c\/li\u003e\n\u003cul\u003e\n\u003cli\u003eGW1201 \/ GW1101 \/ GW1001 sensor array\u003c\/li\u003e\n\u003cli\u003eHP2551 \/ HP2561 sensor array\u003c\/li\u003e\n\u003cli\u003eRS0001 sensor shelter\u003c\/li\u003e\n\u003cli\u003eWN1900 \/ WN1920 sensor array\u003c\/li\u003e\n\u003cli\u003eWS2910 sensor array\u003c\/li\u003e\n\u003cli\u003eWH40 rain gauge\u003c\/li\u003e\n\u003cli\u003eWN67 5-in-1sensor array\u003c\/li\u003e\n\u003cli\u003eWS68 standard anemometer\u003c\/li\u003e\n\u003cli\u003eWS69 7-in-1 sensor array\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003eWS85 sonic 3-in-1 sensor pack with haptic rain\u003c\/li\u003e\n\u003cli\u003eWS90 sonic 7-in-1 sensor pack with haptic rain\u003cbr\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cli\u003eGARNI 940 sensor array\u003c\/li\u003e\n\u003cli\u003eTFA sensor shelter\u003c\/li\u003e\n\u003cli\u003eVentus W830 sensor array\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003eThank you to Highlands \u0026amp; Islands Weather for their image of the installed Ecowitt sensor array showing the pole and mounting on a wooden fence post.\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch5\u003eIncluded\u003c\/h5\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cdiv\u003e1 x 25mm (1\") diameter pole, approx 48cm long with end cap \/ bung\u003c\/div\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cdiv\u003e1 x U Bolt \u0026amp; nuts to clamp pole to mounting bracket\u003c\/div\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cdiv\u003e1 x metal mounting bracket offering vertical or surface mounting with 4 fixing points, fixings required for mounting on your chosen surface\u003c\/div\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e","published_at":"2022-06-16T16:46:02+01:00","created_at":"2022-06-16T16:18:59+01:00","vendor":"Ecowitt","type":"Accessories","tags":[],"price":1400,"price_min":1400,"price_max":1400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42971366654168,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"GENFIXPOLE","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mounting Pole for Various Outdoor Sensors","public_title":null,"options":["Default Title"],"price":1400,"weight":450,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/weatherspares.co.uk\/cdn\/shop\/files\/Screenshot_2024-11-05_at_12.46.21.png?v=1730811068","\/\/weatherspares.co.uk\/cdn\/shop\/files\/Screenshot_2024-11-05_at_12.48.07.png?v=1730811141","\/\/weatherspares.co.uk\/cdn\/shop\/files\/20220607_193412.jpg?v=1730809447"],"featured_image":"\/\/weatherspares.co.uk\/cdn\/shop\/files\/Screenshot_2024-11-05_at_12.46.21.png?v=1730811068","options":["Title"],"media":[{"alt":null,"id":63052915966330,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/weatherspares.co.uk\/cdn\/shop\/files\/Screenshot_2024-11-05_at_12.46.21.png?v=1730811068"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/weatherspares.co.uk\/cdn\/shop\/files\/Screenshot_2024-11-05_at_12.46.21.png?v=1730811068","width":800},{"alt":null,"id":63052915933562,"position":2,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/weatherspares.co.uk\/cdn\/shop\/files\/Screenshot_2024-11-05_at_12.48.07.png?v=1730811141"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/weatherspares.co.uk\/cdn\/shop\/files\/Screenshot_2024-11-05_at_12.48.07.png?v=1730811141","width":800},{"alt":null,"id":63052810223994,"position":3,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/weatherspares.co.uk\/cdn\/shop\/files\/20220607_193412.jpg?v=1730809447"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/weatherspares.co.uk\/cdn\/shop\/files\/20220607_193412.jpg?v=1730809447","width":800}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eSensor mounting hardware suitable for a number of external sensor packs. Flexible mounting options for installation on a flat surface or post. Light weight but sturdy design with 16swg aluminium pole and  galvanised 2mm steel mounting base all manufactured in the UK.\u003c\/p\u003e\n\u003cp\u003eKnown to work with:\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eEcowitt\u003c\/li\u003e\n\u003cul\u003e\n\u003cli\u003eGW1201 \/ GW1101 \/ GW1001 sensor array\u003c\/li\u003e\n\u003cli\u003eHP2551 \/ HP2561 sensor array\u003c\/li\u003e\n\u003cli\u003eRS0001 sensor shelter\u003c\/li\u003e\n\u003cli\u003eWN1900 \/ WN1920 sensor array\u003c\/li\u003e\n\u003cli\u003eWS2910 sensor array\u003c\/li\u003e\n\u003cli\u003eWH40 rain gauge\u003c\/li\u003e\n\u003cli\u003eWN67 5-in-1sensor array\u003c\/li\u003e\n\u003cli\u003eWS68 standard anemometer\u003c\/li\u003e\n\u003cli\u003eWS69 7-in-1 sensor array\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003eWS85 sonic 3-in-1 sensor pack with haptic rain\u003c\/li\u003e\n\u003cli\u003eWS90 sonic 7-in-1 sensor pack with haptic rain\u003cbr\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cli\u003eGARNI 940 sensor array\u003c\/li\u003e\n\u003cli\u003eTFA sensor shelter\u003c\/li\u003e\n\u003cli\u003eVentus W830 sensor array\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003eThank you to Highlands \u0026amp; Islands Weather for their image of the installed Ecowitt sensor array showing the pole and mounting on a wooden fence post.\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch5\u003eIncluded\u003c\/h5\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cdiv\u003e1 x 25mm (1\") diameter pole, approx 48cm long with end cap \/ bung\u003c\/div\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cdiv\u003e1 x U Bolt \u0026amp; nuts to clamp pole to mounting bracket\u003c\/div\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cdiv\u003e1 x metal mounting bracket offering vertical or surface mounting with 4 fixing points, fixings required for mounting on your chosen surface\u003c\/div\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e"}

Add the WH51L sensor to the Ecowitt WiFi gateway or weather station to include soil moisture readings in you weather data. Upload data to the Ecowitt network to view a history of soil data or view live on the sensors LCD screen.

Transmits readings every 70 seconds, unless a rapid change in moisture is detected (such as irrigation) then this increases to every 10 seconds.

For details on which weather products support the WH51L soil moisture sensor, click here to view the latest Ecowitt sensor matrix.

Up to 8 soil sensor readings are available to view in the App, or online via Ecowitt.net and in the 3rd party websites that support this sensor types. The MetOffice WoW service now supports the first sensor of this type (channel 1).

Features

  • Measures soil moisture

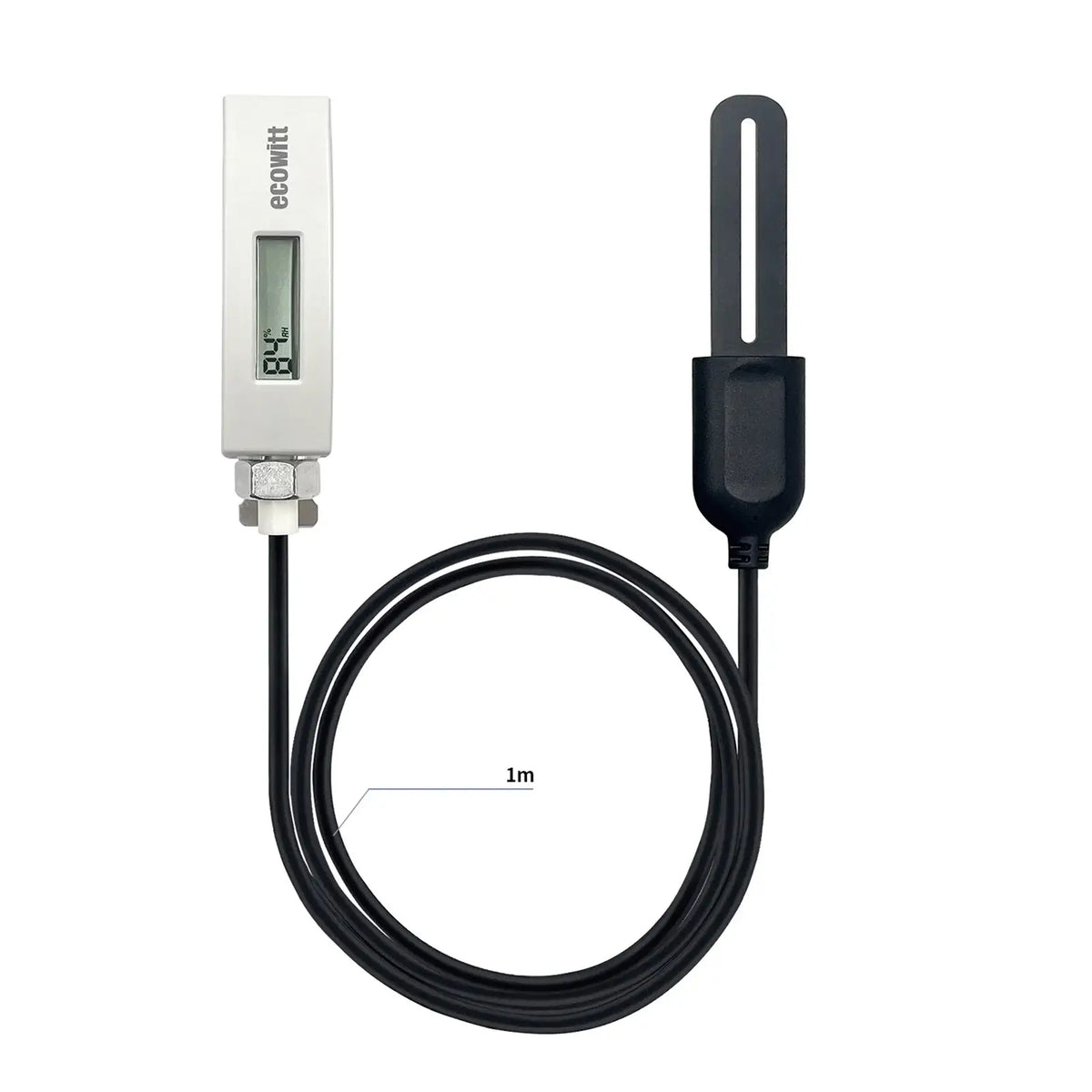

  • 1 meter lead from transmitter head to sensor

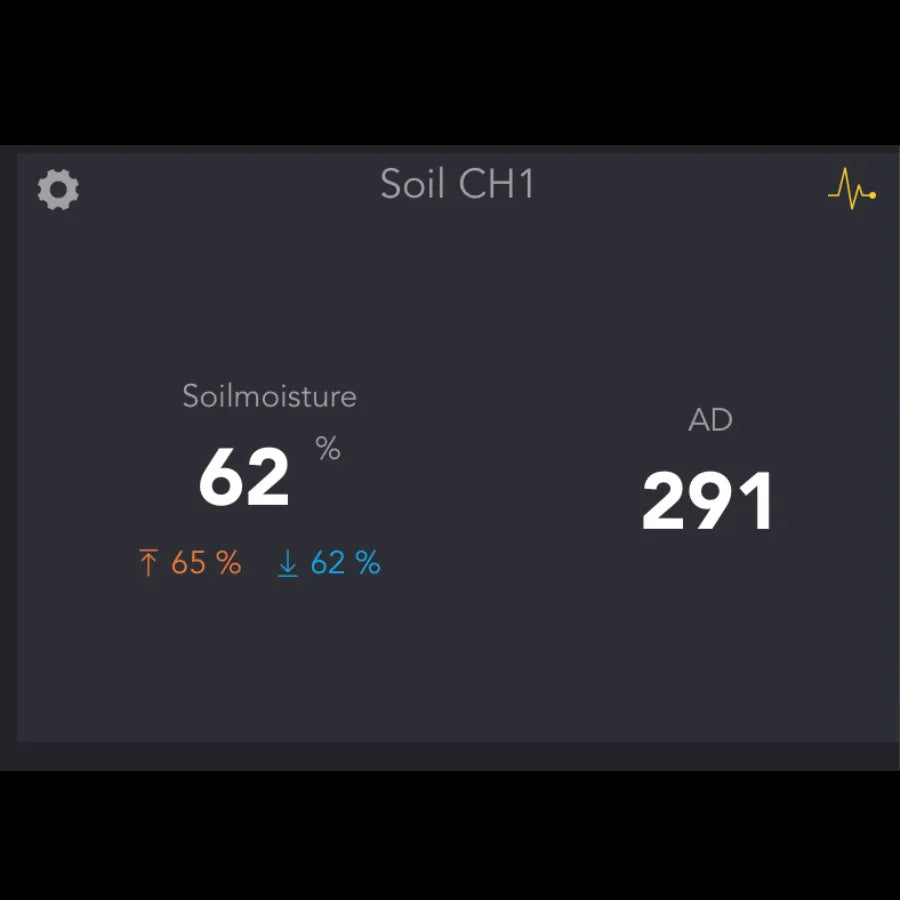

  • LCD screen for direct readings or via Ecowitt App
  • Configure for use with the GW1100 or GW1200 WIFI gateway or range of LCD & TFT screen weather stations
  • 868MHz UK / European frequency
  • Use up to 8 soil sensors
  • Upload data to the Ecowitt weather server to view history graphs and download the data from the website in Excel

Important Tip:

  1. Do not push the sensor into stoney or rocky soil. If the soil is too hard and dry, the sensor can easily be damaged.
  2. Design for testing soil ONLY.
  3. It is recommended to totally insert the sensor into the soil and keep it in place for 2 to 3 minutes to get an accurate reading.
  • 1 x Soil Moisture Sensor
  • 1 x Screw ST D5.8*M3*15 Stainless Steel PA for Mounting
  • 1 x Stainless Steel Loop 19~298mm for Mounting
  • 1 x Fix Bracket 35.1x21x20mm Stainless Steel for WN51L
  • User Manual


    Technical information for the WH51L soil moisture sensor.

    • Moisture Range: 0~99%
    • Accuracy: +/- 5%
    • Resolution: 1%
    • 0%AD setting range: 0~200 initial value factory calibrated
    • 100%AD setting range: 0%AD+10~1000; Initial value factory calibrated
    • Transmission distance in open field: 100m (300 feet)
    • 868MHz UK / European frequency
    • Sensor reporting interval: 70 seconds / 10 seconds during rapid changes
    • Operating Temperature: -10°C to 50°C (14°f to 122°f)
    • Transmitter Housing Waterproof Level: IP66
    • Sensor Probe Waterproof Level: IP68
    • Power: 1 x AA LR6 Alkaline battery



      A copy of the WH51L manual can be viewed by clicking here.

      Important Tip:

      1. Do not push the sensor into stoney or rocky soil. If the soil is too hard and dry, the sensor can easily be damaged.
      2. Design for testing soil ONLY.
      3. It is recommended to totally insert the sensor into the soil and keep it in place for 2 to 3 minutes to get an accurate reading.

      2 year warranty from date of purchase from May 2025, 1 year on purchases before this date - return to supplier.

      See our terms and conditions for full details of our warranty details.
