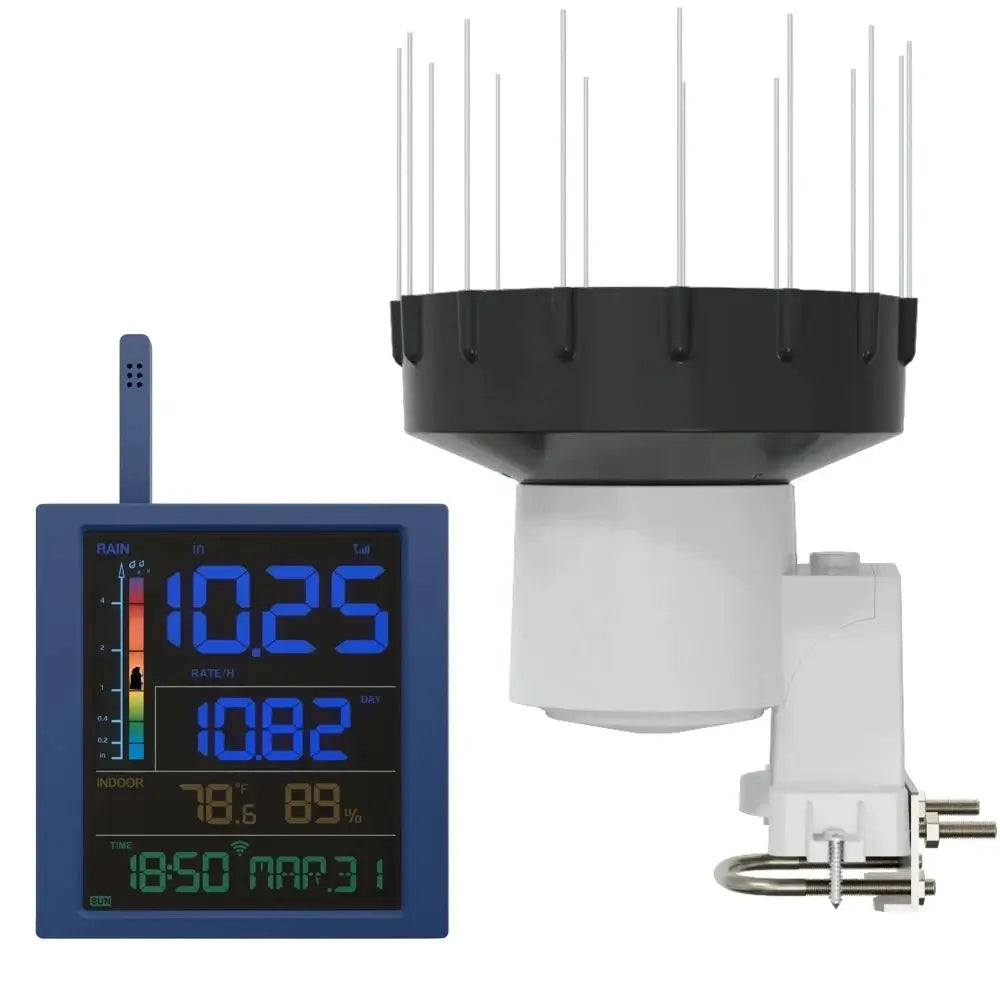

The WH1700_C display offers rain readings from the included WH40H gauge along with indoor temperature and humidity. This display also connects to WiFi for uploading the rain data to online services as well as separately available additional types of sensor.

The rain gauge  provides exceptional accuracy at 0.1mm / 0.01inch resolution and self emptying, now supplied with the heightened rain collector and anti-bird spikes as standard.

Ideal for monitoring the rain conditions in your backyard/garden/farmland/crops with 100m wireless transmission range.

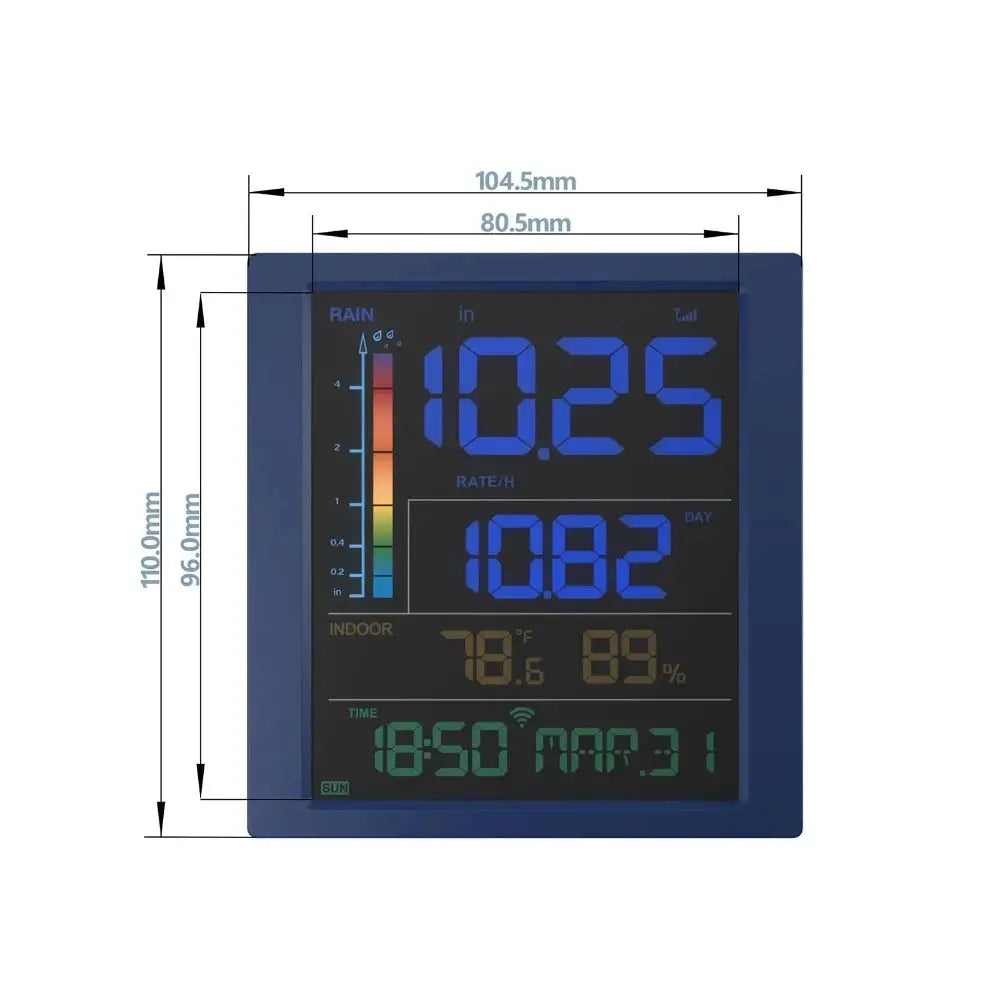

The 4.9" colour LCD displays rainfall (rate, event, day, week, month, year and total), indoor/outdoor temperature & humidity and up to 8 multi-channel temp & humidity sensors. The sensors are availalbe seperately.

The console also works as an IoT Wi-Fi gateway for real-time data upload to online weather platforms. Supports web-based configuration, sensor calibration and auto time and date setting when connected to WiFi.

Customisable units and also an adjustable backlight when powered via 5v DC input.

Features

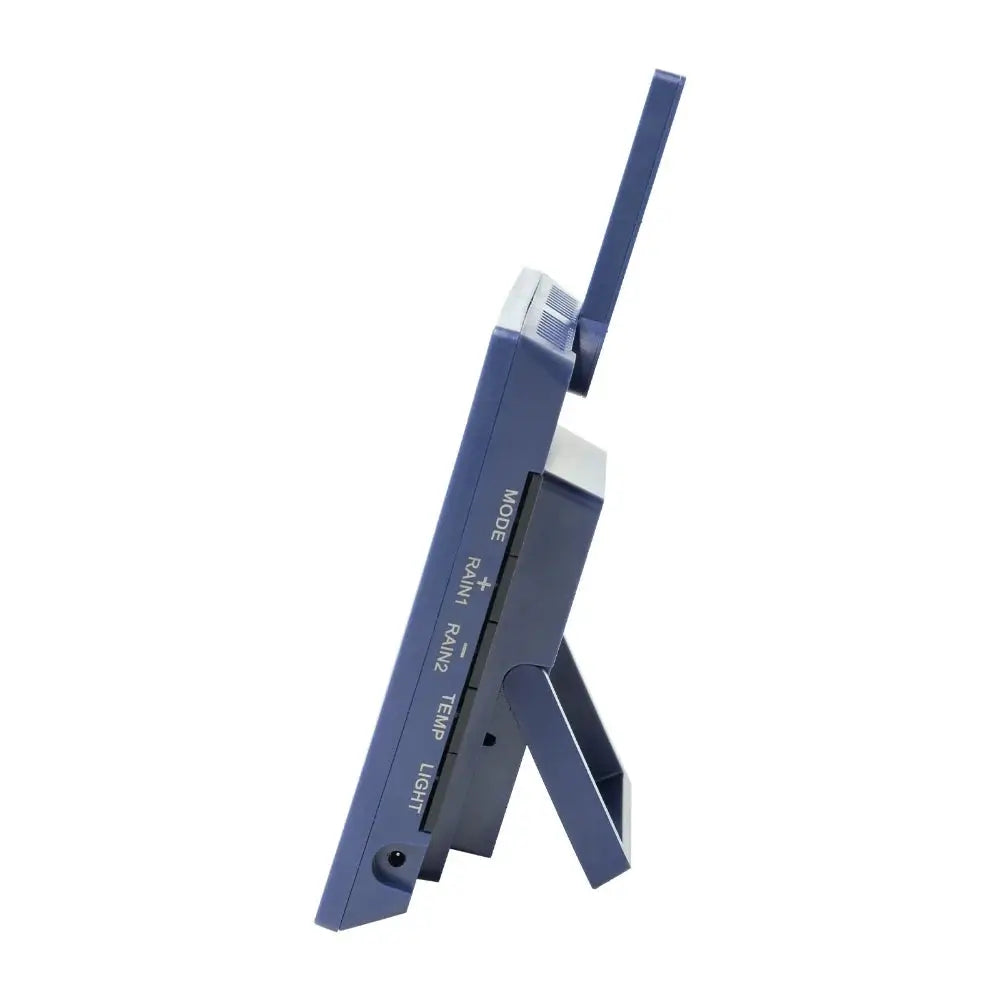

• WN1700_CAE colour console with WiFi connectivity for data upload
• Option for table standing or wall mounting
• WH40HAE measures rainfall rate recording hourly, daily, weekly, monthly and yearly data
• Display with rainfall, indoor temperature and humidity on the console
• Displays rainfall rate as coloured warning
• Includes new design rain collector with built in bird spikes
• Self emptying rain gauge

Included

• 1 x WN1700_C WiFi rain display console

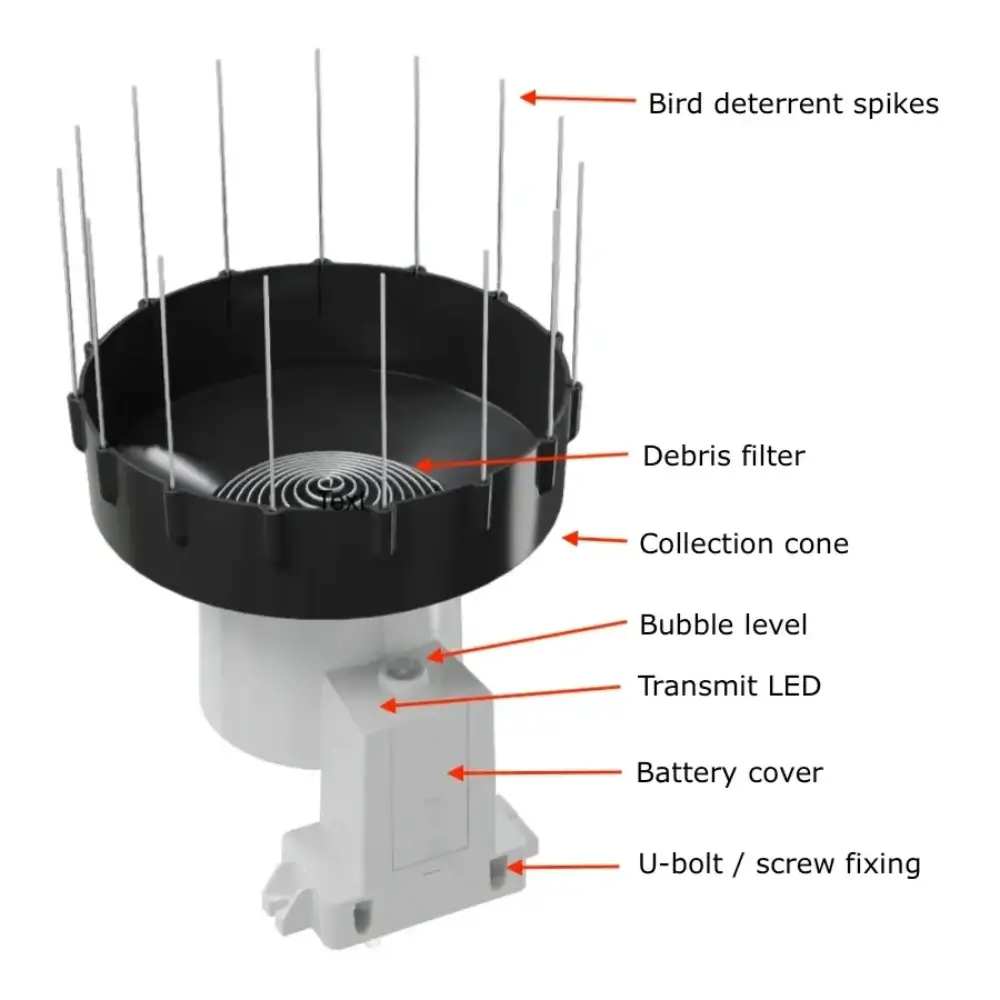

• 1 x rain gauge sensor WH40H which includes
  • WH40H sensor
  • U-bolts for top mounting on 25-50mm pole (not included)
  • Rain gauge debris filter
  • Bird deterrent spikes
  • Screws for wooden post top fixing
• USB power cable for console (requires USB power adapter available separately)
• User manual in electronic format

Technical

• Transmission distance in open field: 100m (300 feet)
• 868MHz UK and European frequency (AE model)
• Measurement range: 0 – 6000mm
• Sensor reporting interval: 49 seconds
• WH40H Power: 1 x AA 1.5V, WH40H
• WN1700_C Power: 2 x AA 1.5V WN1700_C along with 5V USB power (adapter available separately)
• Estimated battery life 12 months
