The Ecowitt WH0291 soil moisture LCD display is suitable for use with a single WH51 /WH51L soil moisture sensor (not included). It displays readings from the sensor every 72 seconds to let you know when to water your plant.

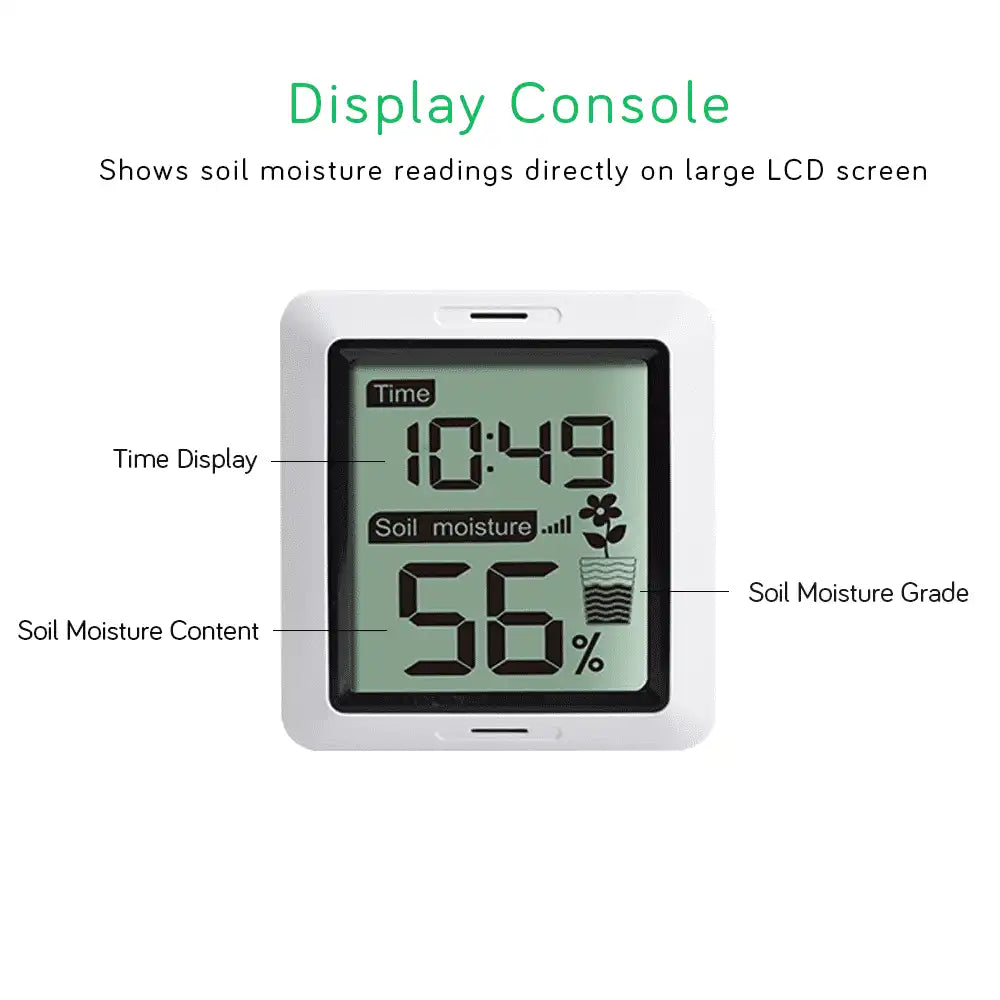

The digital LCD display with flower pot icon directly displays the moisture level, making it easy to read. When used in an environment with more than 1 WH51 sensor, only the first sensor to transmit will be displayed, other sensors will be ignored.

Features

• Displays soil moisture from indoor or outdoor sensor (not included)
• Includes WH0291 Display Console  (868MHz sensor reception, AE suffix)
• Custom mode display with 0%AD to 100%AD
• Manual calibration available for your soil type
• 12 / 24 hour digital time


Important Tip:

1. Do not push the sensor into stoney or rocky soil. If the soil is too hard and dry, the sensor can easily be damaged.
2. Design for testing soil ONLY.
3. It is recommended to totally insert the sensor into the soil and keep it in place for 2 to 3 minutes to get an accurate reading.

Includes

• 1 x WH0291AE Soil Moisture Display.
• Manual via electronic delivery

Technical & Manual

• Supports 1 x WH51/WH51L sensor (not WH52), where more that one sensor is present the one with the strongest signal is displayed
• Moisture Range:0~100%; Resolution: 1%
• 0%AD setting range:70~200; Initial value:70
• 100%AD setting range:0%AD+10~1000; Initial value:500
• 868MHz UK / European frequency (AE suffix)

• Sensor reporting interval: 70 seconds
• Power: 1 x AA LR6 Alkaline batteries (1 x display)

A copy of the WH0291 Soil Moisture display manual is available by clicking here.
