The WFC02 smart water timer with motorised valve helps you to automate your garden irrigation. This item must be paired with one of the many IoT gateways or consoles from Ecowitt to operate (available separately).

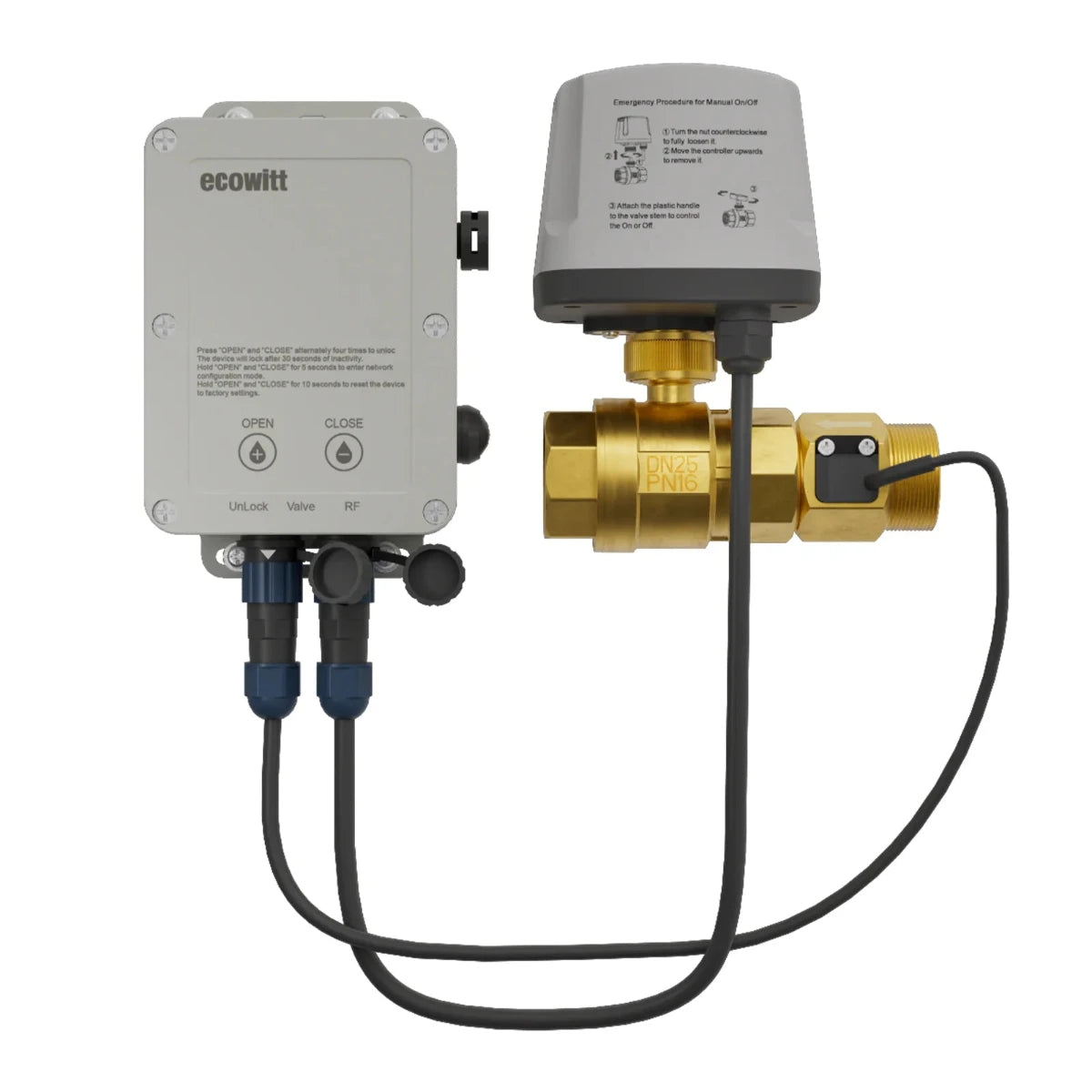

The WFC02 is available with the option of a flow meter allowing it to not only functions as a water timer but also allows real-time monitoring of water flow. This provides you with a better understanding of water usage in your home or business. The WFC02 supports cloud-based control and all water usage is stored in the cloud. Users can check their water usage anytime, manage and optimise it for more convenient control and achieve more scientific and rational water usage.

This product can be set up within the Ecowitt APP and can be linked with Ecowitt Soil Moisture Sensors to enable automatic irrigation. It is also possible to skip the current watering plan when predefined conditions are met, for example: rain is detected by an Ecowitt Rain Sensor, water temperature is too low/high. The SMART mode or plan skip feature is only accessible when hub is connected to our cloud service. Scheduled plans are saved on hub locally and the pre-set plans can still operate normally if your broadband has issues. Smart features require connection to the Ecowitt cloud service.

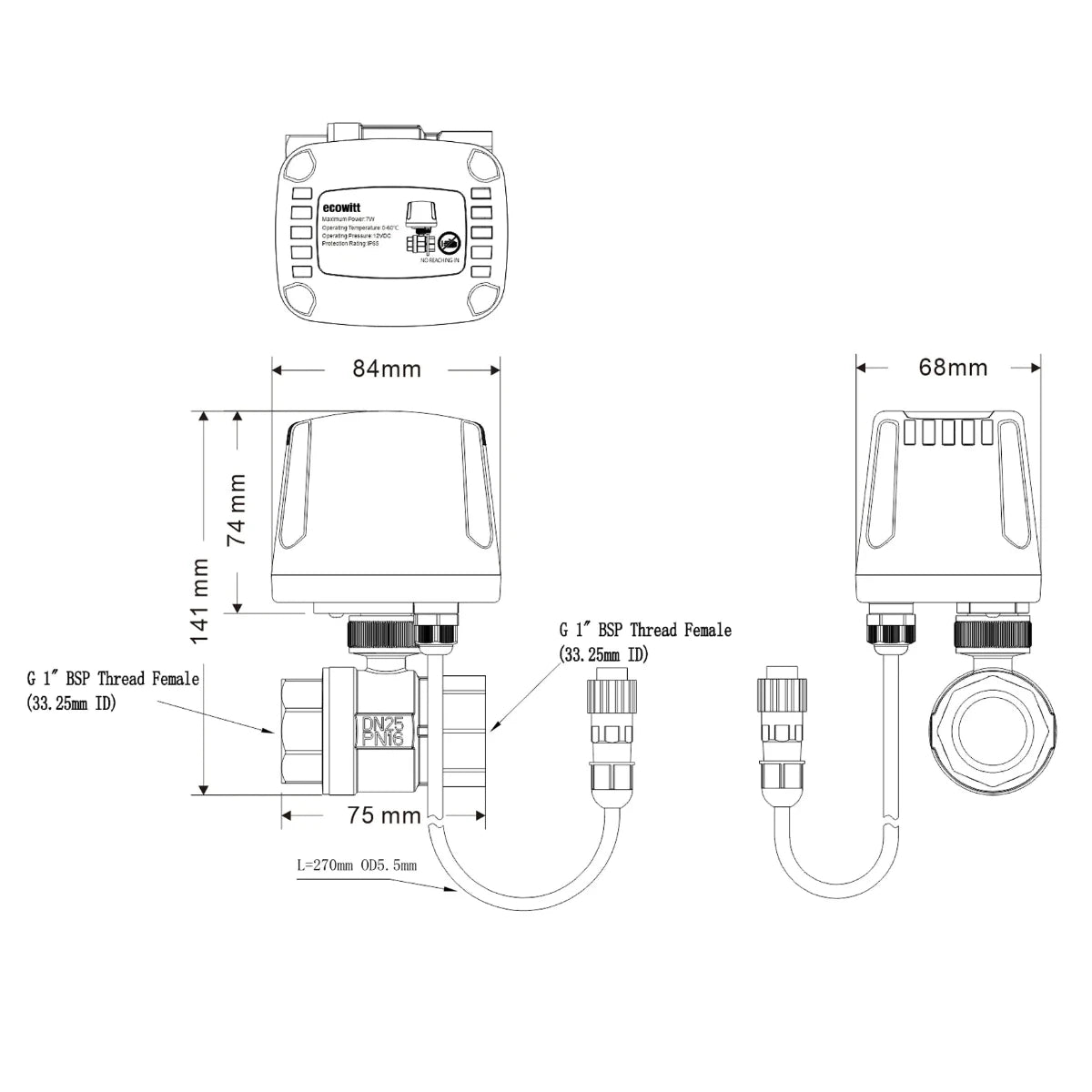

The WFC02 is supplied with 1" (25mm) BSP threaded connections.

Unlike some other brands, the Ecowitt WFC02 can be used with a variety of stations, click here to view the latest Ecowitt sensor matrix.

Features

• Single button with LED
• Scheduled watering plan

• Smart watering when connected to Ecowitt cloud services
• IP66 rated unit
• Must be used with a Ecowitt IoT gateway or console for control

Included

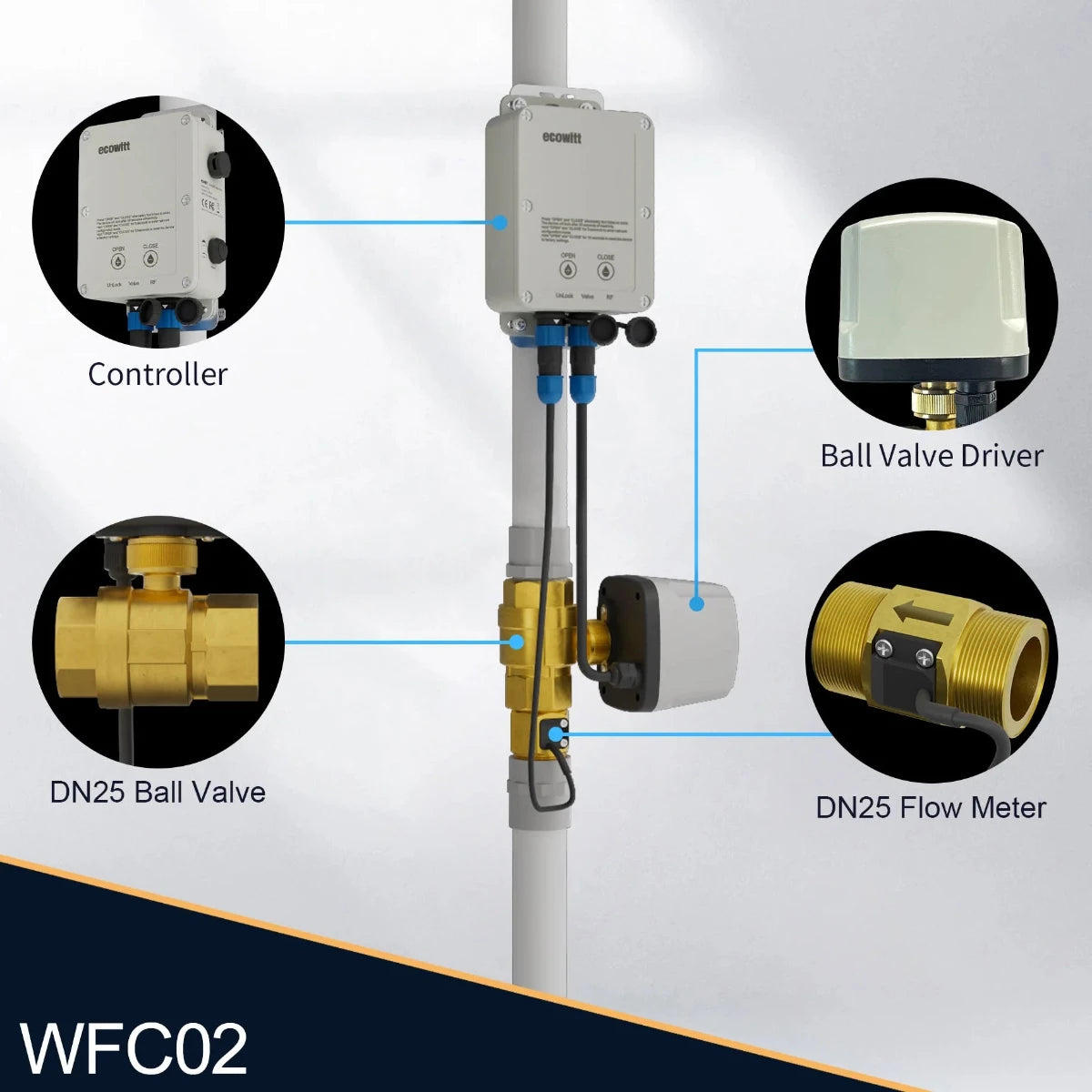

• 1 x Actuator
• 1 x Ball Valve (DN25)

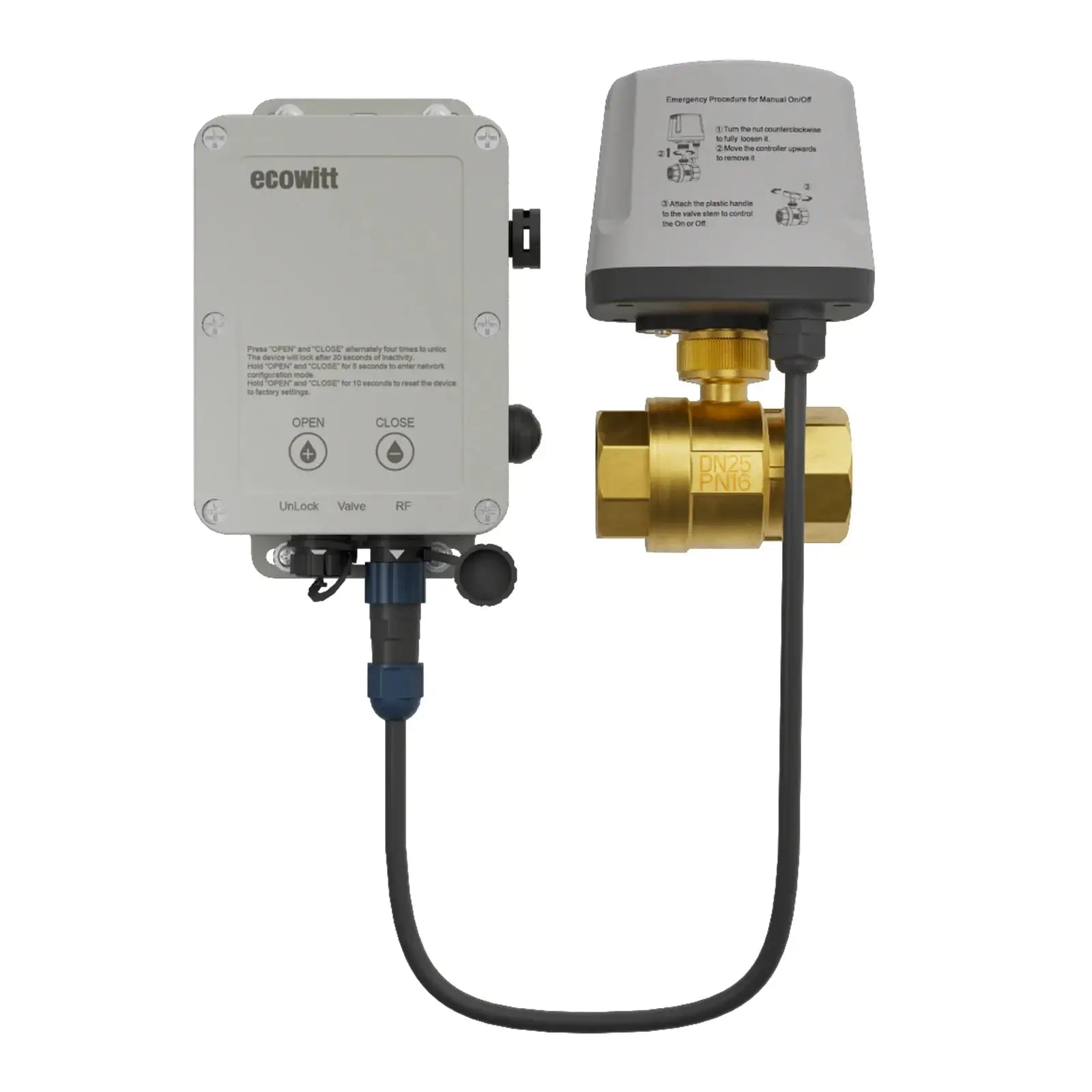

• available with or without 1 x Flow Meter
• 4 x PWA3.0*20mm Stainless steel self-tapping screws
• 4 x M5*8mm Screws
• 2 x Hose Clamp (Fits pipe diameter: 21-38mm)
• 2 x Hose Clamp Brackets
• 1 x Teflon Sealing Tape
• 1 x User Manual (this manual)
• 1 x Ball Valve Handle
• 1 x Twist Ties( used for handle)

Technical & Manual

• Transmission distance in open field: 100m(300 feet)

• Valve open/closure time approx 7 seconds
• 1" BSP connections
• Frequency: 868MHz (UK/Europe)
• Sensor reporting interval: 1 minutes

A copy of the WFC02 can be viewed in PDF format by clicking here.
