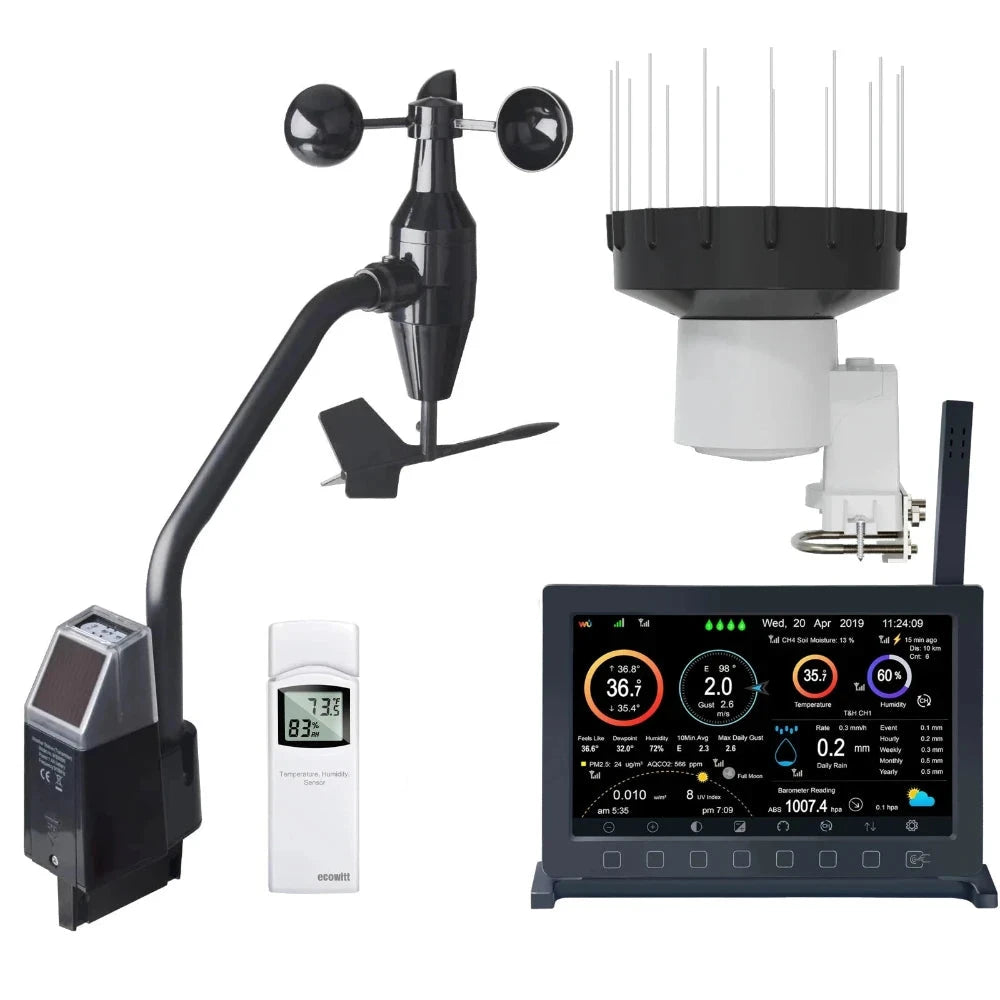

The Ecowitt HP2562 weather station consists of a WS68 standard anemometer with solar radiation and UV sensors, WN32 temperature & humidity sensor, a WH40H self emptying rain gauge and the HP2560 7" TFT full colour screen making an advanced weather station with full internet access.
The anemometer sensor measures wind speed, wind direction, UV level and Solar intensity.
Two additional sensors are supplied, a rain sensor & separate temperature / humidity sensor. The rain sensor is self emptying for easy of use and includes a spiral filter and anti perching spikes.

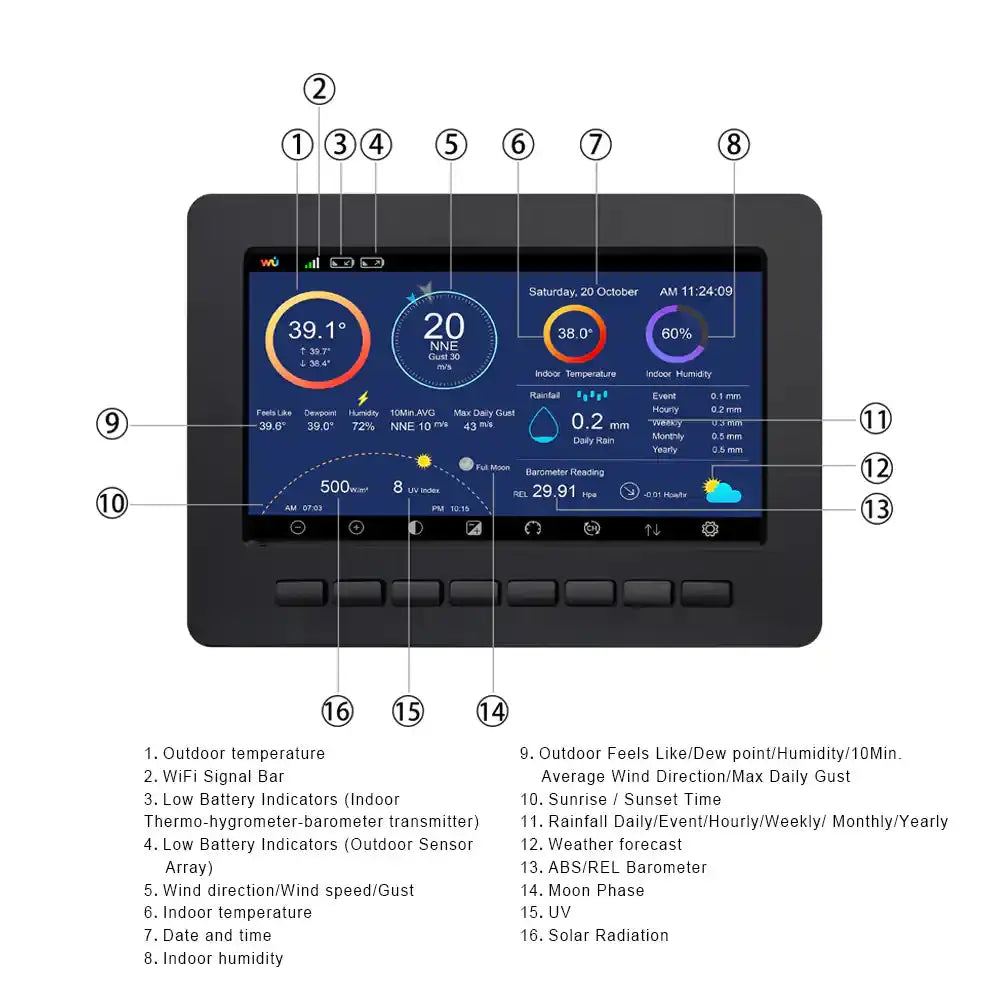

The 7" high resolution TFT colour screen has a friendly & well-designed interface with two selectable backgrounds (dark or light). The console displays wind speed and direction, dew point, rainfall, indoor outdoor temperature and humidity, barometric pressure, moon phase, solar radiation, UV and more. There is also a full colour weather forecast and you can also purchase a microSD memory card to store historical data locally. A 1GB card will store on average 10 years of data.

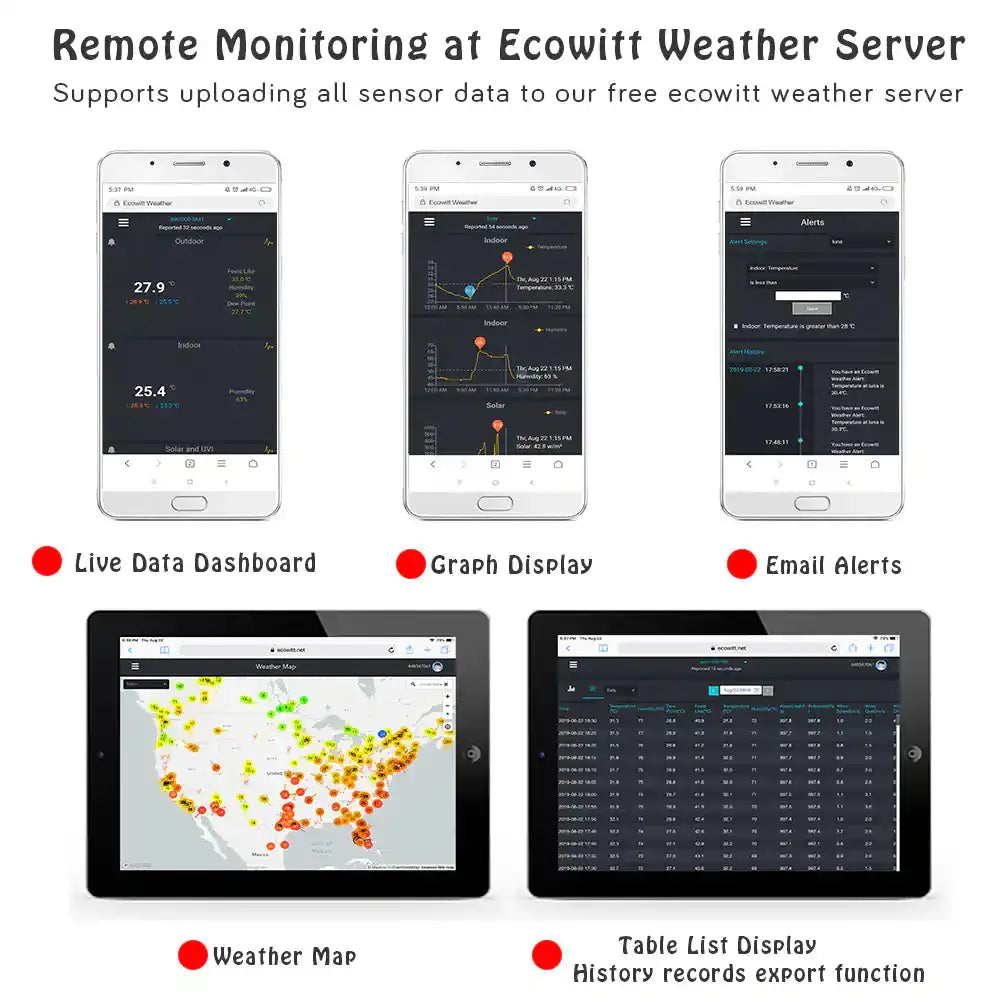

This data, along with the outdoor sensor data is uploaded to the FREE Ecowitt service via WiFi and is used to calculate rainfall rate, wind chill, dew point and heat index. All of this can be viewed on an iOS, Google App, or Ecowitt weather website in a browser.
You are not just limited to weather data on the Ecowitt weather site or App, you can share your data further afield with free access to the WoW-BE service (via custom upload), Weather Underground, WeatherCloud or your own web server.
Unlike some other brands, the Ecowitt HP2562 can be expanded with a variety of sensors, click here to view the latest Ecowitt sensor matrix.
All of these are available to view in the App, or online via Ecowitt.net and in the 3rd party services that support this sensor type.
Included
The Ecowitt HP2552 includes the following individual items:
- HP2560 TFT display with WiFi gateway console
- WN32 (WH32) outdoor temperature / humidity primary sensor
- WS68 sensor array measuring windspeed / direction / UV / light level
- WH40H Rainfall sensor for pole or post mounting
- Console power supply
- Brackets for WS68 / WH40 installation on 25-50mm pole (pole not supplied as standard)
- Instruction manuals for each item
Technical
The HP2562 weather station consists of:
HP2560 7" Full Colour TFT Screen
- Built in sensors for
- Temperature
- Humidity
- Atmospheric pressure sensor
- Configure WiFi via console
- Configure additional sensors via console
- Publishes sensor data to Internet based weather services including
- Ecowitt weather server: ecowitt.net.
- WeatherUnderground.com
- WeatherCloud
- WOW-BE
- Only sensor data supported by each specific service will be uploaded.
- View historical records from your weather station with optional microSD card
- View all current sensor and historical records, and graphs on Ecowitt.net server. History records can also be exported in Excel format
- Wireless Range from external sensors: 300 feet / 100m (in open areas)
- 868MHz UK and European frequency

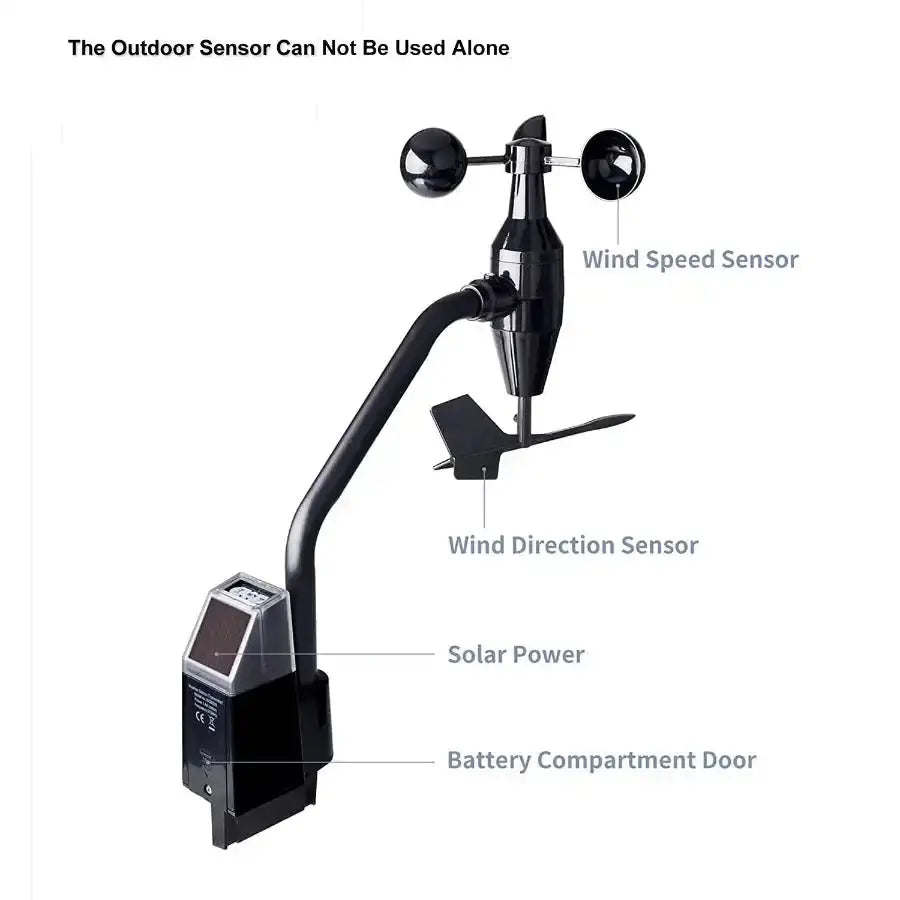

Anemometer sensor suite WS68
- Wind speed, gust speed and wind direction
- Calculated wind chill, dew point and heat index display on the WS View App
- Solar light intensity
- UV index
- Solar powered with 2 x AA battery backup
- 868MHz UK and European frequency
- Mounting bracket
Outdoor temperature & humidity sensor WH32
- Outdoor temperature and humidity
- LCD Display
- Powered by AA batteries
- 868MHz UK and European frequency

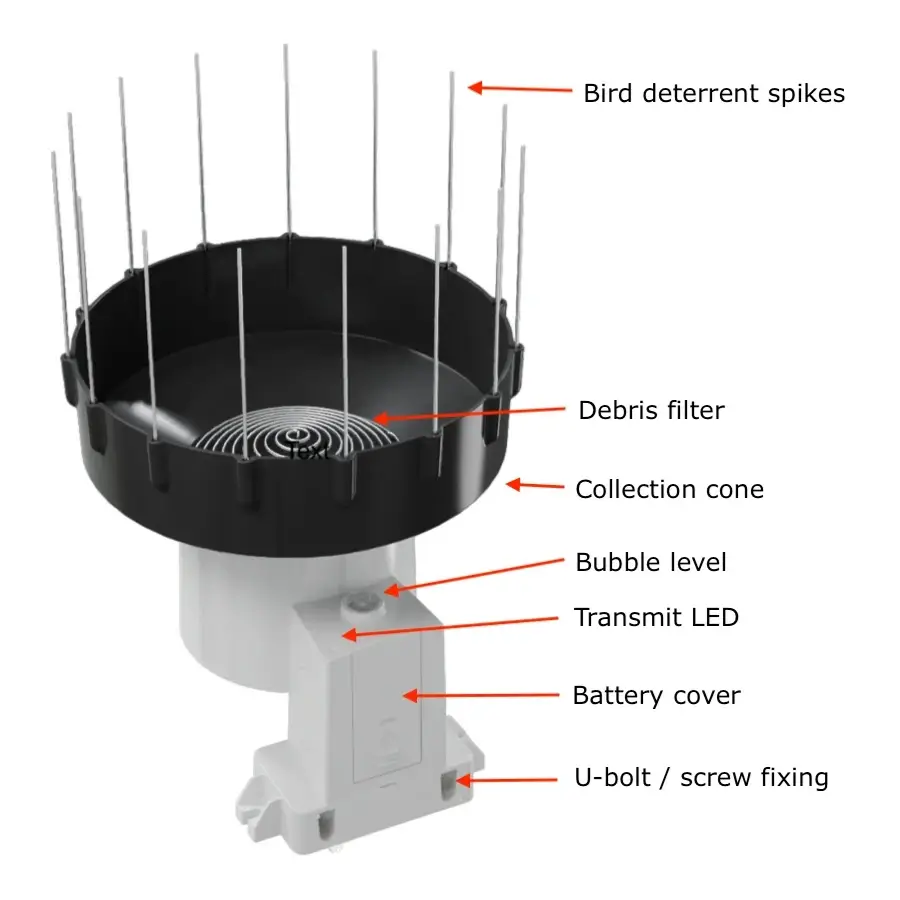

Self emptying rain gauge WH40H
- Rainfall rate and totals for day, week, month, and year
- Transmission distance in open field: 100m(300 feet)
- Rainfall measuring range: 0--6000mm
- Sensor reporting interval: 49 seconds
