Ecowitt 7-in-1 Sensor Array & WiFi Gateway Weather Station

Sale
£120.00
£120.00
£130.00
UK VAT included. Shipping calculated at checkout.
sensor-mounting-pole-and-fixings-for-various-outdoor-sensors
{"id":42971366654168,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"GENFIXPOLE","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mounting Pole for Various Outdoor Sensors","public_title":null,"options":["Default Title"],"price":1400,"weight":460,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}
rain-bucket-debris-screen-upgrade-kit
{"id":41442667462819,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"ECOWRAINDEBRIS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Rain Funnel Debris Filter to Reduce Blockages","public_title":null,"options":["Default Title"],"price":500,"weight":90,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}
ecowitt-10m-extension-battery-pack-for-ws80-ws90
{"id":55412605714810,"title":"WS67 \/ WS69","option1":"WS67 \/ WS69","option2":null,"option3":null,"sku":"ECOWS69PACK","requires_shipping":true,"taxable":true,"featured_image":{"id":76453728551290,"product_id":8344699699416,"position":3,"created_at":"2025-05-22T10:57:31+01:00","updated_at":"2025-05-22T10:57:33+01:00","alt":null,"width":800,"height":800,"src":"\/\/weatherspares.co.uk\/cdn\/shop\/files\/Ecowitt-BP0001-batterypack10m_eb8f6369-03e4-4427-b545-d2f4a2588de1.png?v=1747907853","variant_ids":[55412605714810]},"available":true,"name":"Ecowitt 10 meter Battery Pack Extension for Sensors (see description) - WS67 \/ WS69","public_title":"WS67 \/ WS69","options":["WS67 \/ WS69"],"price":2400,"weight":110,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":65971752927610,"position":3,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/weatherspares.co.uk\/cdn\/shop\/files\/Ecowitt-BP0001-batterypack10m_eb8f6369-03e4-4427-b545-d2f4a2588de1.png?v=1747907853"}},"requires_selling_plan":false,"selling_plan_allocations":[]}
bird-deterrent-z-spikes-for-rain-bucket-or-sonic-anemometer
{"id":44040827011288,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"ECORAINBZ","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Bird Deterrent Z-spikes for Rain Funnel or Sonic Anemometer","public_title":null,"options":["Default Title"],"price":1700,"weight":100,"compare_at_price":2000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}
Product Details

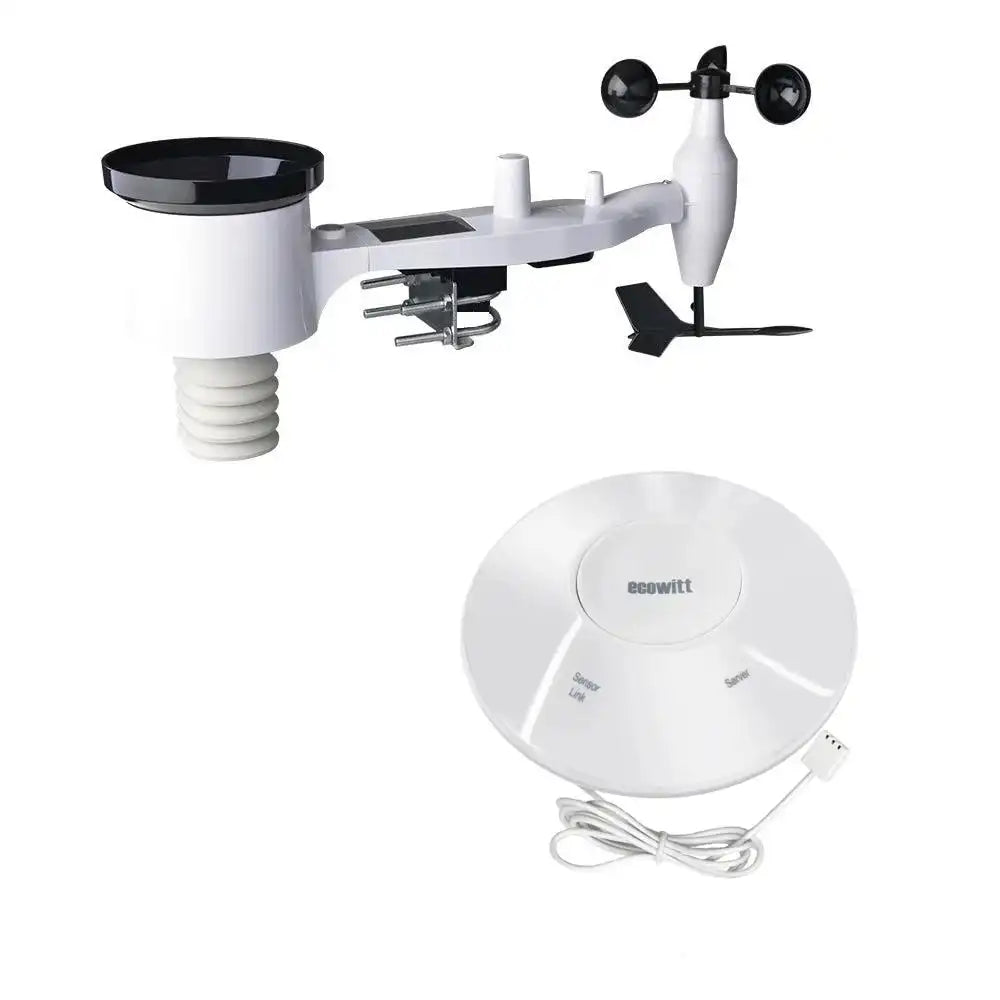

The Ecowitt gateway weather station includes a solar powered 7-in-1 outdoor sensor and the choice of IoT WiFi gateways. This station makes an ideal starter pack for those that wanting a weather station with full internet access and that can be expanded.

The outdoor 7-in-1 sensor measure temperature, humidity, wind speed, wind direction, rainfall, UV level and light intensity.

The gateway can be configured through the Ecowitt App or a web browser so a smart device is optional for the setup. The gateway connects to the included outdoor sensor array along with a variety of additional optional sensors. With Internet of Things (IoT) the gateway can control and manage Ecowitt IoT devices such as water valves and power sockets. This is a great starter pack for setting up your own weather station ecosystem.

The WiFi gateway is USB powered and also has indoor temperature, humidity and barometric pressure sensors on a wired probe so that they can be kept away from sources of heat which would skew readings.

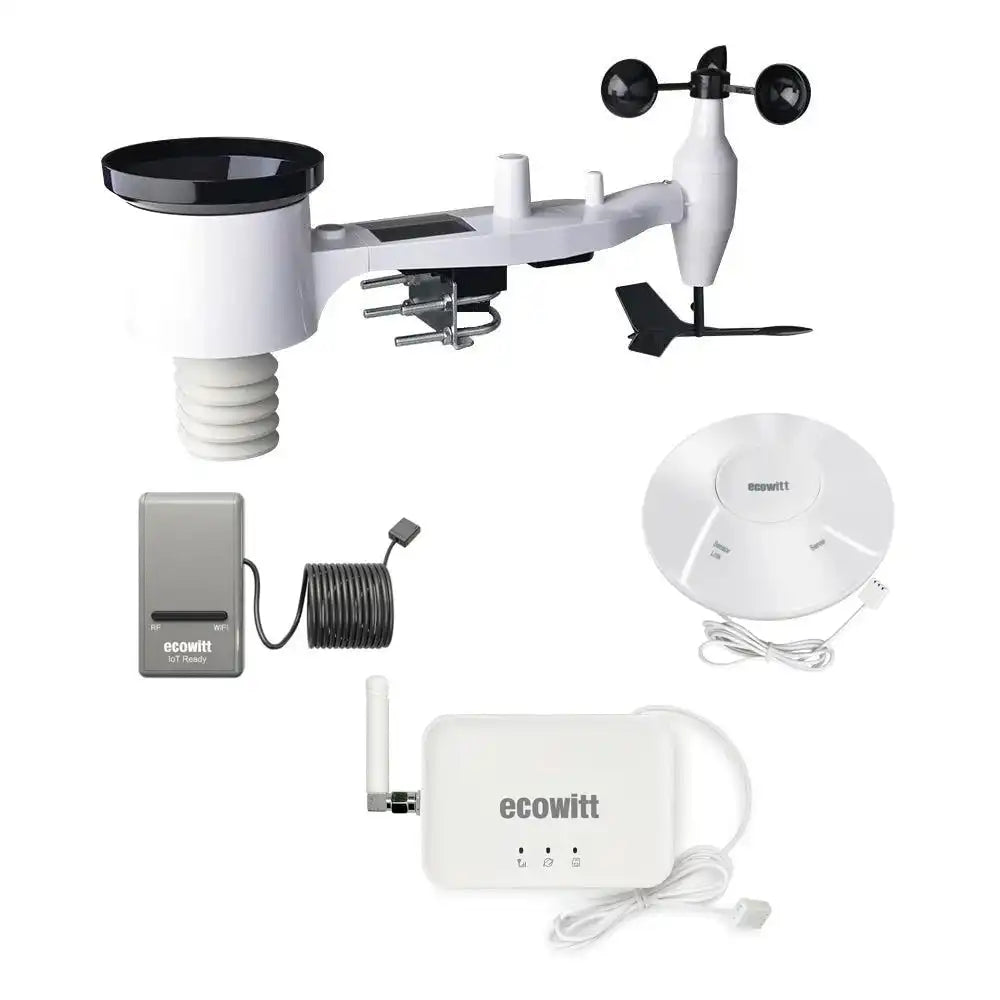

The GW1201 model includes the standard WiFi gateway with IoT control, or there is the GW2002 model which adds a wired LAN option and finally the GW3002 models which adds an external antenna and MicroSD card slot for local data recording.

All the sensor data is uploaded to the Ecowitt service via WiFi and is used to calculate rainfall rate, wind chill, dew point and heat index. All of this can be viewed on the App, or Ecowitt weather website in a browser.

You are not just limited to weather data on the Ecowitt weather site or App, you can optionally share your data further afield with access to:

  • WoW service (UK MetOffice) - free
  • Weather Underground - free
  • WeatherCloud - optional subscription
  • your own web server
  • HomeSeer smart home integration
  • Home Assistant smart home integration

Unlike some other manufacturers, the Ecowitt stations can be used with a variety of sensors, click here to view the latest Ecowitt sensor matrix.

    All additional sensors can be viewed in the Ecowitt App, or online via Ecowitt.net and within 3rd party services that support this additional sensor type.



    Included

    The Ecowitt gateway station includes the following items:

    • A choice of

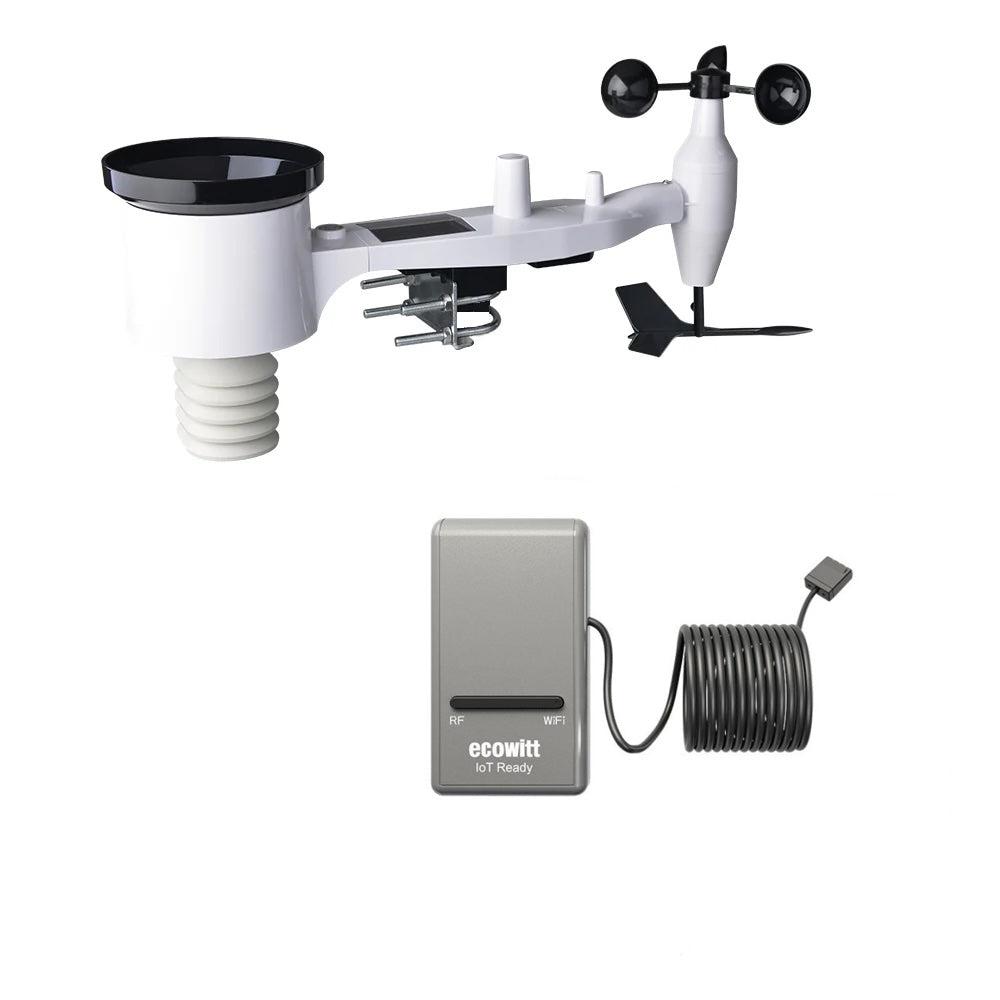

      • GW1200 IoT WiFi gateway (GW1201 model)
      • GW2000 IoT WiFi gateway with wired LAN connection (GW2002 model)

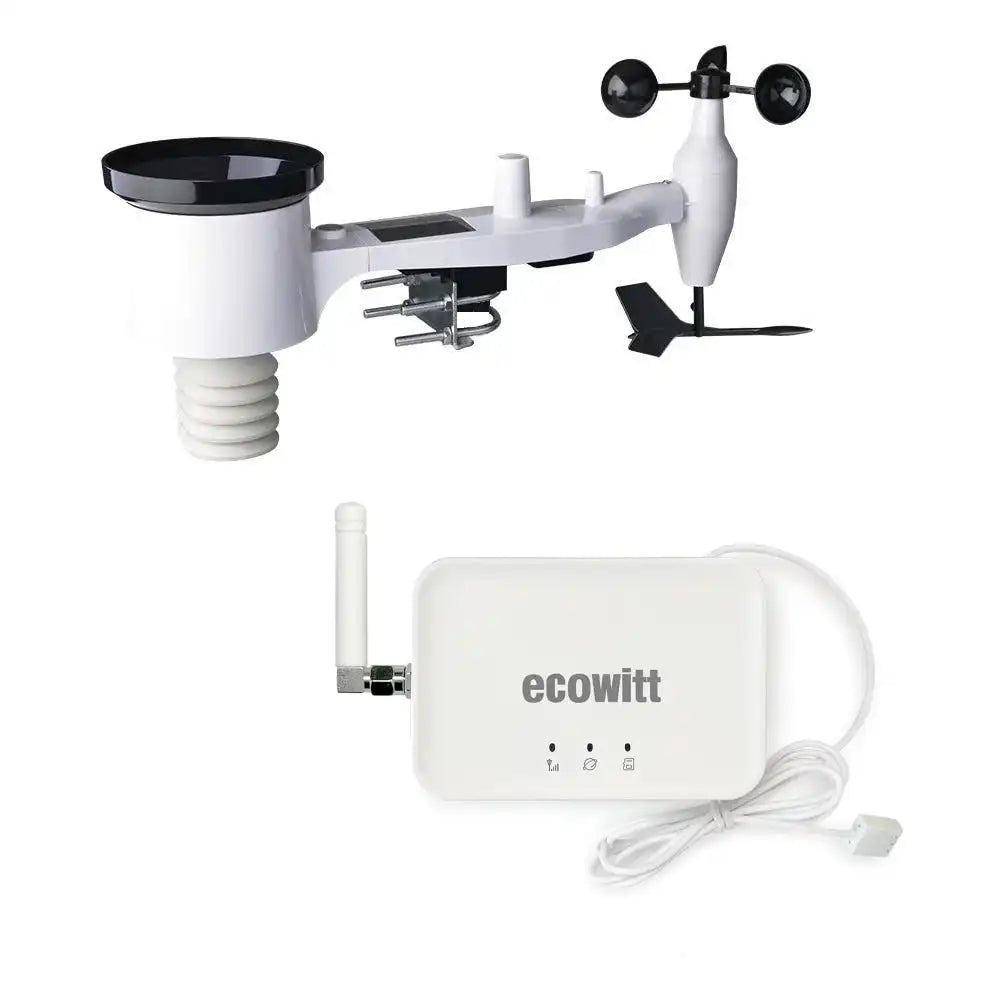

      • GW3000 IoT WiFi gateway with wired LAN and MicroSD card slot (GW3002 model)
    • USB extension cable for gateway
    • WS69 7-in-1 sensor array 868MHz (UK/EU approved)
      • Pre installed rain cone
      • Wind vane
      • Wind cups
      • Installation bracket  for 25-50mm pole (pole not supplied as standard)
    • Instruction manual via electronic delivery



    Technical & Manual

    WiFi Gateway with USB power

    • 3 Built-in sensors
      • Temperature (-10°C - 60°C; resolution: 0.1°C)
      • Humidity (1% ~ 99%; resolution: 1%; accuracy: ± 5% )
      • Atmospheric pressure sensor (300 – 1,100 hPa ; accuracy: ± 5 hPa)
    • Configure WiFi gateway via your web browser or App
    • Configure additional sensors via your web browser or App
    • Ecowitt IoT device control
    • GW2002 adds wired LAN connection
    • GW3002 adds wired LAN, MicroSD card slot and external antenna
    • Publishes sensor data to Internet based weather services including
      • Ecowitt weather server: ecowitt.net
      • WeatherUnderground.com
      • WeatherCloud
      • MetOffice WoW
      • Only sensor data supported by each specific service will be uploaded.
    • View historical records from your weather station (outdoor temperature, humidity, wind, rain)
    • View all current sensor and historical records, and graphs on Ecowitt.net server. History records can also be exported in Excel format
    • Wireless Range from external sensors: 300ft/100M (in open areas)
    • 868MHz UK and European frequency
    • The gateway is USB powered (power supply available separately)

        WS69 7-in-1 sensor suite

        • Outdoor temperature and humidity
        • Wind speed, gust speed, and wind direction
        • Rainfall rate and totals for day, week, month, and year
        • Calculated wind chill, dew point and heat index display on the WS View App
        • Solar light intensity
        • UV index
        • Solar powered with 2 x AA battery backup
        • 868MHz UK and European frequency
        • Mounting bracket for 25-50mm pole (pole not supplied as standard)


        IMPORTANT quick start for GW1200 gateway setup can be downloaded here.

        Product Warranty

        2 year warranty from date of purchase from January 2025, 1 year on purchases before this date - return to supplier. Batteries are excluded from warranties as they are classed as a consumable item.

        See our terms and conditions for full details of our warranty details.
