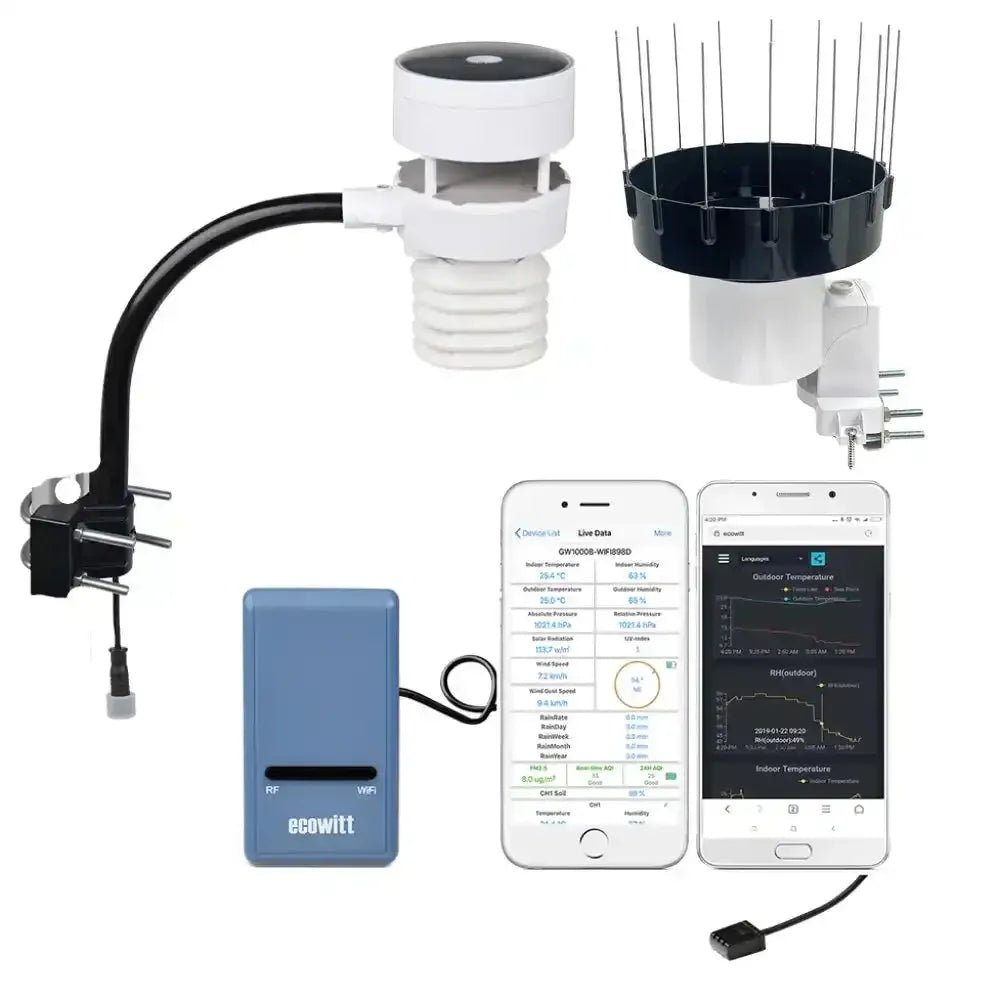

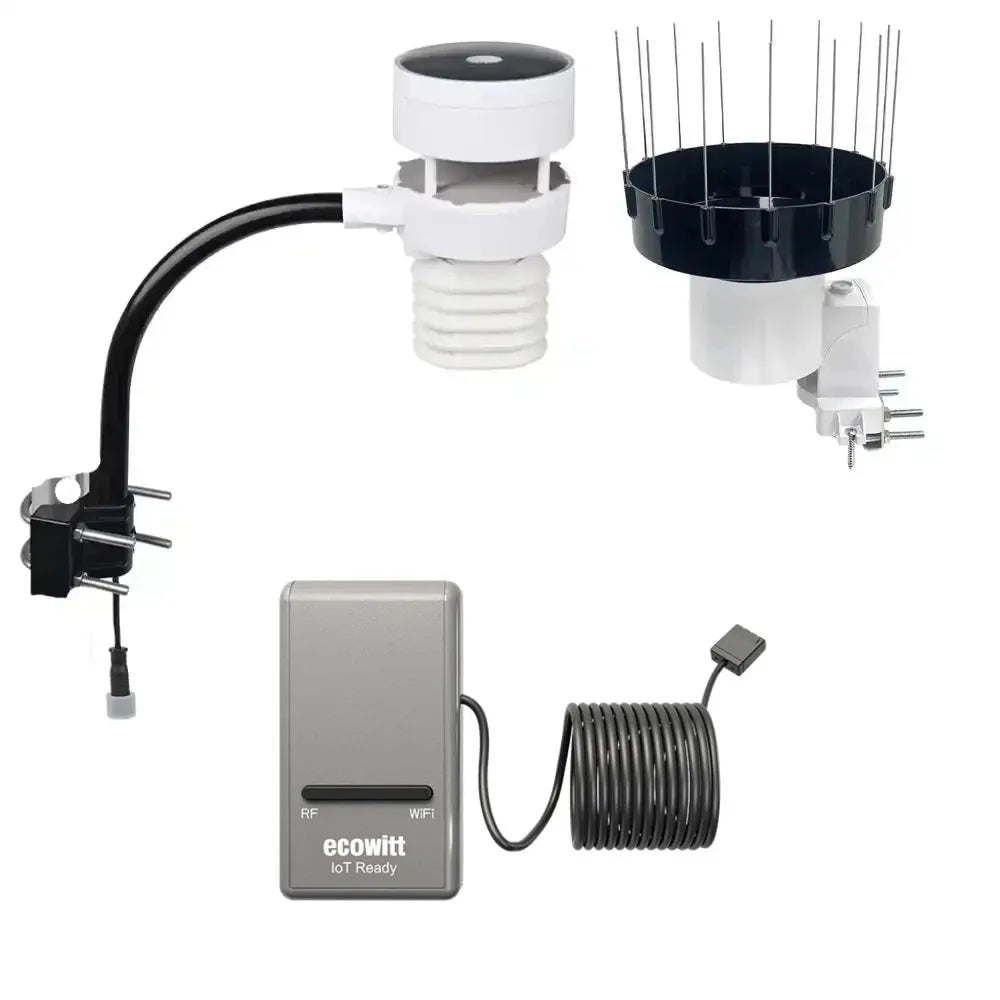

The Ecowitt GW1203 weather station consists of the ultrasonic wind, temperature, humidity, solar radiation and UV sensor, the WiFi gateway (GW1200) and self emptying rain gauge making an advanced sensor set for those that want an expandable weather station with full internet access.

The sonic anemometer sensor pack measures temperature, humidity, wind speed, wind direction, UV level and Solar intensity.

The separate rain sensor measures rain fall and is self emptying for easy of use and includes anti-bird spikes and a metal debris filter.

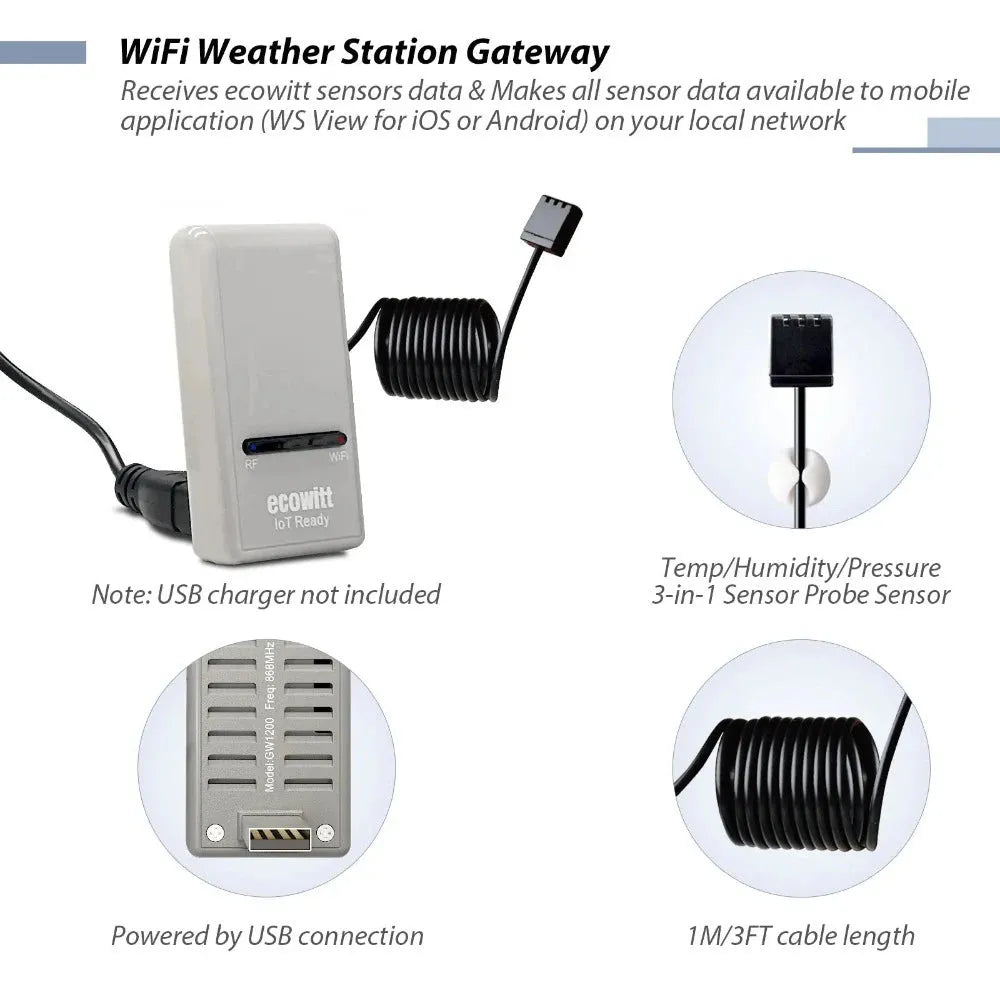

The GW1200 WiFi gateway is USB powered and also has builtin temperature, humidity and barometric pressure sensors for indoor readings.  These sensors are placed on a wired probe so that they can be kept away from sources of heat which would skew readings. The GW1200 gateway is also Internet of Things (IoT) ready and is able to control a variety of water valves and smart plugs from Ecowitt.

This gateway data, along with the outdoor sensor data is uploaded to the Ecowitt online service via WiFi and is used to calculate rainfall rate, wind chill, dew point and heat index. All of this can be viewed on the App, or Ecowitt weather website via a browser.

You are not just limited to weather data on the Ecowitt weather site or App, you can share your data further afield with free access to Weather Underground, WeatherCloud and your own web server.

All of these are available to view in the App, or online via Ecowitt.net and in the 3rd party services that support this sensor type.

Included

The Ecowitt GW1203 includes the following items:

• GW1200 IoT WiFi gateway

• USB power extension cable for GW1200 gateway
• WS80 Ultrasonic 6-in-1 sensor array with revised design for improved accuracy during rainfall
• WH40H Rainfall sensor with bird spikes

• Instruction manual via electronic delivery


Technical & Manual

The GW1203 consists of three key components.

GW1200 WiFi Gateway with USB power

• 3 Built-in indoor sensors
• Temperature (-10°C - 60°C; resolution: 0.1°C)
• Humidity (1% ~ 99%; resolution: 1%; accuracy: ± 5% )
• Atmospheric pressure sensor (300 – 1,100 hPa ; accuracy: ± 5 hPa)
• Configure gateway WiFi via web interface or mobile app
• Configure additional sensors via the web interface or mobile app
• Publishes sensor data to Internet based weather services including
• Ecowitt weather server: ecowitt.net
• WeatherUnderground.com
• WeatherCloud
• Only sensor data supported by each specific service will be uploaded.
• View historical records from your weather station (outdoor temperature, humidity, wind, rain)

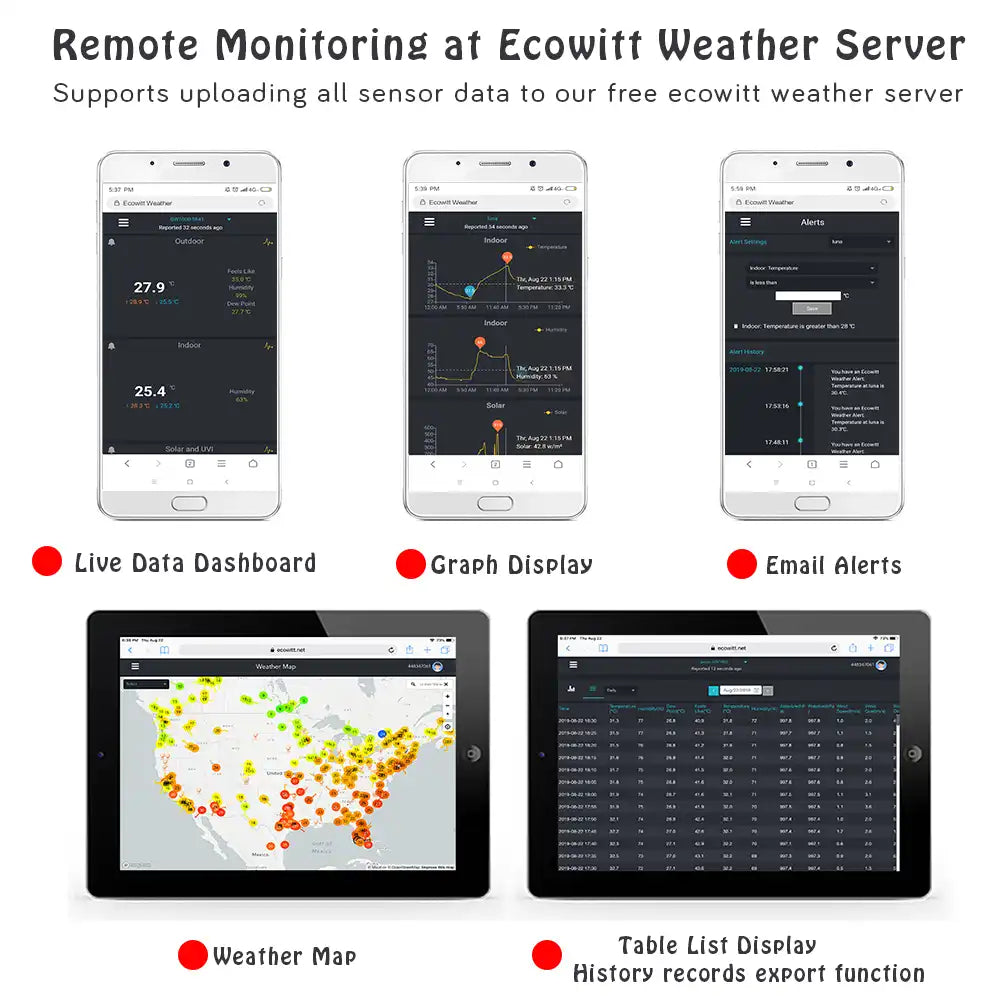

• View all current sensor and historical records, and graphs on Ecowitt.net server. History records can also be exported in Excel format
• Wireless Range from external sensors: 300 feet / 100m (in open areas)
• 868MHz UK and European frequency
• GW1200 gateway is USB powered (power supply available separately)

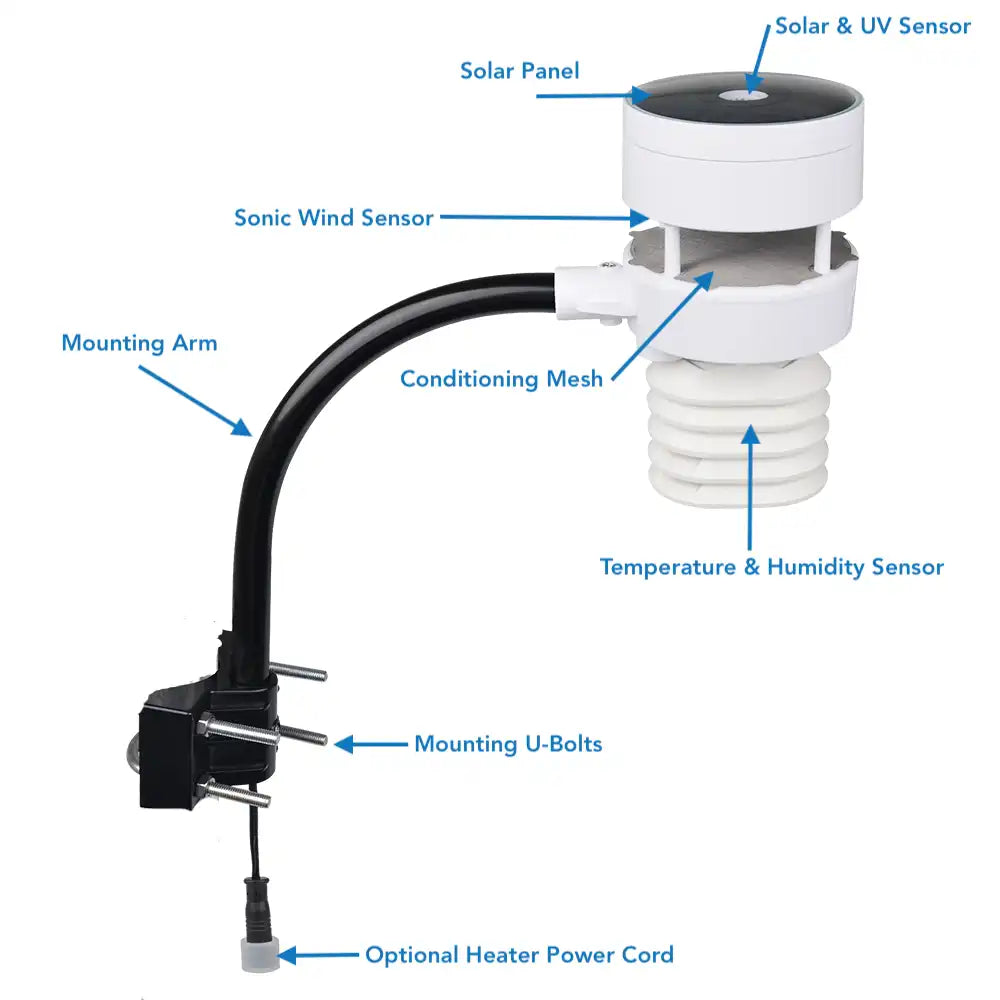

Ultra Sonic 6-in-1 sensor suite WS80

• Outdoor temperature and humidity
• Wind speed, gust speed, and wind direction
• Calculated wind chill, dew point and heat index display on the WS View App
• Solar light intensity
• UV index
• Solar powered with 2 x AA battery backup
• 868MHz UK and European frequency
• Mounting bracket for 30-50mm 1.25-2" pole  (pole not supplied as standard)

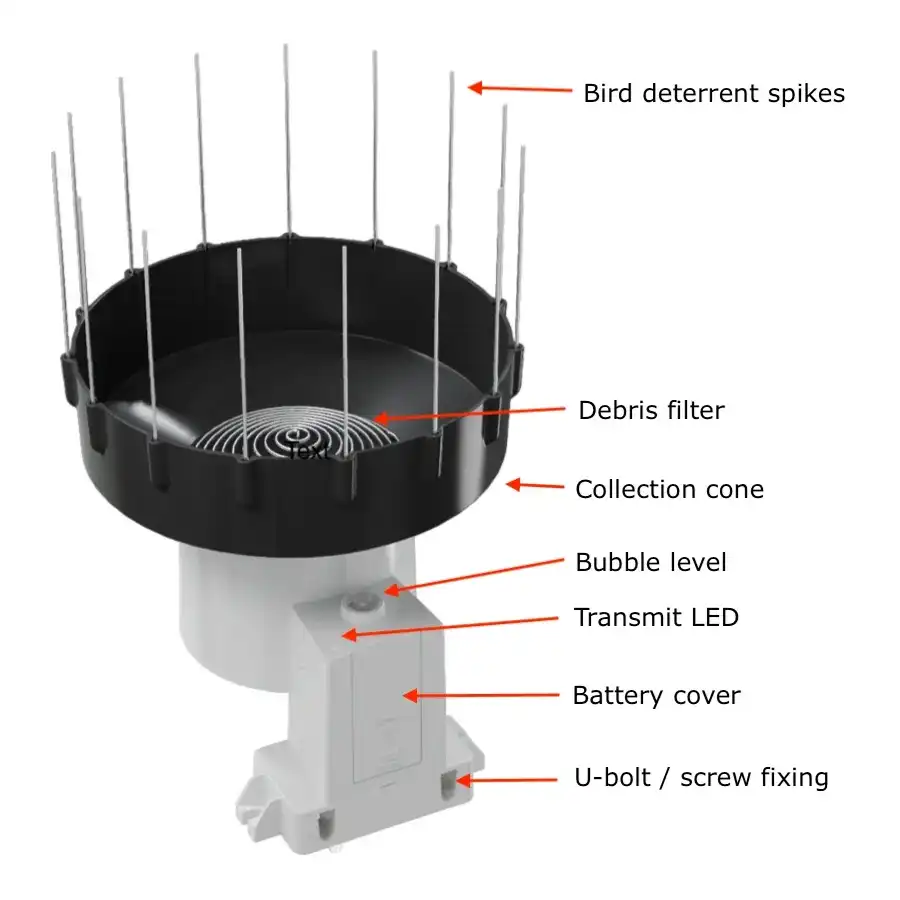

Self emptying rain gauge WH40H

• Rainfall rate and totals for day, week, month, and year
• Transmission distance in open field: 100m(300 feet)
• Rainfall measuring range: 0--6000mm
• 868MHz UK and European frequency
• Sensor reporting interval: 49 seconds
• Post mounted or use the included mounting bracket for a 25-50mm pole (pole not supplied as standard)

The GW1203 consists of a number of components for which instructions are available separately.
