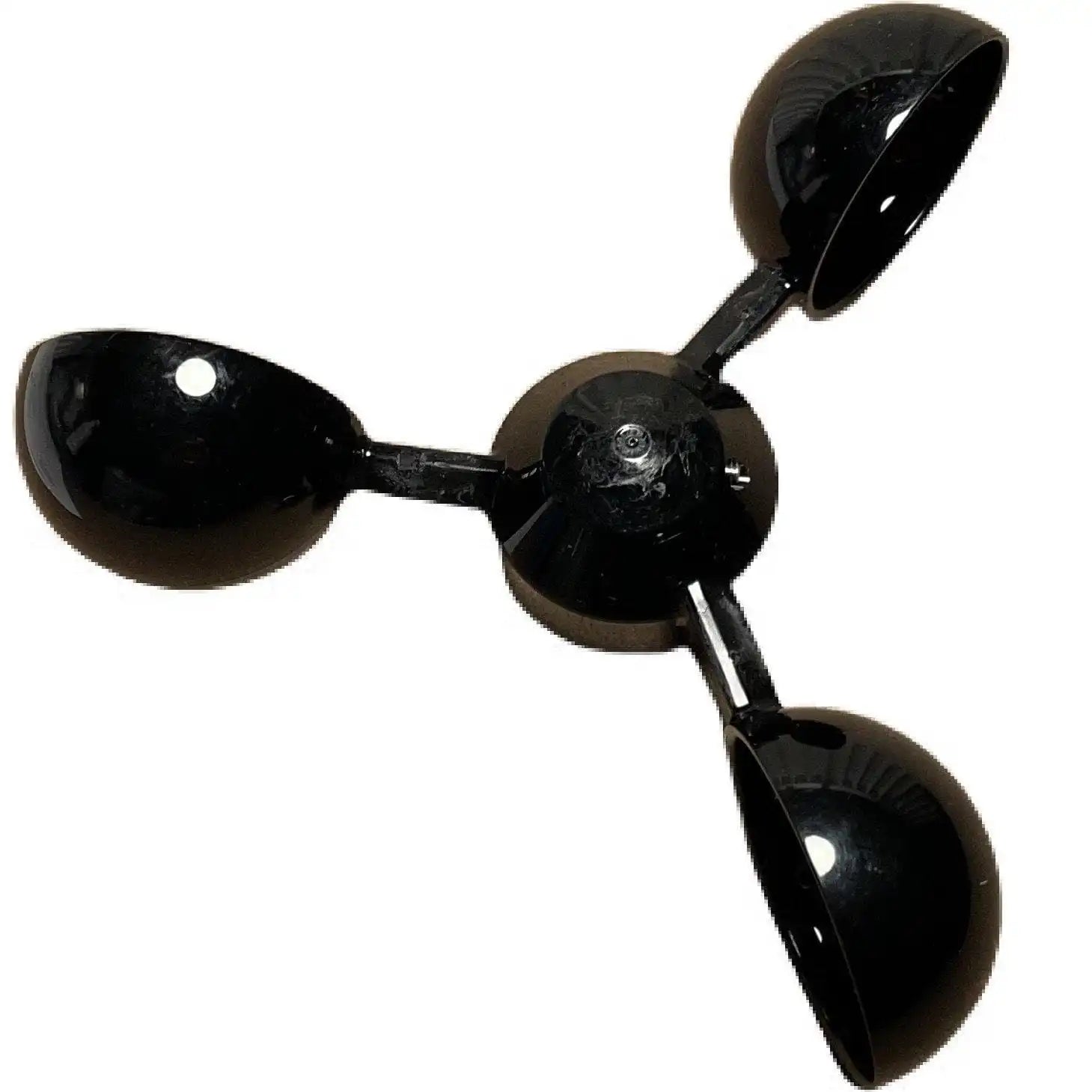

Davis Vantage Vue Wind Cups 7342.178
- Regular price
- £19.00 GBP
- Sale price
- £19.00 GBP
- Regular price
-
- Unit price
- / per
UK VAT included.
Shipping calculated at checkout.
1 review
An original replacement part from Davis to replace lost or damaged Vantage Vue cups.
Requires Davis allen key to install which was originally supplied with the weather station, replacements also available from Weather Spares.
Requires Davis allen key to install which was originally supplied with the weather station, replacements also available from Weather Spares.
Not suitable for Pro2 or earlier Pro, Wizard and Monitor models.
How to install
- Move the Vue sensor suite to a safe working level if necessary noting its orientation before removal.
- Locate the hex bolt on the side of the existing wind cups, unless these are missing, and loosen. There is no need to fully remove the hex bolt.
- Pull the cups straight up to remove.
- Ensure the hex bolt on the new cups is loosened enough that these can be pushed onto the shaft. There is no correct orientation.
- Tighten the wind cups using the hex bolt on the side until this grips the metal shaft. A gentle pull up will ensure they are secure.
- Test by spinning and checking a reading registers.
- Return the sensor suite to its original location and orientation.
If you have lost your Allen key to remove the hex bolt, these are available as a spare item.
