Davis Vantage Pro2 Wireless ISS Transmitter (pre 2016) 7345.978

* * * LAST ONE AT LOWER PRICE * * *

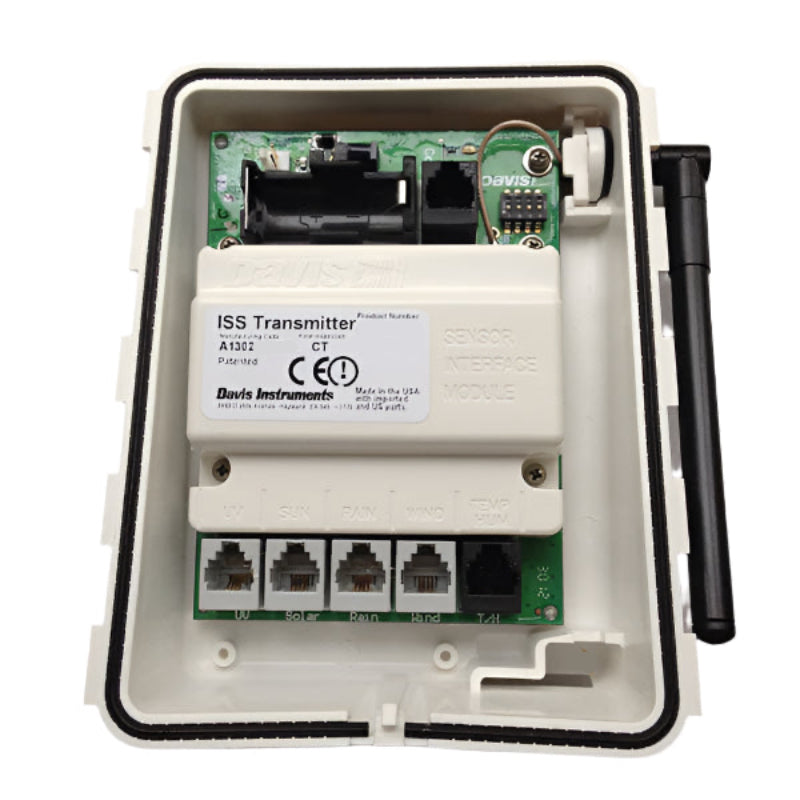

Replacement Wireless Vantage Pro2 ISS PCB which includes the rear plastic case and connected antenna. Wireless model for use within the UK and European Union suitable for all models of Pro2 and a number of external sensor transmitters that have the 5 sensor connectors. The UK/EU wireless models include a CE logo printed on the information plate as shown in the product images.

In January 2016 a revision was made to the PCB to support the latest high accuracy temperature / humidity sensor.  If this transmitter is used to send temperature data from a unit manufactured after 1st January 2016 a small offset of 0.5C will need to be applied at the console - full details below.

White internal labelling may vary, this is a suitable replacement PCBA (printed circuit board assembly) for a wireless Vantage Pro2 or Vantage Pro2 Plus Integrated Sensor Suites, Wireless Temperature Station, Wireless Temperature/Humidity Station and for Anemometer Transmitter Kit. Ensure that the transmitter label has a CE printer logo for compatibility or console has an EU, UK or OV suffix after the 4 number product ID.

An installation video from Davis can be found in the product gallery.

If you are replacing a December 2015 or later transmitter with this unit and are using a temperature sensor after December 2015 you will need to make an offset adjustment on the Davis console decrease the temperature reading by 0.5C (0.9F) to prevent a higher than expected value.

To identify the age of your transmitter. Check the manufacturing code on the transmitter white panel above the sensor connectors. This will consist of 1 or 2 letters followed by 6 numbers. The number format is YYMMDD, so a transmitter with 120213 would be 13th February 2012. On transmitters before 2011 a single digit was used YMMDD.

• Operating Temperature: -40¡ to +150¡F (-40¡ to +65¡C)
• Battery Life (3-Volt Lithium cell): 8 months without sunlight - greater than 2 years depending on solar charging at installed location
• CR123A 3V disposable Lithium battery required (available separately)
• Connectors, Sensor: Modular RJ-11 Wind / Rain / Temp / UV / Solar
• Housing Material: UV-resistant ABS, ASA plastic
• Transmit Frequency: 868.0 - 868.6 MHz FHSS (European)
• ID Codes Available: 8
• Range: Line of Sight up to 1000 feet (300 m)

1 year warranty from date of purchase - return to supplier. Batteries are excluded from warranties as they are classed as a consumable item.

See our terms and conditions for full details of our warranty details.
