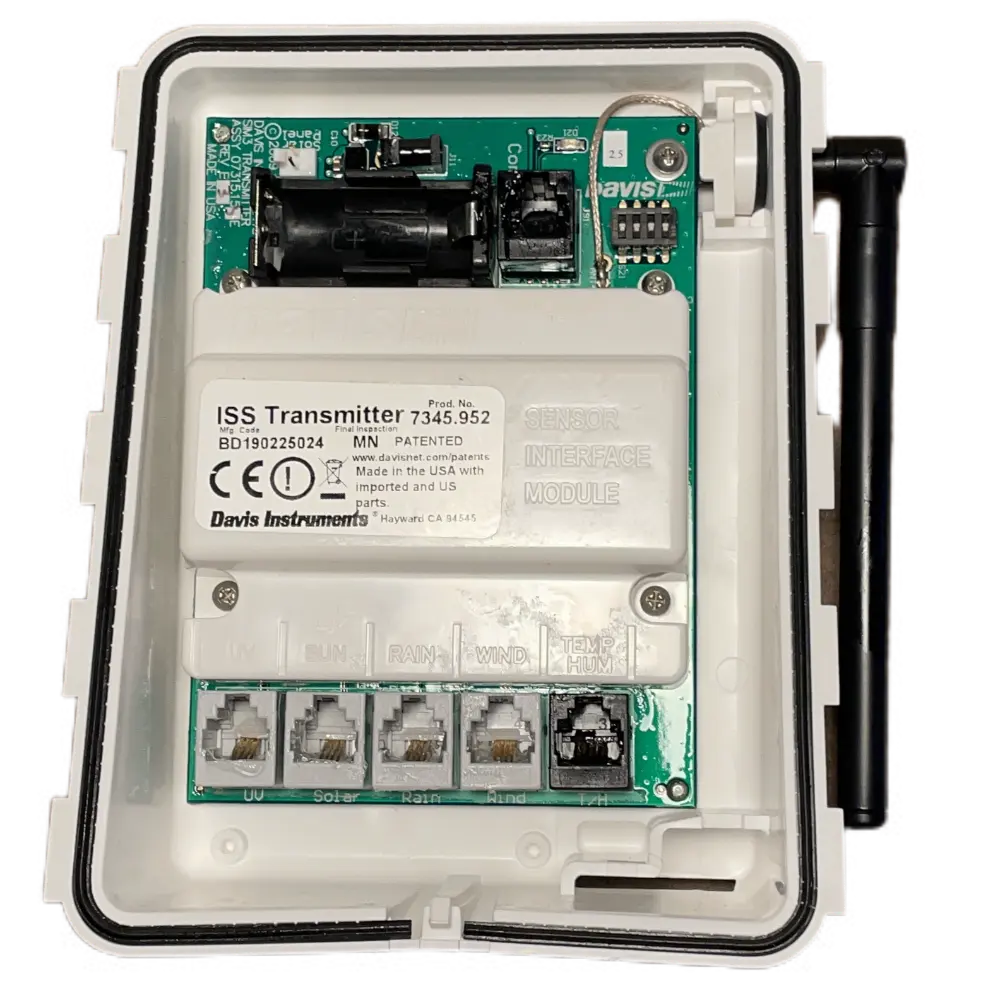

Davis Vantage Pro2 Wireless ISS Transmitter with the rear plastic case and connected antenna, showing the electronic components and connectors.

Davis Vantage Pro2 Wireless ISS Transmitter 7345.952

Name: Davis Vantage Pro2 Wireless ISS Transmitter 7345.952
Brand: Davis Instruments
SKU: DAV7345952
Availability: InStock
Rating: 5.0 (4 reviews)

Regular price: £370.00 GBP
Sale price: £370.00 GBP
Regular price

UK VAT included. Shipping calculated at checkout.

Replacement Wireless Vantage Pro2 ISS PCB which includes the rear plastic case and connected antenna. Wireless model for use within the UK and European Union suitable for all models of Pro2 and a number of external sensor transmitters that have the 5 sensor connectors. The UK/EU wireless models include a CE logo printed on the information plate as shown in the product images.

In January 2016 a revision was made to the PCB to support the latest high accuracy temperature / humidity sensor. If this transmitter is used to send temperature data from a unit manufactured before 1st January 2016 a small offset of 0.5C will need to be applied at the console - full details below video.

White internal descriptions may vary, but a suitable replacement PCBA (printed circuit board assembly) for wireless Vantage Pro2 or Vantage Pro2 Plus Integrated Sensor Suites, Wireless Temperature Station, Wireless Temperature/Humidity Station and for Anemometer Transmitter Kit. Ensure that the transmitter label has a CE printer logo for compatibility or console has an EU, UK or OV suffix after the 4 number product ID.

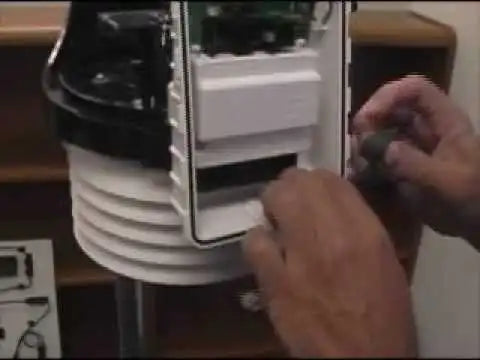

An installation video from Davis can be found in the product gallery.

If you are replacing a December 2015 or earlier transmitter with this unit and are using a temperature sensor also from before December 2015 you will need to make an offset adjustment on the Davis console increasing the temperature reading by 0.5C (0.9F) to prevent a lower than expected value.

To identify the age of your transmitter. Check the manufacturing code on the transmitter white panel above the sensor connectors. This will consist of 1 or 2 letters followed by 6 numbers. The number format is YYMMDD, so a transmitter with 120213 would be 13th February 2012. On transmitters before 2011 a single digit was used YMMDD.

Technical

Operating Temperature: -40¡ to +150¡F (-40¡ to +65¡C)
Battery Life (3-Volt Lithium cell): 8 months without sunlight - greater than 2 years depending on solar charging at installed location
CR123A 3V disposable Lithium battery required (available separately)
Connectors, Sensor: Modular RJ-11 Wind / Rain / Temp / UV / Solar
Housing Material: UV-resistant ABS, ASA plastic
Transmit Frequency: 868.0 - 868.6 MHz FHSS (European)
ID Codes Available: 8
Range: Line of Sight up to 1000 feet (300 m)

Region & Frequency:

Product variants:

Davis Vantage Pro2 Wireless ISS Transmitter 7345.952
