Davis Vantage Pro2 Cabled sensor suite PCB after 2015 (7345.950)

Manufacturer Davis Instruments

Available

Replacement Cabled Vantage Pro2 Integrated Sensor Suite (ISS) PCB which includes the rear plastic mounting case. Works globally - not country specific.  Suitable for all sensor suites manufactured after January 2016...
£210.00 £130.00


Ask a Question

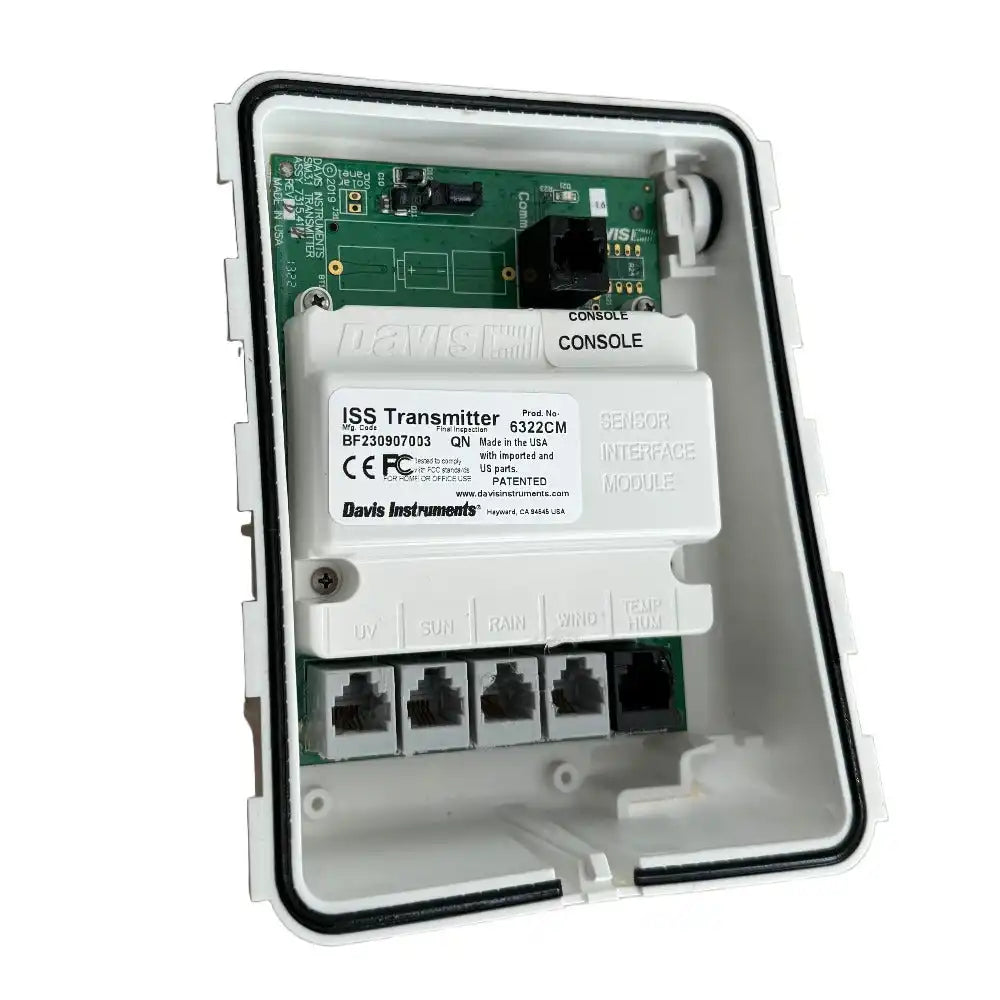

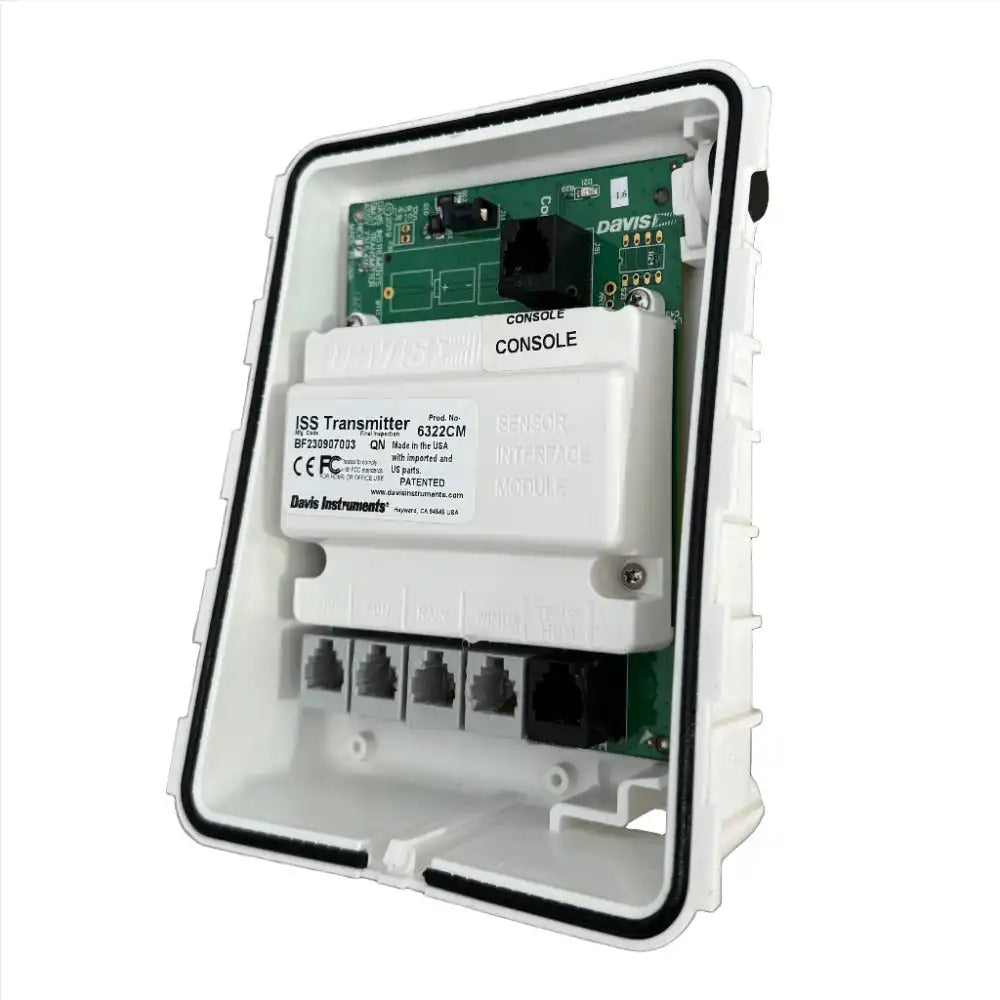

Replacement Cabled Vantage Pro2 Integrated Sensor Suite (ISS) PCB which includes the rear plastic mounting case. Works globally - not country specific.

Suitable for all sensor suites manufactured after January 2016 (see Mfg code on existing ISS label).

  • Operating Temperature: -40C to +65C (-40F to +150F)
  • Sensor Connectors Modular RJ-11 for Wind / Rain / Temp / UV / Solar
  • Housing Material: UV-resistant ABS, ASA plastic
  • Cabled ISS unit, powered from console

Using a post December 2015 transmitter with your original temperature / humidity sensor will result in the temperature reading 0.5C (0.9F) low. To counteract this error a calibration offset should be applied in the console to increase the temperature by 0.5C (see page 26 of your console manual for calibration details).

If you are using a new temperature and humidity sensor then no offset is required.
