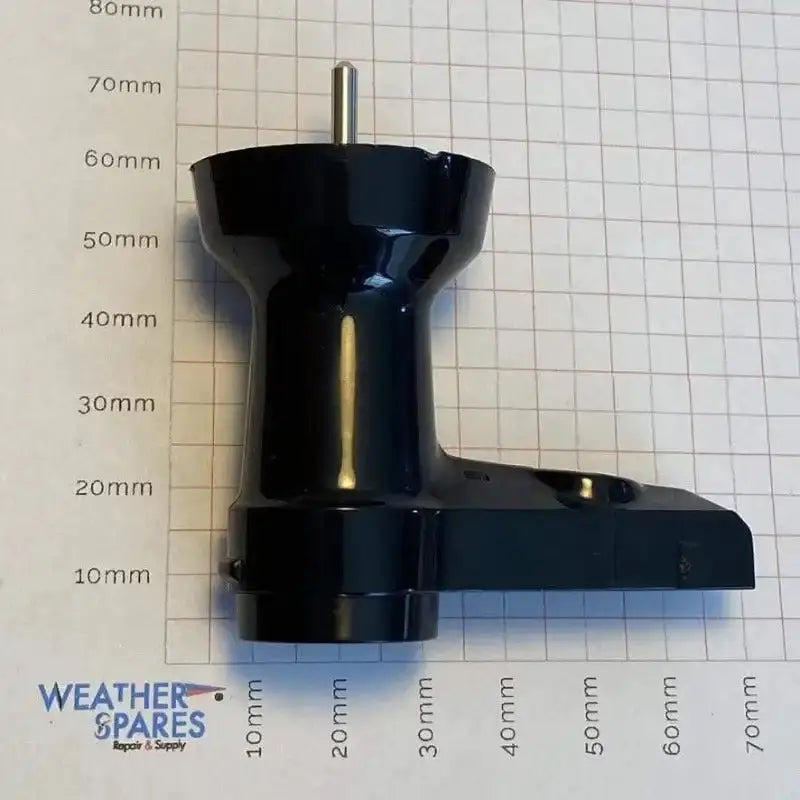

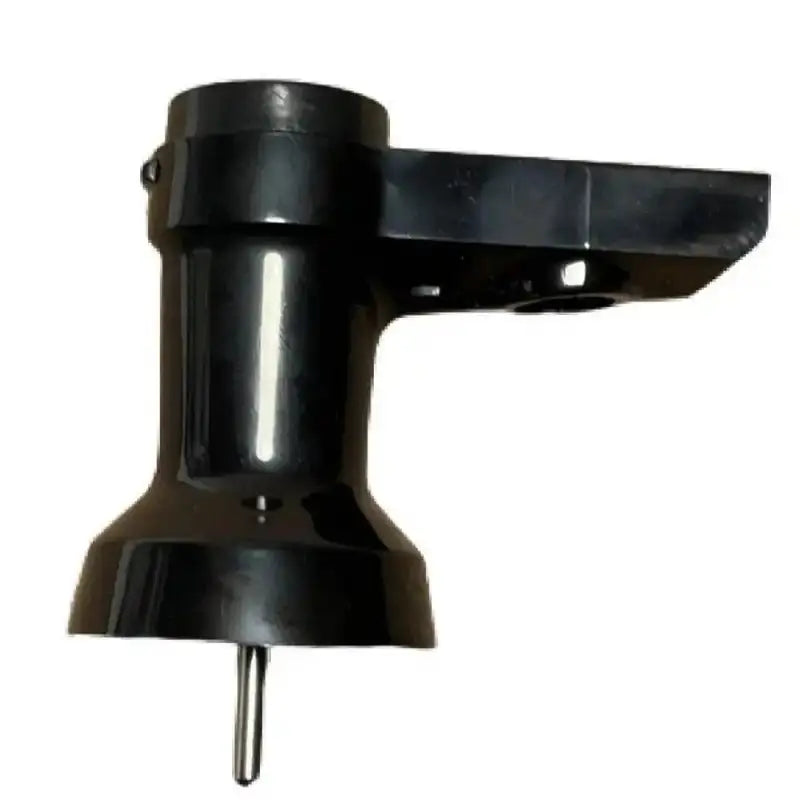

Davis Standard Anemometer Wind Speed Cartridge 7345.953

Regular price: £56.00 GBP
Sale price: £56.00 GBP
Regular price

UK VAT included. Shipping calculated at checkout.

10 reviews

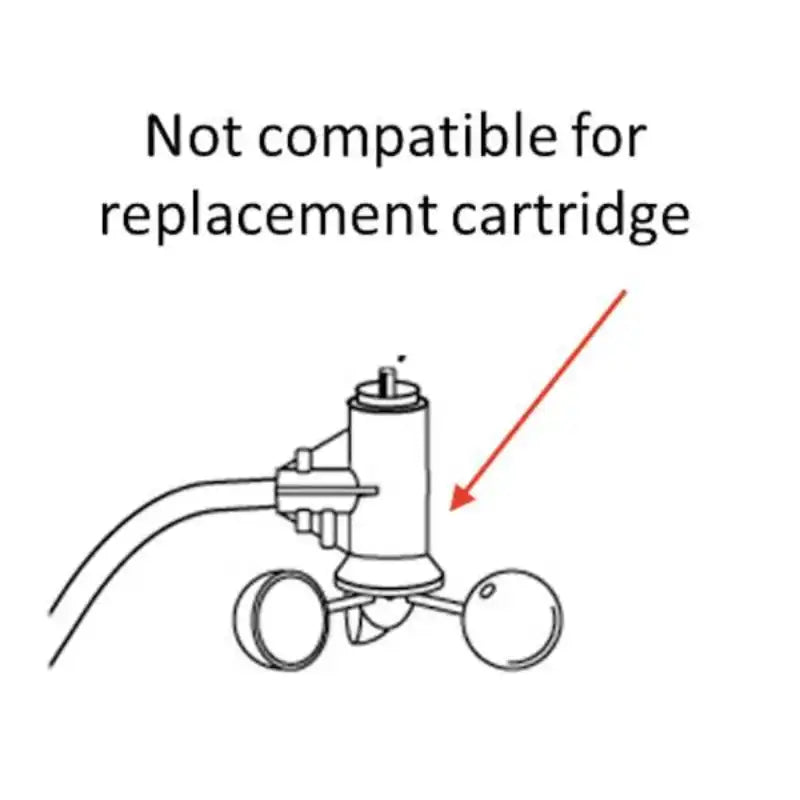

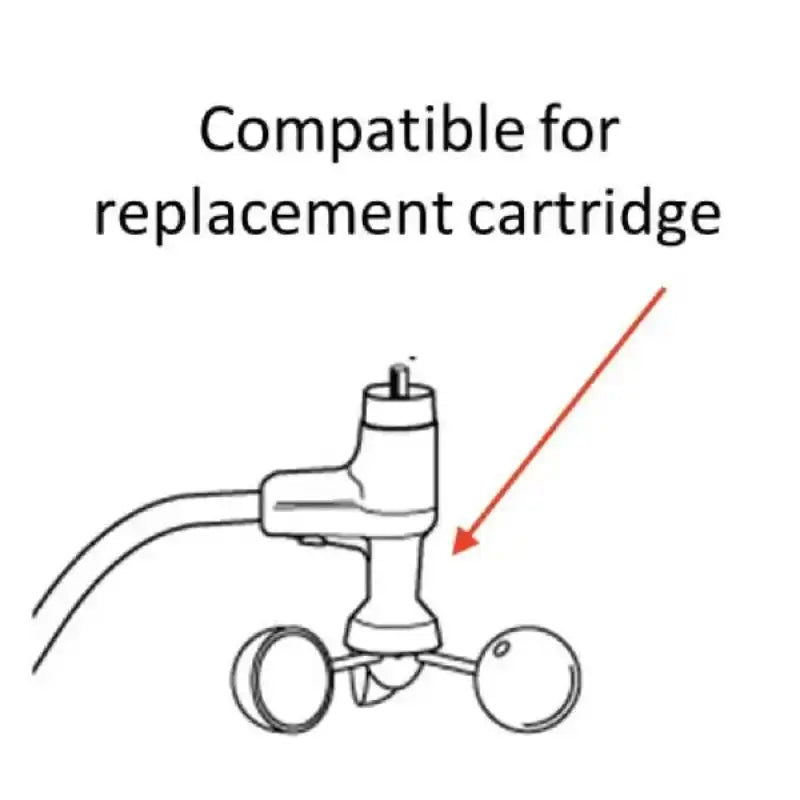

This is a replacement commercial grade wind speed cartridge for the standard anemometer manufactured after 2013 which includes a bearings set and is compatible with anemometers that an hour glass shaped body (see photo)

A cost effective replacement for an anemometer that has had extensive use and worn wind speed bearings making the wind cups jam or become stiff.

How to install

Move the anemometer to a safe working level if necessary noting its orientation before removal.
Locate the hex bolt on the side of the wind cups, unless these are missing, and loosen. There is no need to fully remove the hex bolt.
Pull the cups straight down to remove.
Locate the large black cross head screw on the existing cartridge and fully remove.
Whilst keeping the top section of the anemometer head held in place install the new cartridge and screw into position.
Replace the wind cups onto the shaft. There is no correct orientation.
Tighten the wind cups using the hex bolt on the side until this grips the metal shaft. A gentle pull up will ensure they are secure.
Test by spinning and checking a reading registers.
Return the sensor suite to its original location and orientation.

If you have lost your Allen key to remove the hex bolt, these are available as a spare item.

{"id":20218085277792,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"DAV7802090","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Davis 0.05\" Allen Key \/ Hex Key 7802.090","public_title":null,"options":["Default Title"],"price":300,"weight":10,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Davis 0.05" Allen Key / Hex Key 7802.090 Weather Spares

include an allen key for installation £3.00 ⓘ

A direct replacement for the Davis Instruments Allen key originally supplied with your weather station or anemometer.

Quantity

Customer Reviews

Based on 10 reviews

Write a review

100%

(10)

(0)

Padraig

Working perfect. Great experience ordering from Weather Spares, quick and efficient even to anotjer jurisdiction.

Graeme H.

Great Service and Easy to Change

Our Davis weather station stopped reporting low wind speeds and I suspect gusts were being under recorded. The original cartridge clearly needed replacing.
Ordered this cartridge online and delivery was very prompt.
The cartridge is secured by one screw and easily removed. The new one is different in that the part housing the magnet is now sealed, a big improvement. Comparing the spindles the new one was silky smooth whereas the old one grated.
Apart from the time spent accessing the weather station the whole job took no more than 15 minutes.

David B.

They don't last for ever

I should have really replaced this before now. I purchased the weather station nearly 8 years ago and I noticed that the readings were low about a year ago. The replaced bearings now means that l record light zephyrs! Good service by Weather's pares at a competitive price.
