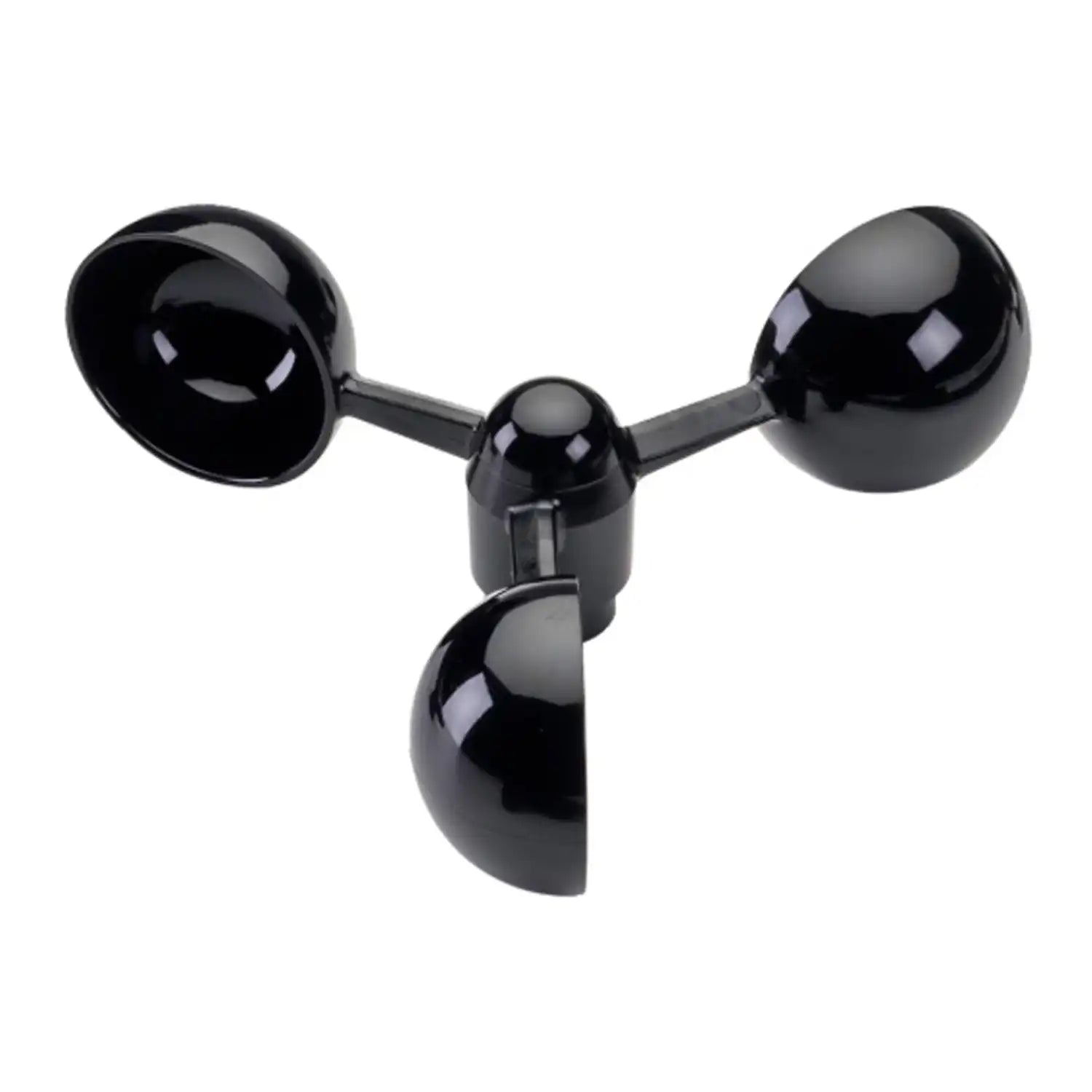

Davis Standard Anemometer Wind Cups 7905L
-
Regular price
-
£34.00 GBP
-
Sale price
-
£34.00 GBP
-
Regular price
-
- Unit price
-
/
per
UK VAT included.
Shipping calculated at checkout.
Suitable for all Davis anemometer models from 2003 including the revised model from 2013.
Simple fixing to the metal wind speed sensor shaft using your existing Allen key, available separately if required.
How to install
- Move the sensor suite to a safe working level if necessary noting it's orientation before removal.
- Locate the hex bolt on the side of the existing wind cups, unless these are missing, and loosen. There is no need to fully remove the hex bolt.
- Pull the cups straight up to remove.
- Ensure the hex bolt on the new cups is loosened enough that these can be pushed onto the shaft. There is no correct orientation.
- Tighten the wind cups using the hex bolt on the side until this grips the metal shaft. A gentle pull up will ensure they are secure.
- Test by spinning and checking a reading registers.
- Return the sensor suite to its original location and orientation.
If you have lost your Allen key to remove the hex bolt, these are available as a spare item.
