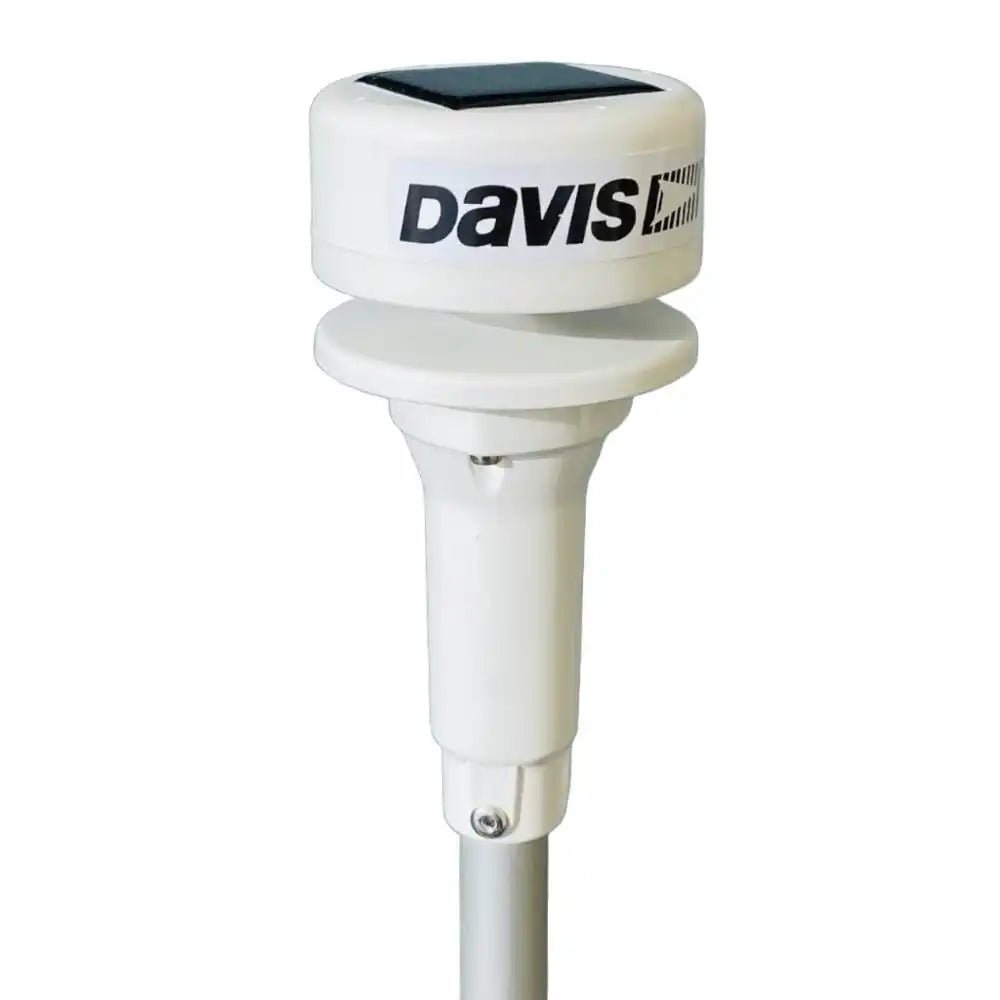

Davis Pro2 / EnviroMonitor Sonic Anemometer (6415)

Manufacturer Davis Instruments

Unavailable

The Ultrasonic Anemometer is designed to measure wind‐related conditions without moving parts. Pairs of electro‐acoustic transducers in the anemometer send sonic pulses back and forth, and measure the time it...
£490.00


The Ultrasonic Anemometer is designed to measure wind‐related conditions without moving parts.

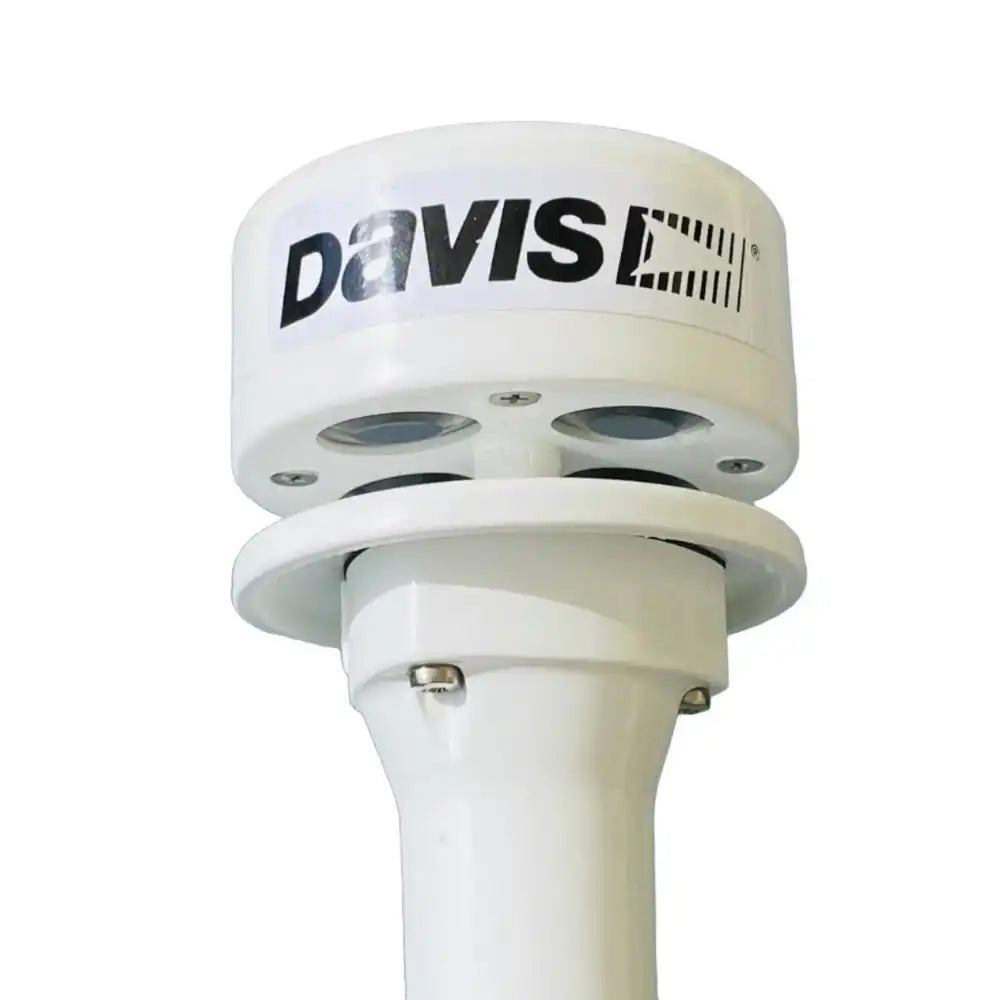

Pairs of electro‐acoustic transducers in the anemometer send sonic pulses back and forth, and measure the time it takes for the pulse to travel from one to the other. This time is affected by the movement of the air, which allows the anemometer to calculate wind speed and direction, calibrated by temperature measurements.

The sonic anemometer has its own solar panel, so requires no external power. It can be used with an EnviroMonitor® Node to add wind data to an EnviroMonitor system, as well as a replacement anemometer to your Davis weather station. Installed in a Sensor Transmitter, it can be used to include additional wind stations in your existing system when reporting to a WeatherLink Live.

Specifications

  • Wind speed range: 0 to 89 mph, 0 to 78 knots, 0 to 40 m/s, 0 to 144 km/h
  • Wind direction: 16 compass points
  • 12 meter cable supplied (extendable up to 76m)
